Festo 6211 AIR Solenoid Valve With Coil
Used
In stock1 unitReady to ship
Air Solenoid Valve
Festo MFH-5-1/4 air solenoid valve with 5/2 monostable function, high flow rate, and die-cast aluminum body, supplied with matching Festo solenoid coil.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

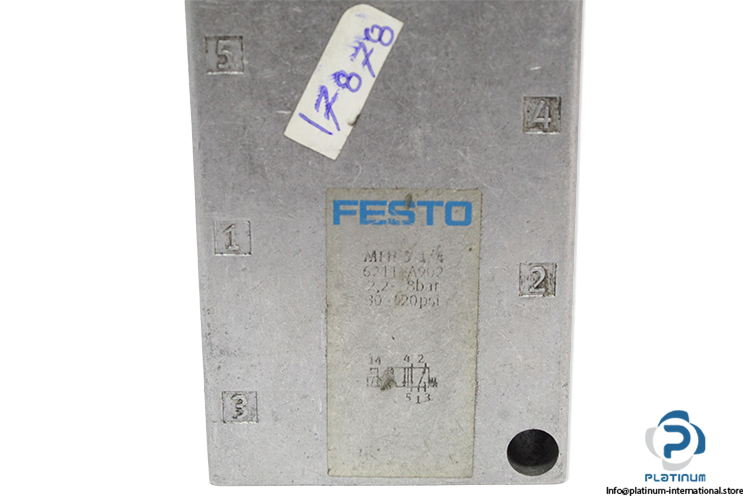

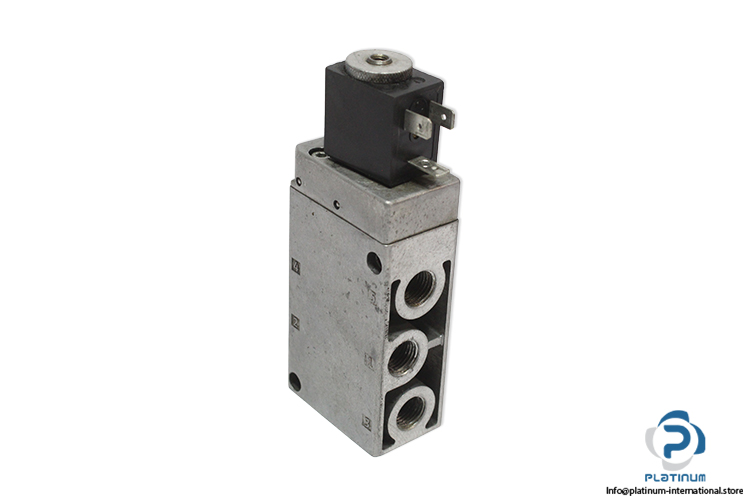

Festo MFH-5-1/4 Air Solenoid Valve with Coil
The Festo MFH-5-1/4 is an electrically actuated air solenoid valve designed for reliable pneumatic control in industrial systems. It features a 5/2 monostable valve function with high flow capacity and a durable die-cast aluminum body. The valve is supplied with a compatible Festo solenoid coil for dependable operation.
Manufacturer: Festo
Type: Air Solenoid Valve with Coil
Model: MFH-5-1/4
Part No.: 6211
Port Size:

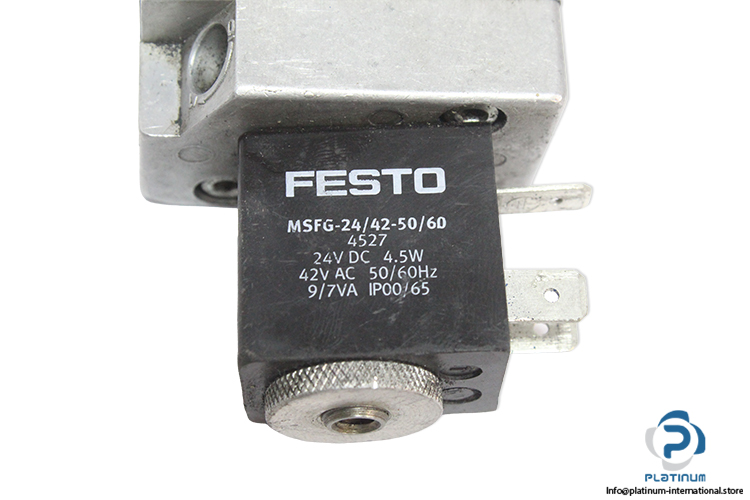

Solenoid Coil Information
| Type of Actuation | Electrically |
| Width | 30.5 mm |
| Operating Pressure | 2.2 bar to 8 bar |
| Fluid | Air |
| Valve Function | 5/2, Monostable |
| Flow Rate | 1000 l/min |
| Design | Plate Seat |
| Ambient Temperature | -5 to 40 °C |
| Ports 1-2-3-4-5 | G 1/4 |
| Pilot Exhaust Air Port 84 | M5 |
| Material | Die-Cast Aluminum |
| Attachment | Festo Solenoid Coil |
| Part No. | 4527 |
| Voltage | 24 V DC / 42 V AC |
| Power | 4.5 W / 9“7 VA |
| Frequency | 50 / 60 Hz |
