Festo 6308 ONE-WAY Flow Control Valve
New
In stock1 unitReady to ship
One-Way Flow Control Valve
The Festo GR-3/8-B One-Way Flow Control Valve is a pneumatically actuated valve designed for precise **compressed air control** with flow rates of **1010 l/min** and **1150 l/min** in the respective directions. Featuring a **G 3/8 female thread port size**, it operates within a **0.1 to 10 bar** pressure range.0.11010101150203/8ActuatedAirAmbientbarBlockedCompressedControlDirectionFemaleFestoflowGGR-3/8-Bl/minNominalOne-WayOperatingPneumaticallyPortPressureRateSizeTemperatureThreadValve
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

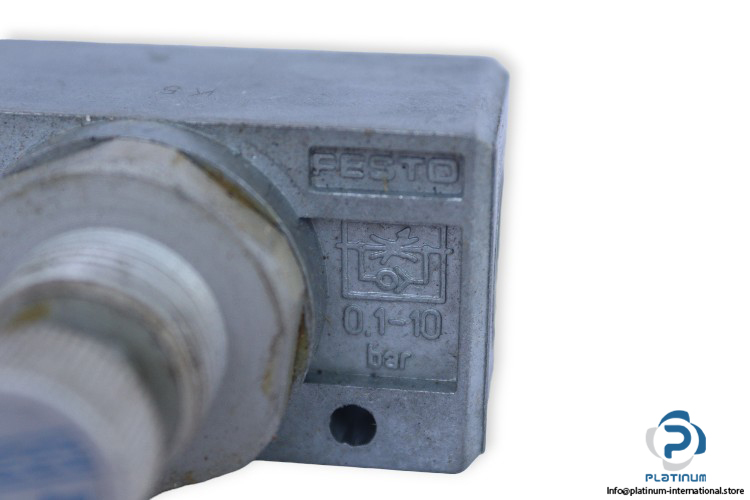

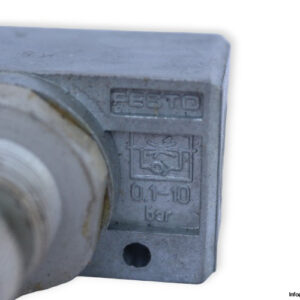

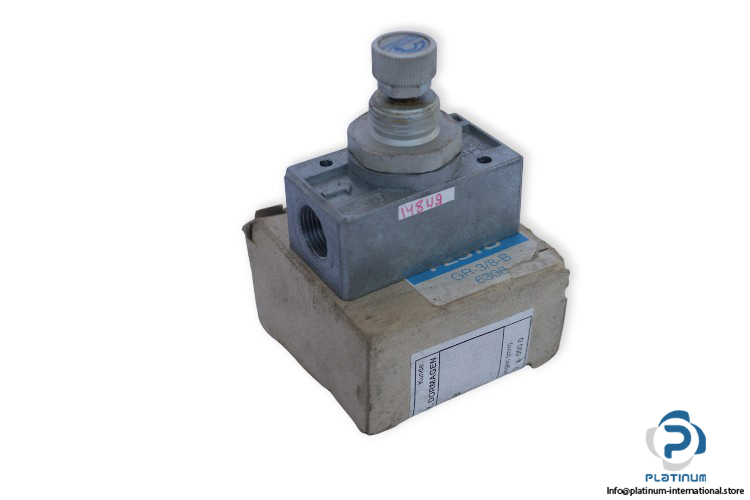

Festo GR-3/8-B One-Way Flow Control Valve
The Festo GR38B One-Way Flow Control Valve is designed for precise control of compressed air in pneumatic systems. Featuring pneumatically actuated operation, it provides high flow rates in both directions and is built for durability, with an operating pressure range of 0.1 to 10 bar.
Manufacturer: FESTO
Type: One-Way Flow Control Valve
Model: GR-3/8-B
Part No.: 6308
| Fluid | Compressed Air |
| Actuation Type | Pneumatically |
| Operating Pressure | 0.1 ... 10 bar / 0.01 ... 1 MPa |
| Nominal Flow Rate in Flow Control Direction | 1010 l/min |
| Nominal Flow Rate in Blocked Direction | 1150 l/min |
| Port Size | G 3/8 Female Thread |
| Ambient Temperature | -20 / 75 °C |
