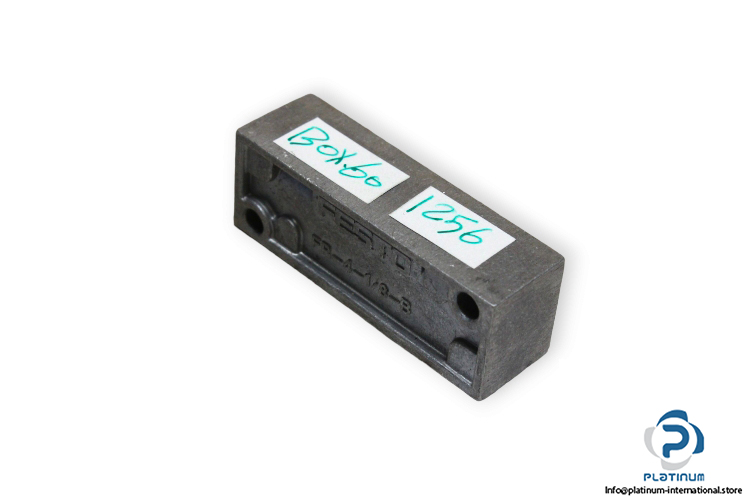

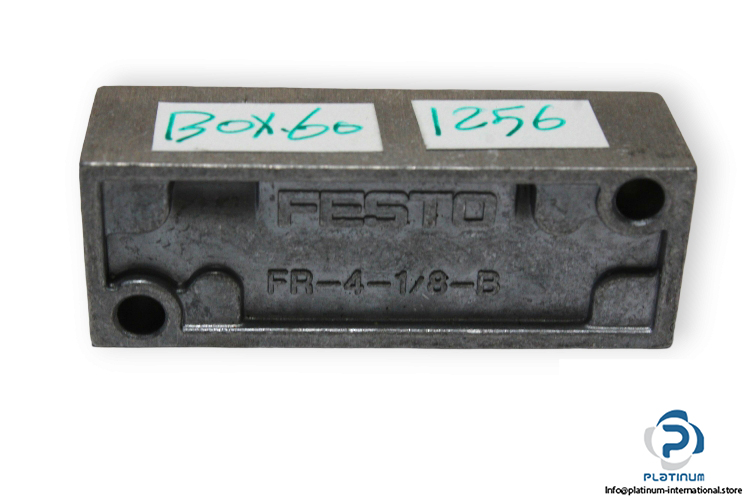

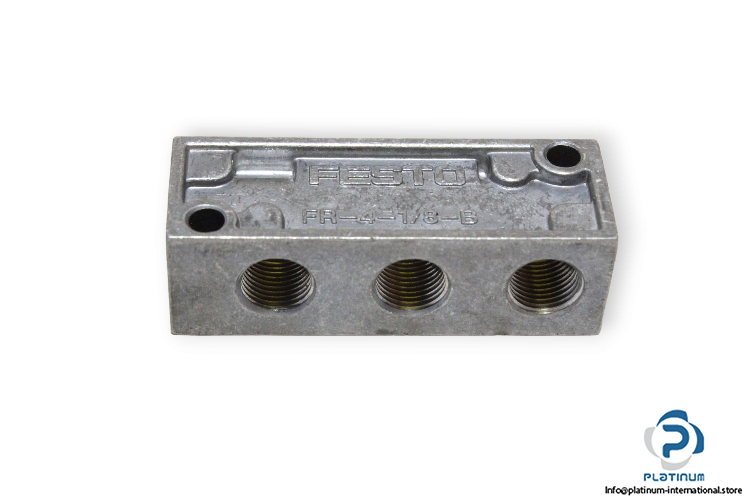

Festo 6701 Distributor Block

Manufacturer: FESTO
Type: Distributor block
Model: FR-4-1/8-B
Part No.: 6701

Nominal size: 8.6 mm
Mounting position: optional
Operating pressure complete temperature range: 0 bar … 16 bar
Operating medium: Compressed air
Ambient Temperature: -10 … 80 °C
Number of outputs: 3
Number of supply lines: 1
Pneumatic connection, port 1 Female thread: G1/8
Pneumatic connection, port 2 Female thread: G1/8
Material housing: Die-cast aluminium
