Festo 6809 Stem Actuated Valve
New
Available on request
Stem Actuated Valve
FESTO Stem Actuated Valve V-5-1/4 B is designed for controlling air fluid with mechanical actuation. It features a 550 l/min nominal flow rate, operating pressure of -0.95 to 10 bar, and durable die-cast aluminum construction for reliable performance in industrial applications.0.951/410182550ActuatedActuationAirAluminumBbarControldie-castFestoflowFluidForceGIndustriall/minMechanicalNNominalOperatingPortPressureRateSizeStemtoV-5-1/4Valve
Used
In stock
This product is also available used
View Used Version →
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

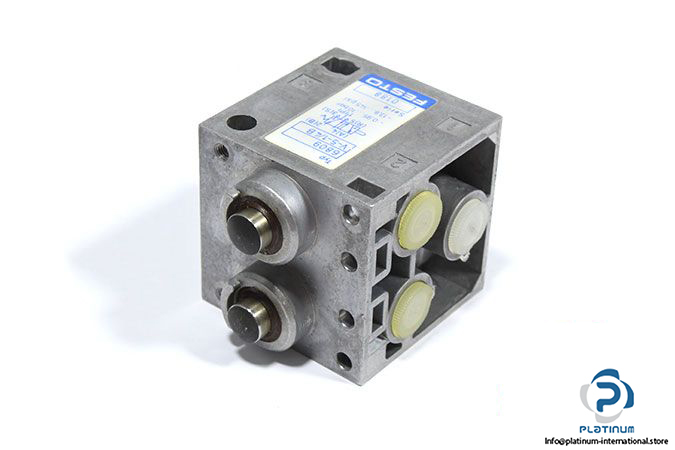

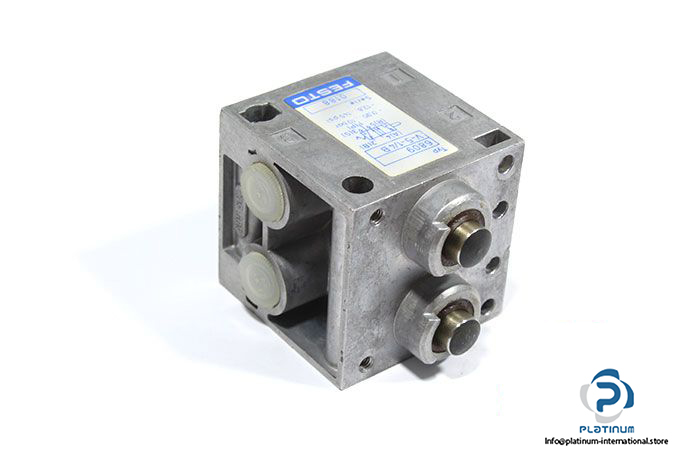

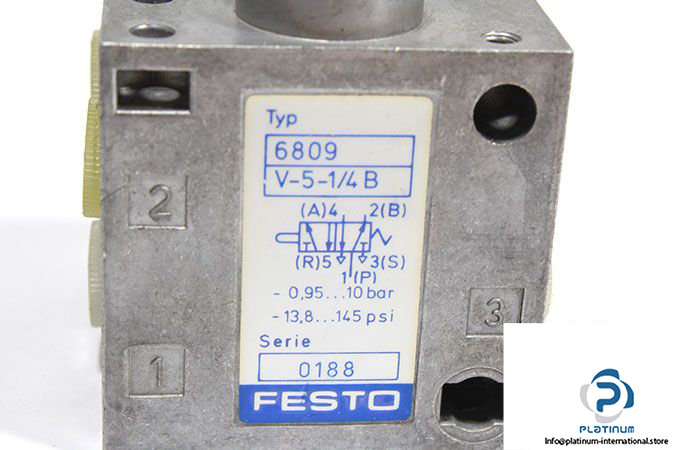

FESTO Stem Actuated Valve V-5-1/4 B
The FESTO Stem Actuated Valve V-5-1/4 B is a highly reliable valve designed for controlling air fluid with mechanical actuation. This valve is constructed from durable die-cast aluminum, ensuring optimal performance and longevity even under varying operating conditions.
Manufacturer: FESTO
Type: Stem Actuated Valve
Model: V51/4B
Part No.: 6809
Technical Specifications
- Fluid: Air
- Actuation Type: Mechanical
- Standard Nominal Flow Rate: 550 l/min
- Operating Pressure: -0.95 / 10 bar
- Actuating Force: 182 N
- Port Size: G 1/4
- Material: Die-Cast Aluminum
- Nominal Width: 7 mm
- Ambient Temperature: -10 / 60 °C
