Festo 6817 Front Panel Valve With Selector Switch
Used
Available on request
FRONT PANEL VALVE
FESTO SV-3-M5 manual front panel valve, 3/2-way monostable with spring-return poppet design for air systems, up to 8 bar pressure.3/2-wayAirbrassconnectionControlFestoFrontIndustrialM5ManualMonostablePanelPneumaticPolymerPoppetSV-3-M5Valve
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

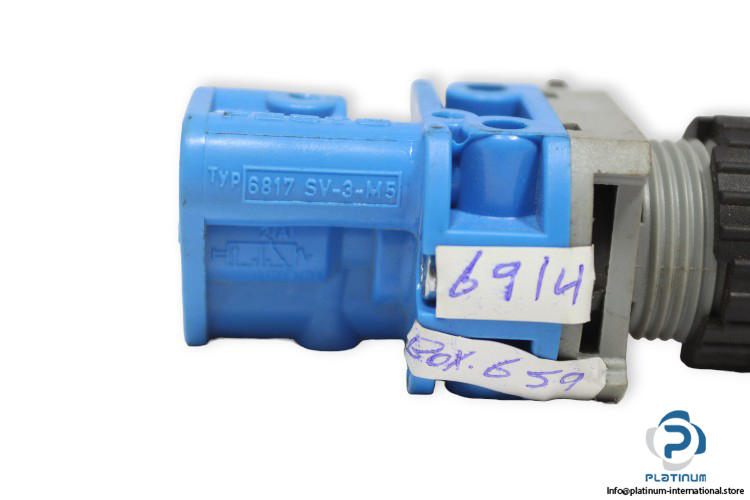

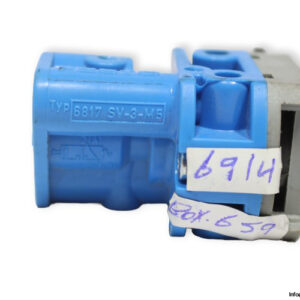

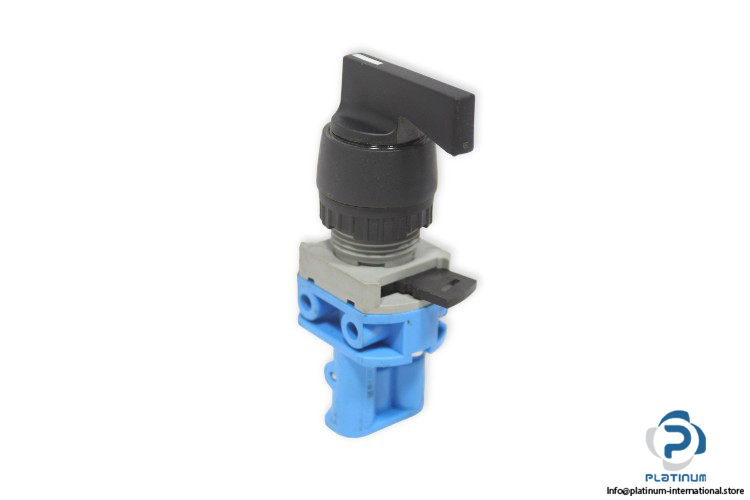

FESTO SV-3-M5 FRONT PANEL VALVE
The FESTO SV3M5 is a reliable front panel valve designed for manual actuation in pneumatic control systems. Featuring a 3/2-way closed, monostable function and a spring-return poppet valve design, this compact unit ensures precise and responsive control for compressed air applications.
Manufacturer: FESTO
Type: Front Panel Valve
Model: SV-3-M5
Part No.: 6817
| Fluid | Air |
| Design | Poppet valve with spring return |
| Function | 3/2-way, closed, monostable |
| Type of Actuation | Manually |
| Operating Pressure | -0.95 ... 8 bar |
| Nominal Flow Rate | 65 l/min |
| Actuating Force | 12 N |
| Pneumatic Connection | M5 |
| Material | Polymer, Brass |
| Ambient Temperature | -10 / 60 °C |
