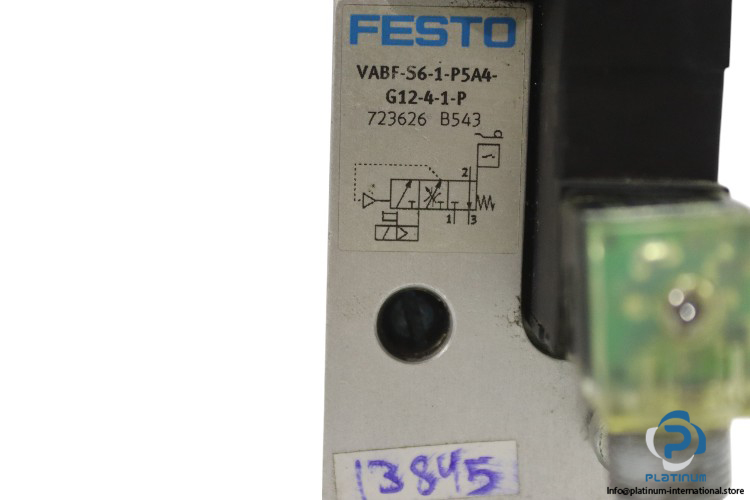

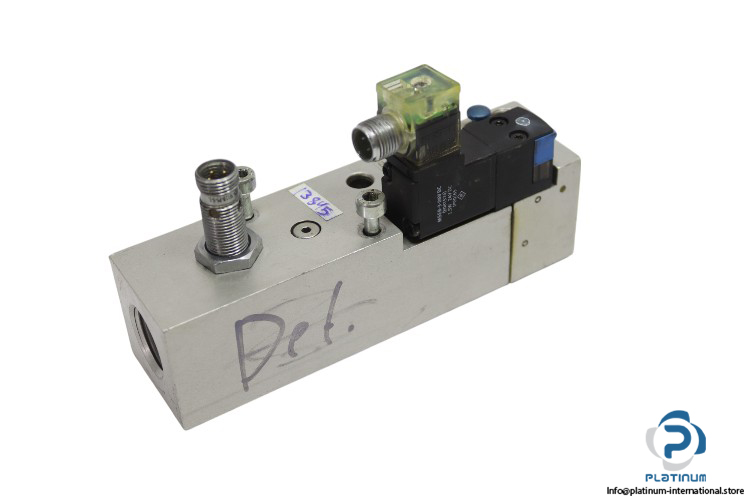

Festo VABF-S6-1-P5A4-G12-4-1-P Soft Start Valve with Solenoid Coil and Inductive Proximity Sensor
The Festo VABF-S6-1-P5A4-G12-4-1-P Soft Start Valve is a key component for controlling airflow and providing smooth operation in pneumatic systems. Paired with the **Festo MSEB-3-24 V DC Solenoid Coil** and the **Festo SIEN-M12B-PS-S-L Inductive Proximity Sensor**, this set ensures precise control and reliable performance in industrial automation applications.
Manufacturer: FESTO
Type: Soft Start Valve
Model: VABF-S6-1-P5A4-G12-4-1-P
Part No.: 723626
Technical Data – Soft Start Valve:
- Pneumatic Connection: G1/2
- Attached with: FESTO 8081524 SOLENOID COIL

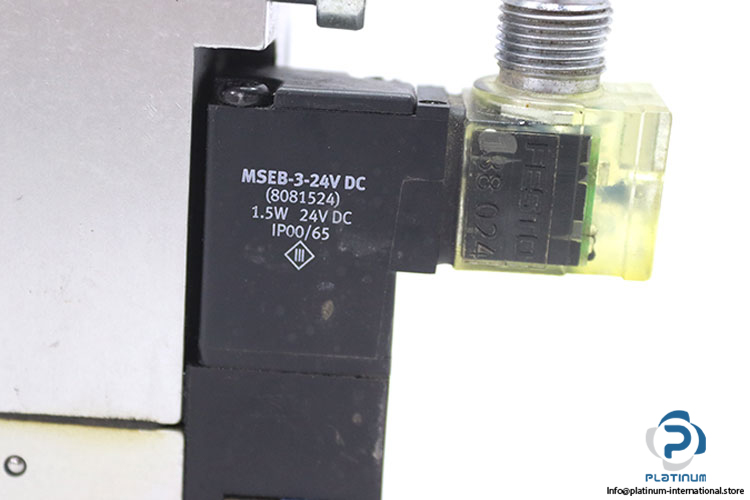

Technical Data – Solenoid Coil:
- Voltage: 24 V DC
- Power: 1.5 W
- Attached with: FESTO SIEN-M12B-PS-S-L Inductive Proximity Sensor

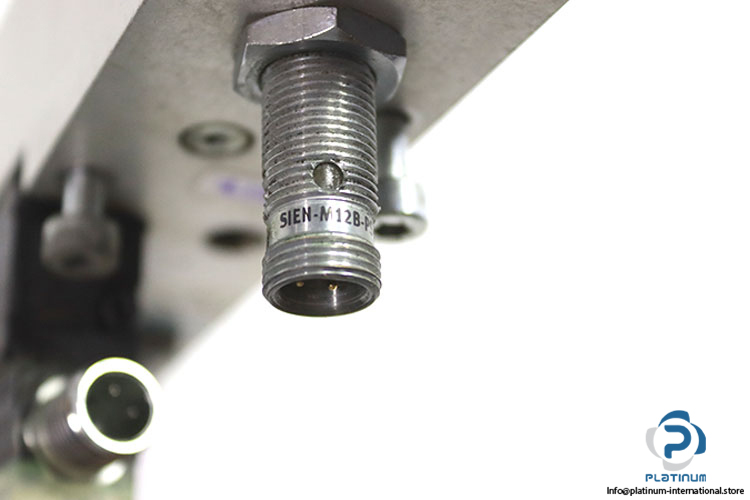

Technical Data – Inductive Proximity Sensor:
- Rated Operating Distance: 2 mm
- Operating Voltage: 10 / 30 V DC
- Output Current: 200 mA
- Switching Frequency: 3000 Hz
- Electrical Design: PNP
- Switching Output: Normally open
- Connector Type: M12 Connector, 3-pin
- Enclosure Rating: IP65, IP67
- Ambient Operating Temperature: -5 / 70°C
- Diameter, Housing Length: 12 mm, 45 mm
- Housing Material: Brass, PBTP, Nickel plated
- Mounting: Flush mountable
- Supplied Items: 2 lock nuts
