Festo 752781 Intelligent Servo Motor
Used
In stock9 unitsReady to ship
222,22$
INTELLIGENT SERVO MOTOR
FESTO MTR-ECI-52S-EG14-R2CO-SA is a high-efficiency 24 VDC intelligent servo motor with magnetic encoder, 4.12 Nm torque, and IP54 protection. Supplied with a synchronous servo motor by Kählig Antriebstechnik.24VDCControlDriveEncoderFestoHighIntelligentIP54KähligMagneticMotionmotorMTR-ECI-52S-EG14-R2CO-SAServoSynchronousTorque
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

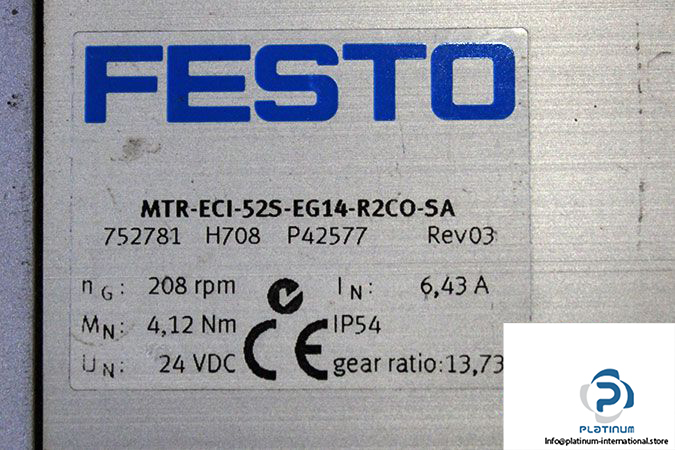

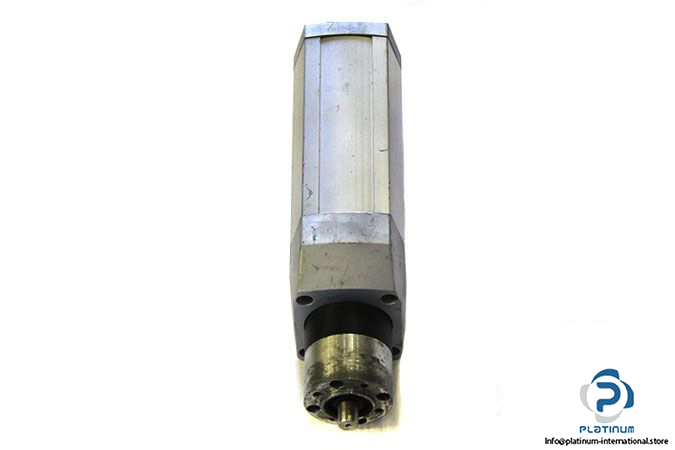

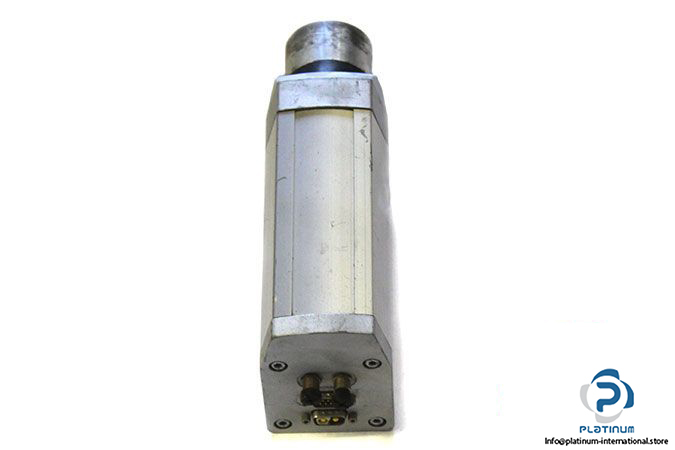

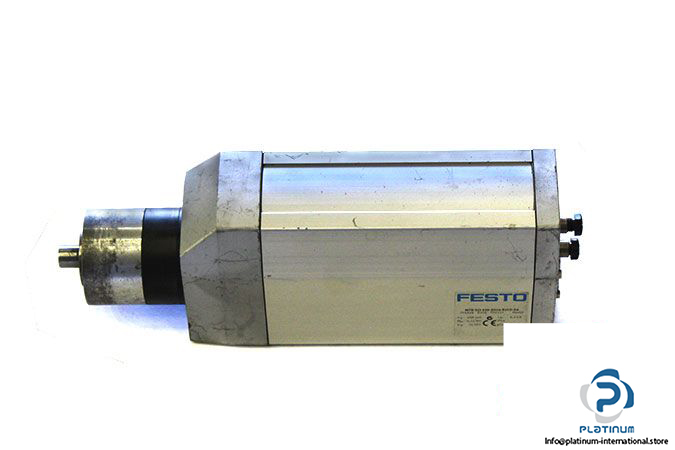

FESTO MTR-ECI-52S-EG14-R2CO-SA INTELLIGENT SERVO MOTOR
The FESTO MTR-ECI-52S-EG14-R2CO-SA is an advanced intelligent servo motor designed for high-precision motion control in industrial automation. Equipped with a magnetic absolute encoder and robust IP54 protection, it offers exceptional performance and reliability for dynamic applications.
Manufacturer: Festo
Type: Intelligent Servo Motor
Model: MTR-ECI-52S-EG14-R2CO-SA
Part No.: 752781
Ref No.: H708 / P42577 / REV03
| Size | 52 |
| Nominal Voltage | 24 VDC |
| Nominal Current | 6.43 A |
| Peak Current | 15 A |
| Rated Speed | 208 rpm |
| Rated Torque | 4.12 Nm |
| Nominal Power | 125 W |
| Gear Ratio | 13.73 |
| Gearing Unit Output Speed | 290 rpm |
| Gearing Unit Output Torque | 3.08 Nm |
| Encoder Type | Magnetic Absolute Encoder (integrated) |
| Ambient Temperature | 0 / 40 °C |
| Material | Aluminum |
| Insulation Class | F |
| Protection Class | IP54 |

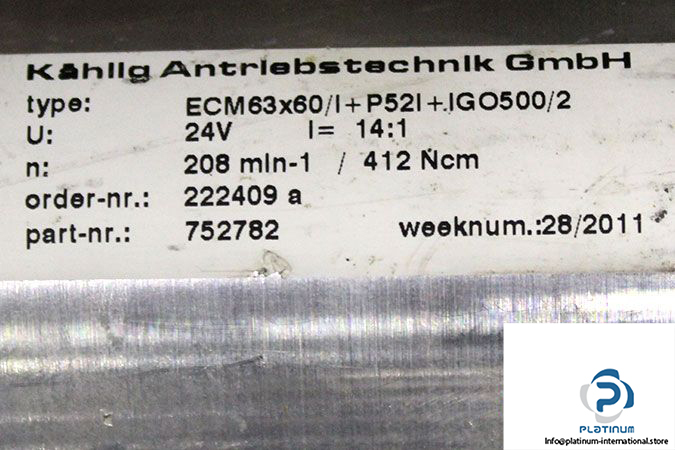

| Attachment | Synchronous Servo Motor |
| Part No. | 222409 a |
| Part No. | 752782 |
| Voltage | 24 VDC |
| Speed | 208 rpm |
| Torque | 412 Ncm |
| Ratio | 14:1 |
