Festo 9834 Round Cylinder
Used
In stock1 unitReady to ship
Round Cylinder
The Festo DGS-25-80-PPV is a 25 mm bore, 80 mm stroke round cylinder with a single-ended piston rod. Built for double-acting compressed air systems up to 12 bar and suitable for harsh temperature environments.2580ActingboreconnectionCylinderDGS-25-80-PPVDoubleFestoG1/8IndustrialmmPneumaticPneumaticsRoundStroke
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

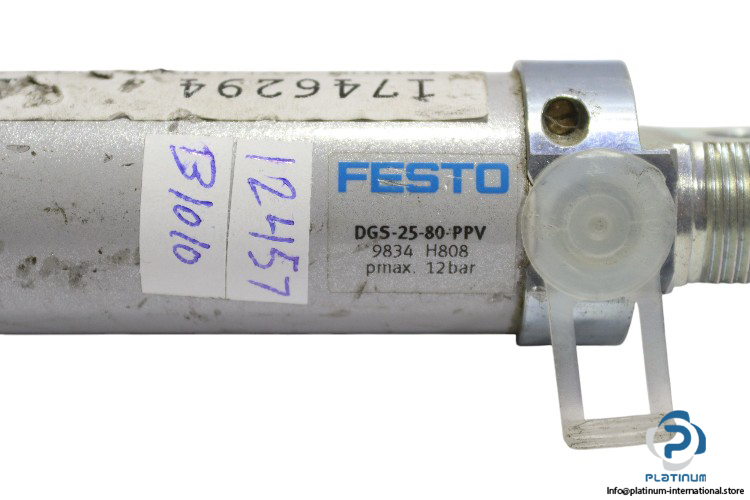

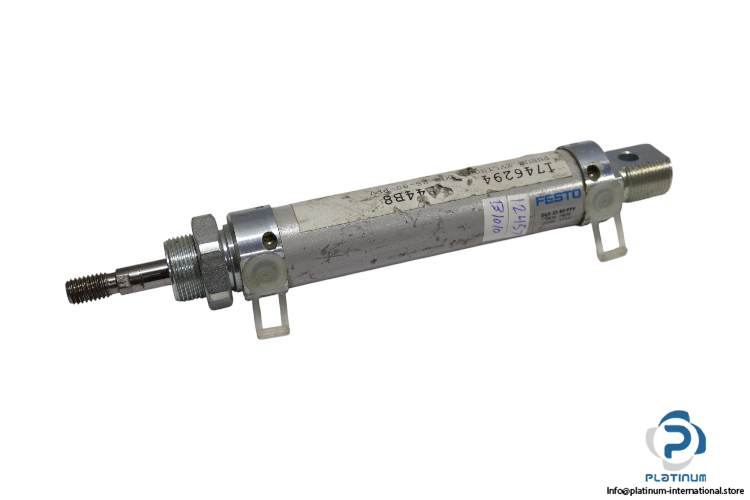

Festo DGS-25-80-PPV “ Round Cylinder
The Festo DGS-25-80-PPV is a high-quality double-acting round cylinder with a robust circular design. Engineered for industrial compressed air applications, it features an 80 mm stroke and a single-ended piston rod, ensuring reliable linear motion across a wide temperature range.
Manufacturer: Festo
Type: Round Cylinder
Model: DGS-25-80-PPV
Part No.: 9834
| Bore Diameter | 25 mm |
| Stroke | 80 mm |
| Variants | Single-ended piston rod |
| Operating Medium | Compressed air |
| Pneumatic Connection | G1/8 |
| Mode of Operation | Double-acting |
| Shape | Circular |
| Max. Operating Pressure | 12 bar |
| Ambient Temperature | -20 to 80 °C |
