Festo ADN-25-45-A-P-A Compact Cylinder
Used
In stock1 unitReady to ship
The FESTO Compact Cylinder (Model: ADN-25-45-A-P-A) features a 45 mm stroke, 25 mm piston diameter, double acting operation, and elastic cushioning. Max pressure: 10 bar. Pneumatic connection: 5 mm.
2545ActingAutomationCushioningCylinderdiameterDoubleElasticIndustrialmmPistonPneumaticProximitySensingStroke
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

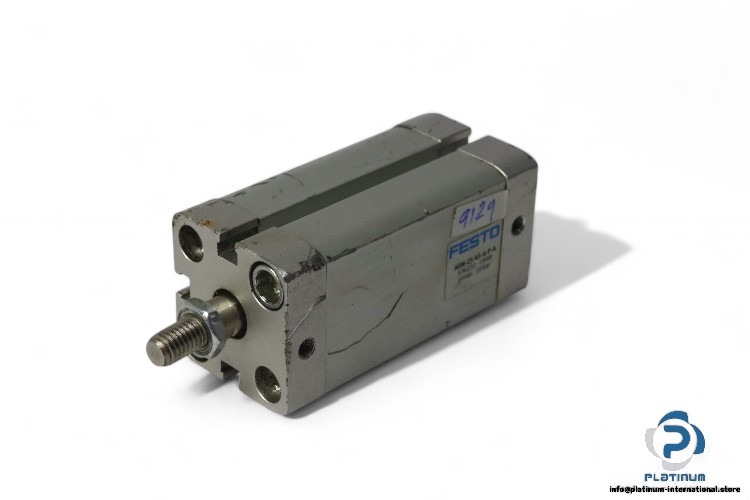

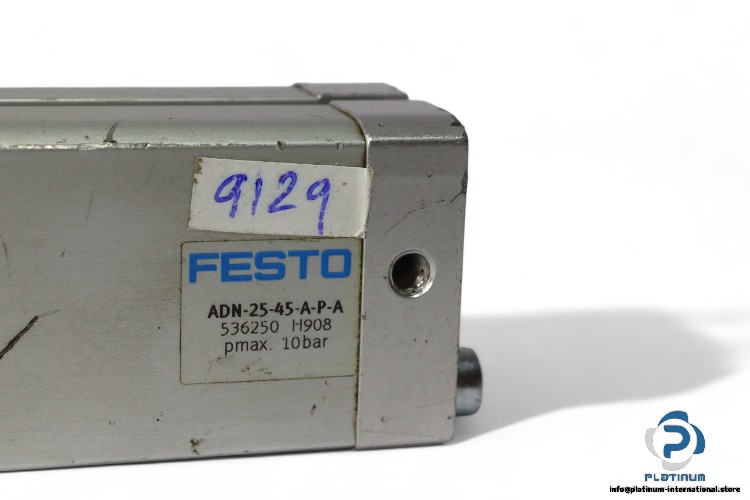

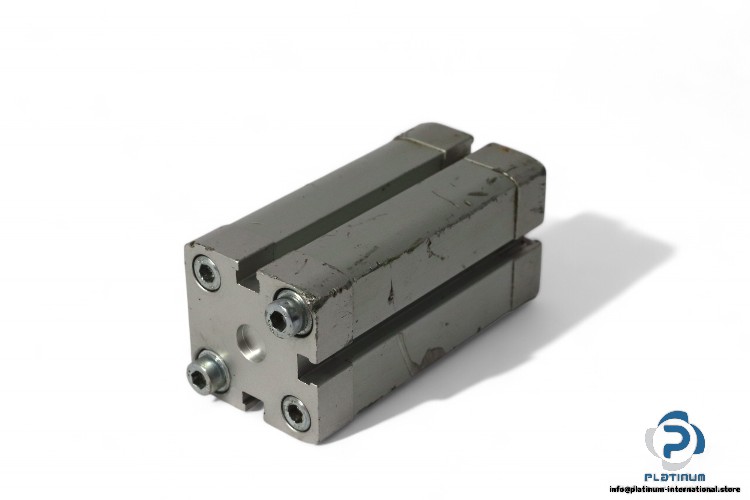

FESTO Compact Cylinder – Model ADN-25-45-A-P-A
The FESTO Compact Cylinder (Model: ADN-25-45-A-P-A, Part No.: 536250) is a compact and efficient pneumatic cylinder designed for versatile applications. It provides reliable performance with proximity sensing capabilities and elastic cushioning for smooth operation.
Technical Specifications:
- Stroke Length: 45 mm
- Piston Diameter: 25 mm
- Piston Rod Thread: Male
- Max. Operating Pressure: 10 bar
- Mode of Operation: Double acting
- Cushioning: Elastic cushioning rings/plates at both ends
- Position Sensing: For proximity sensing
- Pneumatic Connection: 5 mm
- Temperature Range: -20 to 80 °C
This compact cylinder is designed for demanding environments and applications requiring efficient and precise pneumatic actuation.
