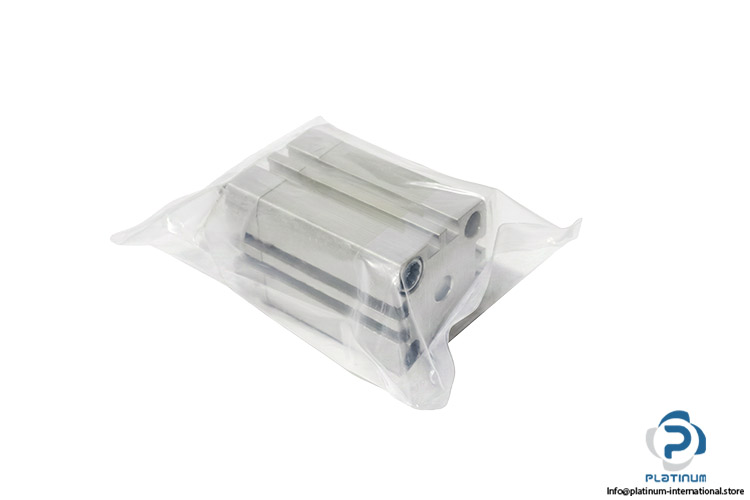

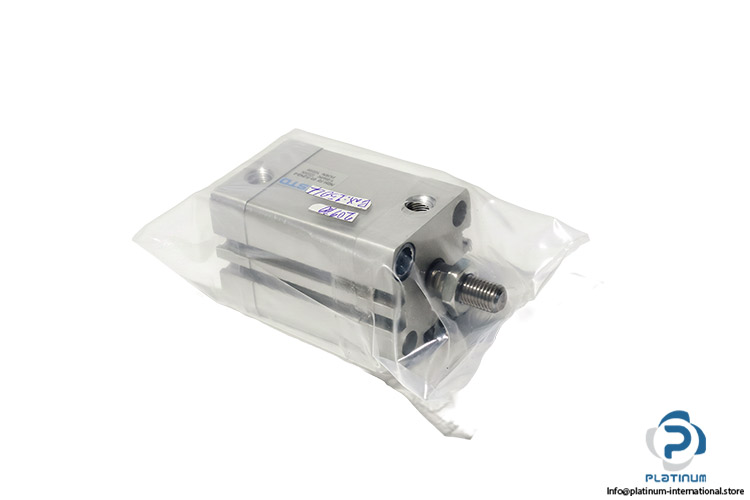

Festo ADN-32-30-A-P-A-F Compact Cylinder
New
In stock4 unitsReady to ship
Compact Cylinder Festo ADN series compact cylinder designed for precise pneumatic motion control, reliable double-acting operation, and efficient installation in industrial automation systems.
ActingActuatorADNAirAluminumAutomationCompactControlCylinderDoubleFestoIndustrialLinearMotionpnePneumaticPneumatics
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

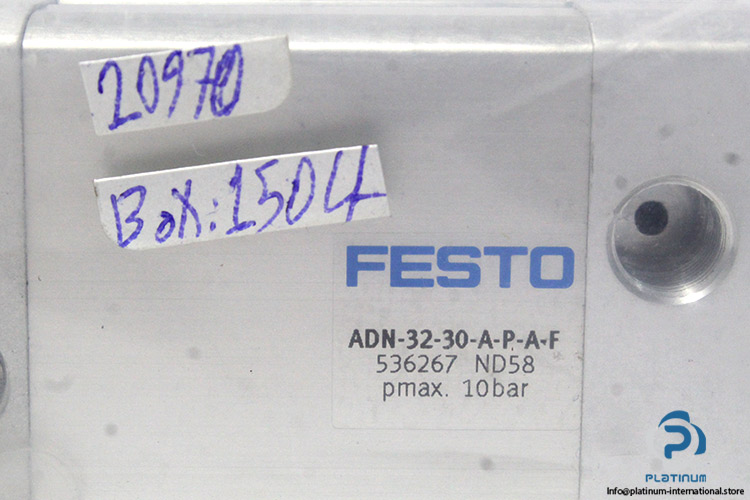

| Part No. | 536267 |
| Code | ND58 |
| Series | ADN |
| Fluid | Compressed Air |
| Stroke | 30 mm |
| Bore Size | 32 mm |
| Operating Mode | Double acting, Single rod |
| Cushion Type | Elastic cushioning rings/plates at both ends |
| Rod Direction | One Side |
| Piston Rod End | Male |
| Shape | Square |
| Operating pressure | max. 10 bar |
| Position sensing | For proximity sensor |
| Port size | G1/8 |
| Material cover | Wrought aluminum alloy |
| Material Piston Rod | High-alloy steel |
| Material of cylinder barrel | Smooth-anodized wrought aluminum alloy |
| Ambient temperature | -20 to 80°C |
| Condition | New |
| Stock Key | JO-004 |
| SKU | 1097457 |
| Weight | 0,35 |
