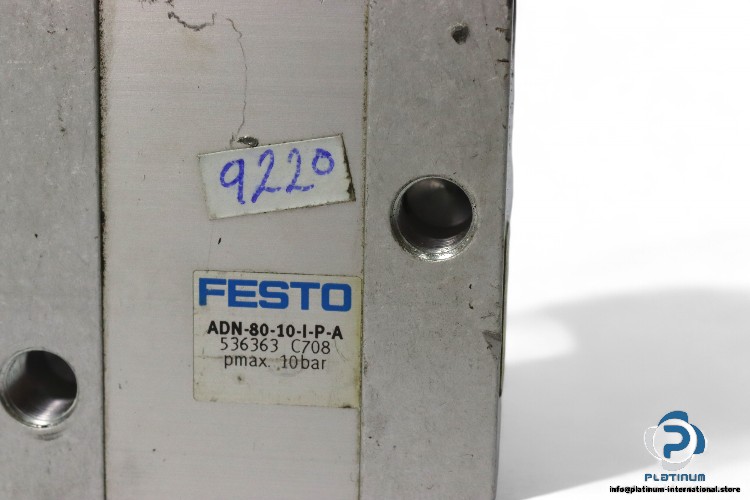

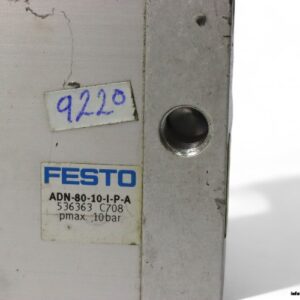

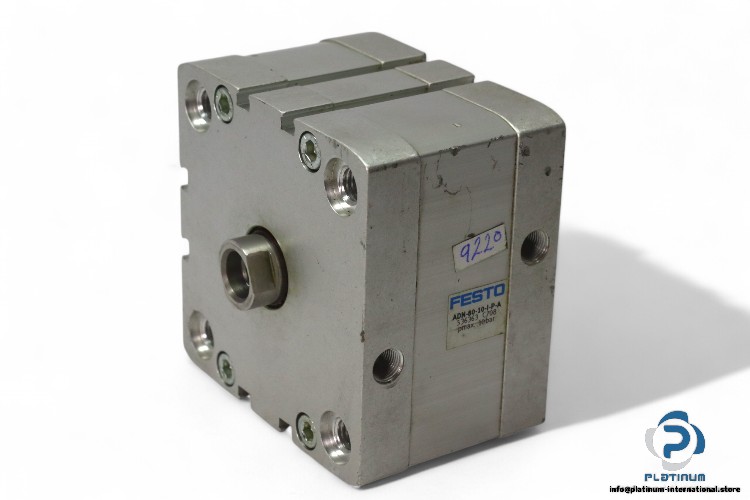

Festo ADN-80-10-I-P-A Compact AIR Cylinder

Compact Air Cylinder (Model: ADN-80-10-I-P-A)

Manufacturer: FESTO

Type: Compact Air Cylinder

The FESTO Compact Air Cylinder (Model: ADN-80-10-I-P-A) is a high-performance double-acting cylinder designed for efficient operation in pneumatic systems. Conforming to ISO 21287 standards, it features a robust die-cast aluminum body, corrosion-resistant materials, and flexible mounting options. Suitable for industrial automation, it offers reliable performance under moderate corrosion stress and operates effectively across a wide range of temperatures.

• Manufacturer: FESTO
• Type: Compact Air Cylinder
• Model: ADN-80-10-I-P-A
• Part No.: 536363
• Cover Material: Die-cast aluminum, coated
• Seals Material: TPE-U(PUR)
• Piston Rod Material: High-alloy steel
• Stroke: 10 mm
• Piston Diameter: 80 mm
• Piston Rod Thread: M12
• Operating Pressure: 0.06 MPa…1 MPa (0.6 bar…10 bar)
• Cushioning: Elastic cushioning rings/pads at both ends
• Mounting Position: Any
• Standard: ISO 21287
• Piston Rod End: Internal thread
• Position Sensing: For proximity sensor
• Variants: Piston rod at one end
• Mode of Operation: Double-acting
• Operating Medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
• Oil Lubrication: Operation with oil lubrication possible (required for further use)
• Corrosion Resistance Class (CRC): 2-Moderate corrosion stress
• LABS (PWIS) Conformity: VDMA24364-B1/B2-L
• Impact Energy in End Positions: 1.8 J
• Theoretical Force at 6 bar, Retracting: 2827 N
• Theoretical Force at 6 bar, Advancing: 3016 N
• Type of Mounting: With through-hole, internal thread, or accessories
• Pneumatic Connection: G1/8
• RoHS Compliance: Yes
• Flange Screws Material: Steel
• Ambient Temperature: -20 °C…80 °C
• Port Size: 1/8
