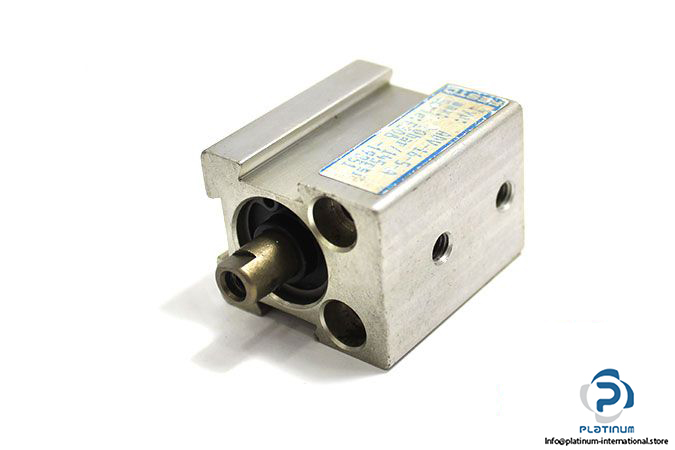

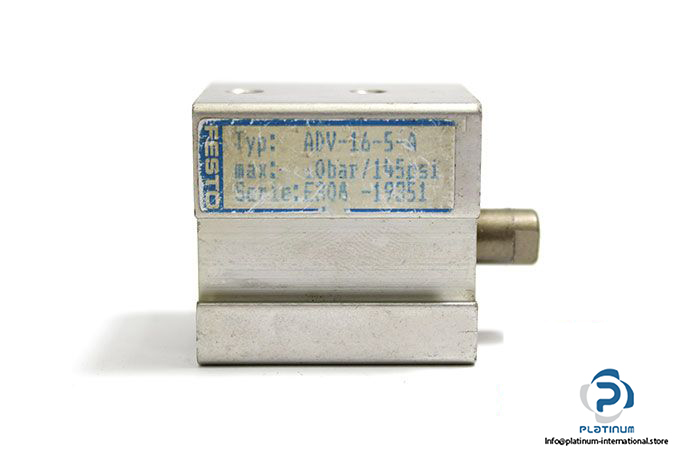

Festo 19351 Short Stroke Cylinder

Manufacturer: FESTO
Type: DOUBLE ACTING SHORT STROKE CYLINDER
Model: ADV-16-5-A
Part No.: 19351

Material
   Housing: Anodised aluminium
   Bearing cap: Plastic
   Piston rod: Stainless steel
Stroke Length: 5 mm
Piston Diameter: 16 mm
Design: Piston Cylinder
Max. Operating Pressure: 8 bar
Clamping Force at 6 bar: 113 N
Return Force at 6 bar: 83 N
Mode of operation: Double-acting
Pneumatic Connection: M5
Temperature: -20 … 60 °C
