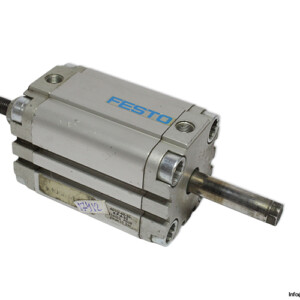

Festo ADVU-40-50-A-P-A-S2 Compact Cylinder
New
In stock4 unitsReady to ship
Compact Cylinder
The Festo ADVU-40-50-A-P-A-S2 compact cylinder features a 40 mm piston diameter and a 50 mm stroke. With a double-acting design and elastic cushioning rings, it™s perfect for applications using compressed air with an operating pressure range of 1 to 10 bar.40ActingADVU-40-50-A-P-A-S2AirCompactCompressedCylinderDoubleFestoHigh-AlloymmPistonPneumaticRODSteel
Used
In stock
This product is also available used
View Used Version →
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

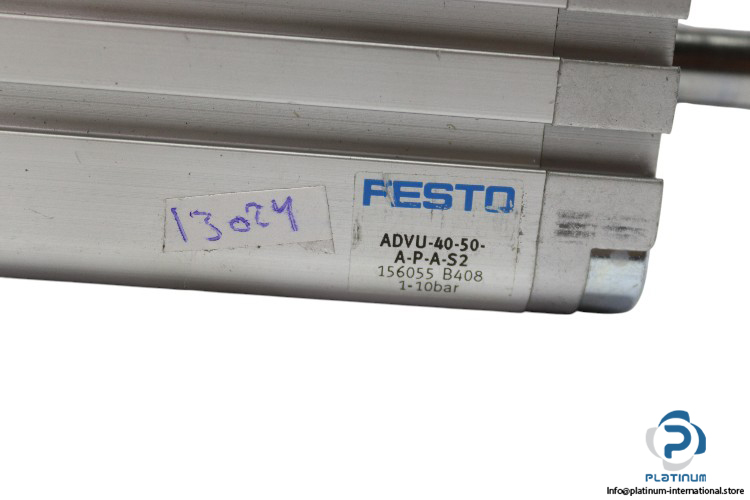

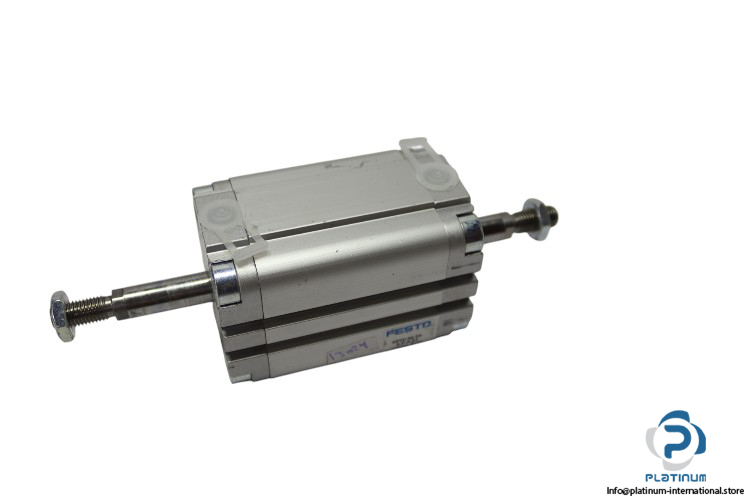

Festo ADVU-40-50-A-P-A-S2 “ Compact Cylinder
The Festo ADVU-40-50-A-P-A-S2 compact cylinder offers robust performance with a piston rod design and elastic cushioning rings for both ends. This double-acting cylinder is designed for reliable use with compressed air and features a wide range of industrial applications.
Manufacturer: Festo
Type: Compact Cylinder
Model: ADVU-40-50-A-P-A-S2
Part No: 156055 B408
| Operating Medium | Compressed air |
| Design of Cylinder | Piston rod |
| Cushioning | Elastic cushioning rings/plates at both ends |
| Piston-Rod End | Male thread |
| Position Detection | Via proximity switch |
| Variants | Through piston rod |
| Mode of Operation | Double-acting |
| Operating Pressure | 1 to 10 bar |
| Piston Diameter | 40 mm |
| Stroke | 50 mm |
| Pneumatic Connection | G1/8 |
| Cover Material | Wrought aluminum alloy |
| Material Dynamic Seals | NBR |
| Material Piston Rod | High-alloy steel |
| Ambient Temperature Range | -20 to 80°C |
