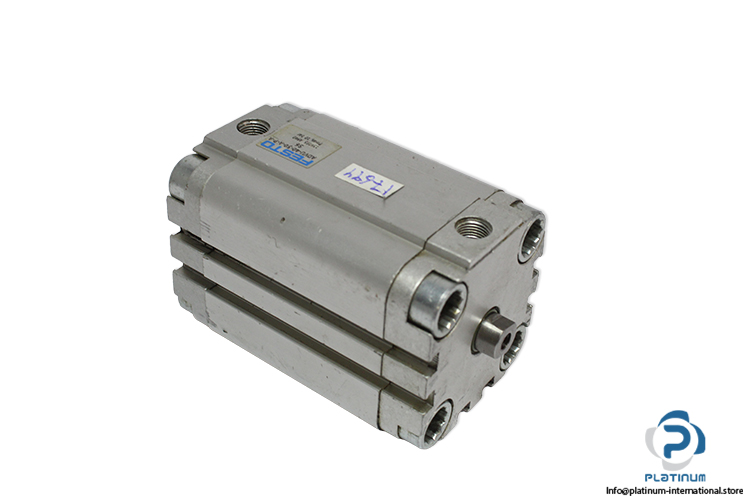

Festo ADVU-40-50-A-P-A-S6 Compact Cylinder
Compact Cylinder
High-quality Festo compact cylinder ADVU-40-50-A-P-A-S6 with 40 mm piston diameter, 50 mm stroke, double-acting operation, and heat-resistant seals for demanding pneumatic automation.Festo ADVU-40-50-A-P-A-S6 Compact Cylinder
A high-performance compact cylinder from Festo designed for precise linear motion in space-saving installations. With a 40 mm piston diameter and 50 mm stroke length, it is ideal for demanding pneumatic automation tasks where reliability, repeatability, and heat resistance are critical. Manufacturer: Festo
Type: Compact cylinder

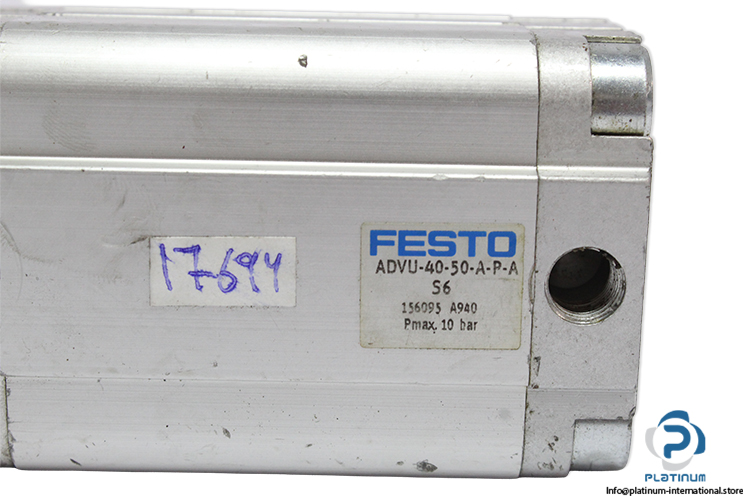

Model: ADVU-40-50-A-P-A-S6
Part No.: 156095
Code: A940
Series: ADVU
Recommendation:
For compact, reliable motion in pneumatic automation, this Festo ADVU-40-50-A-P-A-S6 cylinder is an excellent choice for pick-and-place units, clamping stations, packaging lines, and general industrial machinery. For more configuration options, stroke lengths, and bore sizes, explore our full range of Pneumatic Actuators available at Platinum International.
| Operating Medium | Compressed air |
| Stroke Length | 50 mm |
| Piston Diameter | 40 mm |
| Piston Rod End | Female thread |
| Max. Operating Pressure | 10 bar |
| Mode of Operation | Double acting |
| Cushioning | Elastic cushioning rings/plates at both ends |
| Position Detection | VIA proximity switch |
| Variants | Heat-resistant seals max. 120°C |
| Pneumatic Connection | G1/8 |
| Ambient Temperature | 0 to 120°C |
| Cover Material | Wrought aluminum alloy |
| Material Dynamic Seals | FPM |
| Material Piston Rod | High-alloy steel |
| Material Cylinder Barrel | Wrought aluminum alloy |
