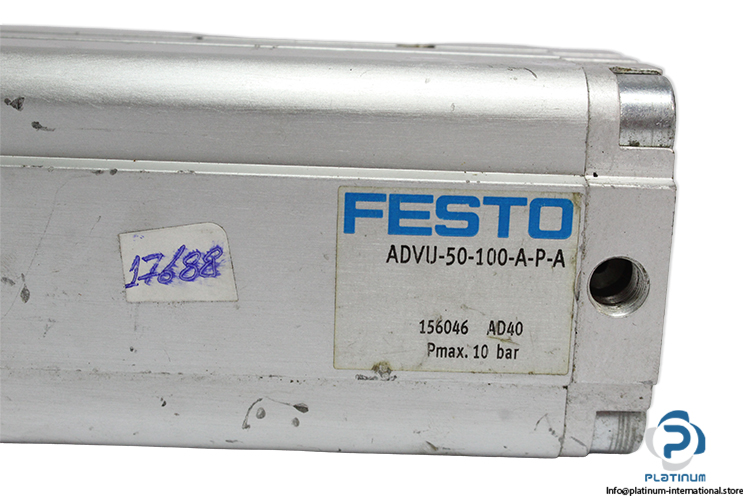

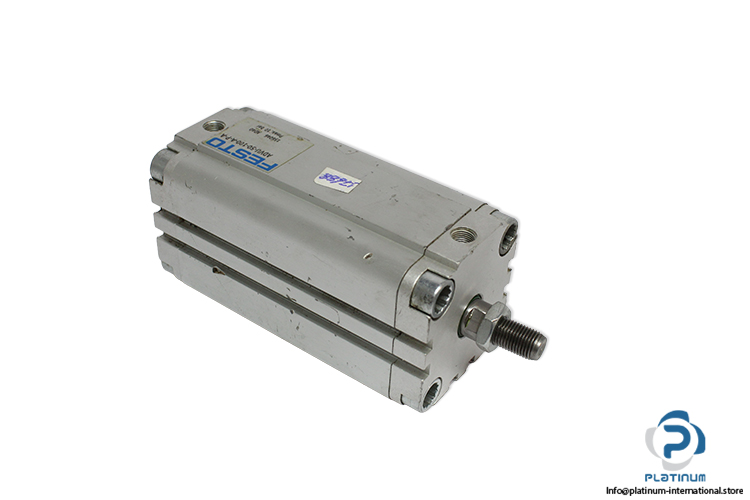

Festo ADVU-50-100-A-P-A Compact Cylinder

Festo ADVU-50-100-A-P-A Compact Cylinder

A high-performance pneumatic compact cylinder engineered by Festo for reliable motion, precise stroke operation, and long-lasting durability. Designed for space-saving installations, this double-acting actuator is ideal for machinery, automation systems, and industrial equipment requiring accurate linear movement. Manufacturer: Festo
Type: Compact Cylinder
Model: ADVU-50-100-A-P-A
Part No.: 156046
Code: AD40
Series: ADVU
Operating medium: Compressed air
Stroke Length: 100 mm
Piston Diameter: 50 mm
Piston rod end: Male thread
Max. Operating Pressure: 10 bar
Mode of operation: Double acting
Piston rod thread: M12x1.25
Cushioning: Elastic cushioning rings/plates at both ends
Position detection: Via proximity switch
Pneumatic Connection: G1/8
Ambient Temperature: -20 to 80 °C
Cover material: Wrought aluminum alloy
Piston rod material: High-alloy steel
Material of cylinder barrel: Wrought aluminum alloy

Recommendation:
For enhanced system performance, pair this cylinder with compatible Pneumatic Actuators and precise Sensors for reliable stroke monitoring and automation control. This Festo compact cylinder is ideal for high-cycle industrial environments where accurate positioning, durability, and compact design are critical. Its strong materials and optimized cushioning make it an excellent long-term choice for machinery upgrades and system efficiency improvements.
