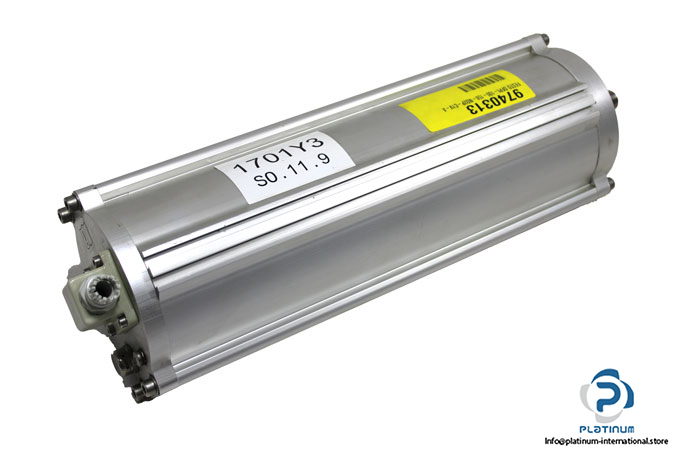

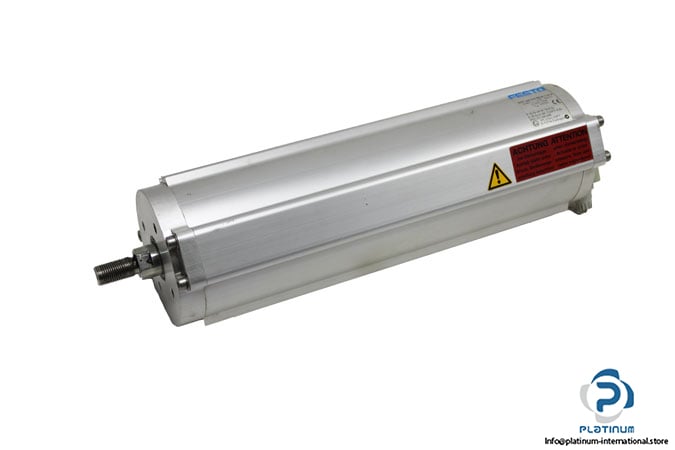

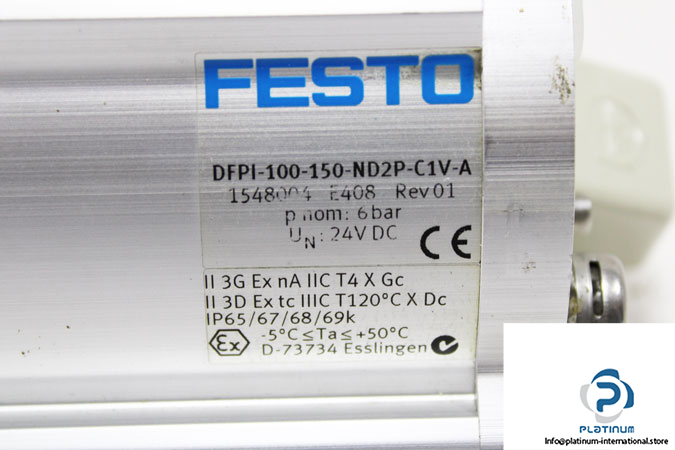

Festo DFPI-100-150-ND2P-C1V-A Linear Actuator
Used
In stock1 unitReady to ship
990,00$
LINEAR ACTUATOR
FESTO DFPI-100-150-ND2P-C1V-A is a robust linear actuator with a 150 mm stroke, 100 mm piston diameter, and integrated displacement encoder, operating at 3“8 bar and DC 24 V.10015024vActuatorAnalogDFPI-100-150-ND2P-C1V-ADisplacementEncoderFestoLinearmmOutputPistonPneumaticStroke
New
In stock 1 500,00$
This product is also available brand new
View New Version →
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
FESTO DFPI-100-150-ND2P-C1V-A LINEAR ACTUATOR
This FESTO DFPI-100-150-ND2P-C1V-A linear actuator offers high precision and performance, suitable for industrial automation systems requiring accurate displacement control and robust power output. Integrated with a displacement encoder and analog output, this actuator ensures smooth and responsive motion control.
Manufacturer: FESTO
Type: Linear Actuator
Model: DFPI-100-150-ND2P-C1V-A
Art No.: 1548004
| Size of Actuator | 100 |
| Stroke | 150 mm |
| Stroke Reserve | 3 mm |
| Piston Diameter | 100 mm |
| Measuring Method | Displacement Encoder (Potentiometer) |
| Operating Pressure | 3 / 8 bar; 6 bar nominal |
| Analogue Output | 4 “ 20 mA |
| Nominal Operating Voltage | DC 24 V |
