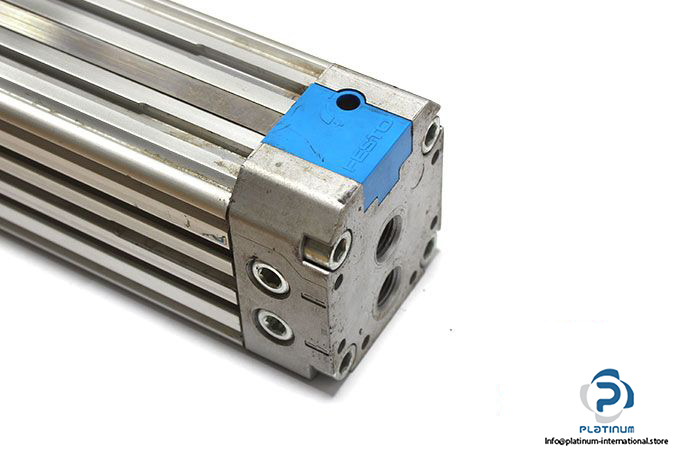

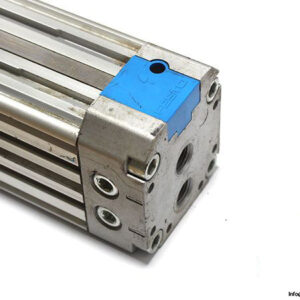

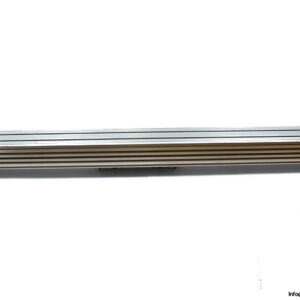

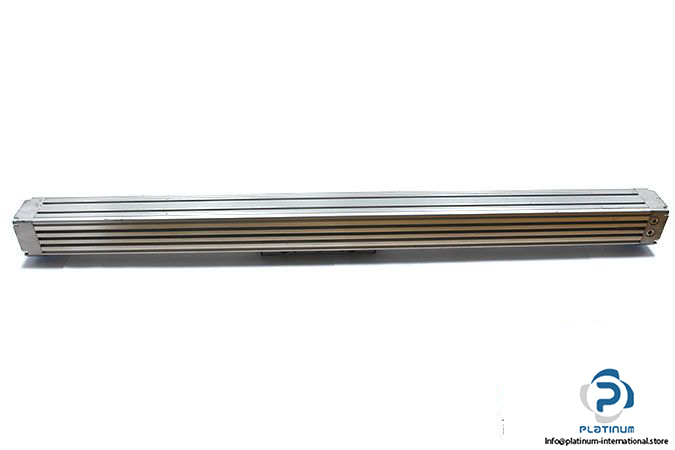

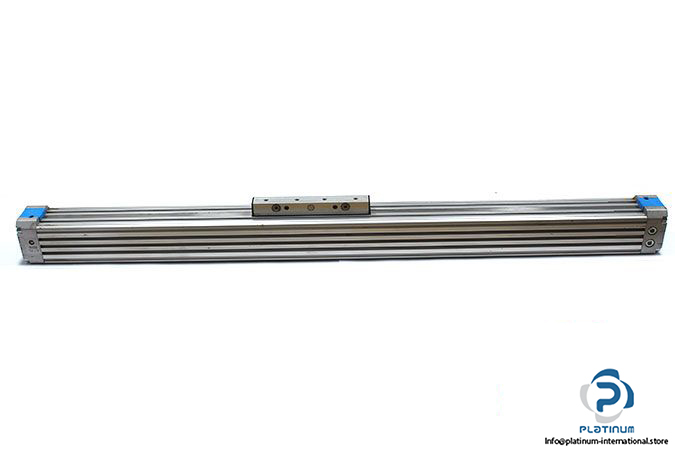

Festo DGP-40-650-PPV-A-B-GK Linear Drive
Manufacturer: FESTO
Type: Linear Drive

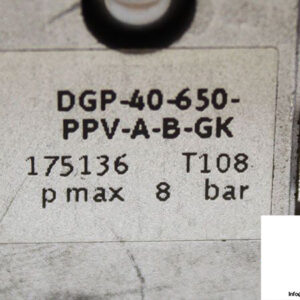

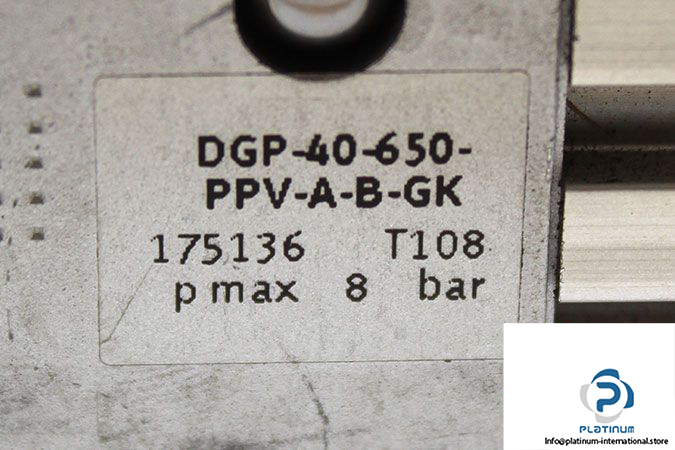

Model: DGP-40-650-PPV-A-B-GK
Part No: 175136
Materials
- Cover: Aluminum
- Seals: NBR TPE-U(PU)
Piston Diameter: 40 mm
Cushioning: Adjustable at Both Ends
Stroke: 450 mm
Cushioning Length: 30 mm
Operating Pressure: 1.5…8 bar
Theoretical Force At 6 Bar, Retracting: 754 N
Theoretical Force At 6 Bar, Advancing: 754 N
Ambient Temperature: -10…60 °C
Pneumatic Connection: G1/4
Constructional Design: Pneumatic Linear Drive with Slide
Mode of Operation: Double-Acting
Guide: Recirculating Ball Bearing Guide
Position Sensing: For Proximity Sensor
Magnet: with Magnet
Type of Mounting: with Accessories
Weight: 6 kg
