Festo DGPI-25-225-AIF-AV Linear Actuator
Used
In stock1 unitReady to ship
LINEAR ACTUATOR
FESTO DGPI-25-225-AIF-AV pneumatic linear actuator with 225 mm stroke, 25 mm piston diameter, and integrated displacement encoder. Designed for precise and durable automation control.ActingActuatorAutomationControlCylinderDgpiDoubleDriveFestoG1/8IndustrialLinearMotionPneumaticPneumaticsSeriesSlide
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

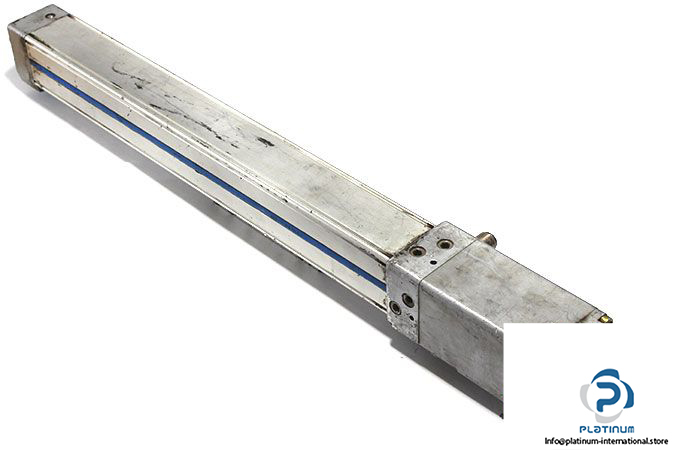

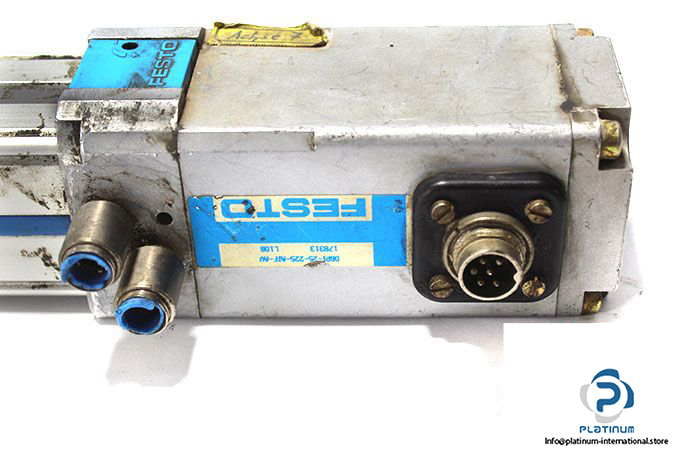

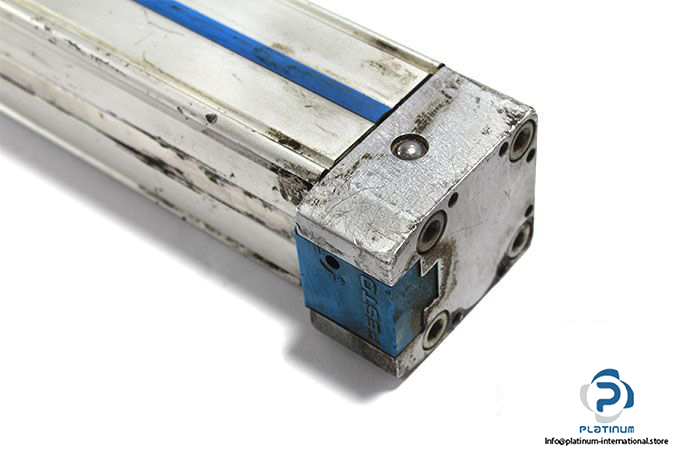

FESTO DGPI-25-225-AIF-AV LINEAR ACTUATOR
The FESTO DGPI-25-225-AIF-AV is a robust and precise pneumatic linear actuator designed for demanding industrial automation applications. Featuring a slide design and integrated displacement encoder, this actuator offers smooth motion, accurate position sensing, and high reliability in dynamic environments.
Manufacturer: FESTO
Type: Linear Actuator

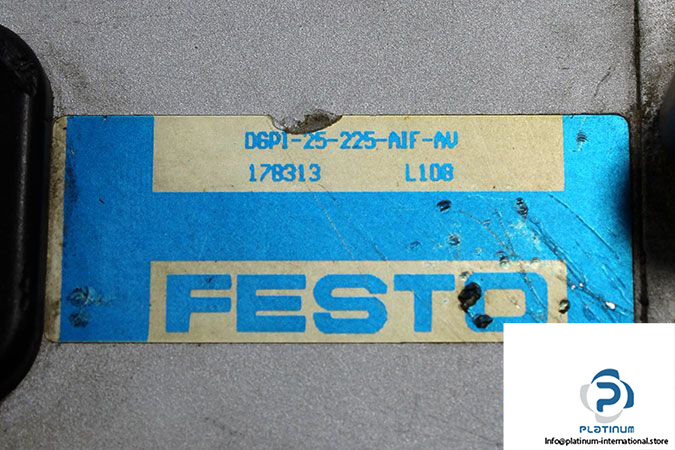

Model: DGPI-25-225-AIF-AV
Part No.: 178313
Materials
| Design | Piston, Moment Compensator, Profile Barrel |
| Construction | Pneumatic Linear Drive with Slide |
| Mode of Operation | Double-Acting |
| Stroke | 225 mm |
| Piston Diameter | 25 mm |
| Cushioning | Adjustable at Both Ends |
| Cushioning Length | 18 mm |
| Operating Pressure | 4 / 8 bar |
| Ambient Temperature | -10 / 60 °C |
| Pneumatic Connection | G1/8 |
| Position Sensing | Integrated Displacement Encoder |
| Magnet | With Magnet |
| Type of Mounting | With Accessories |
| Cover | Aluminum |
| Seals | NBR, TPE-U(PU) |
