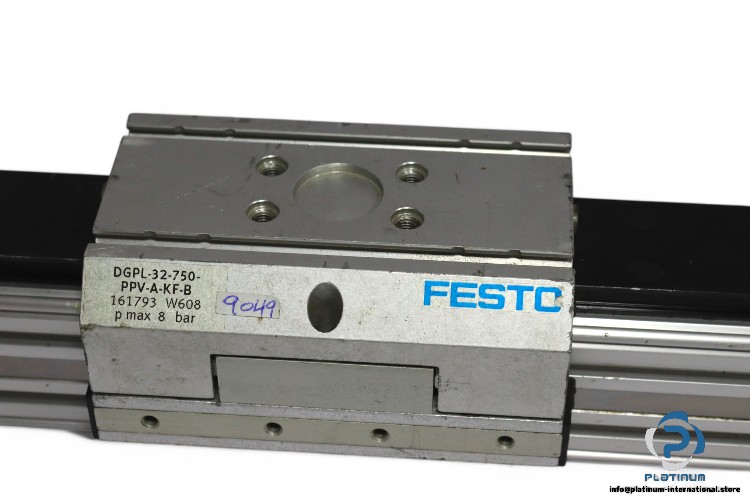

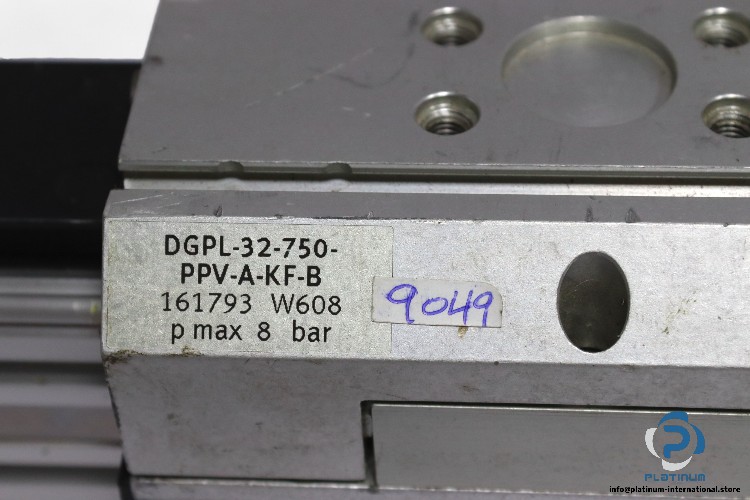

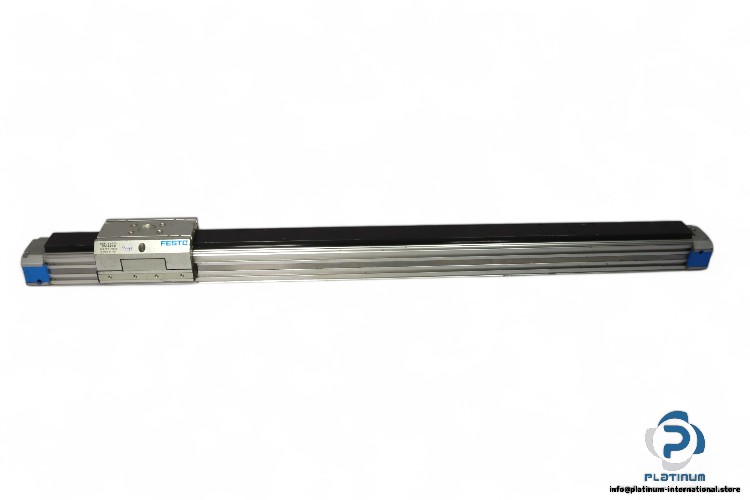

Festo DGPL-32-750-PPV-A-KF-B Linear Actuator

Linear Actuator (Model: DGPL-32-750-PPV-A-KF-B)

Manufacturer: FESTO

Type: Linear Actuator

Model: DGPL-32-750-PPV-A-KF-B

Part No.: 161793

Stroke Length: 750 mm

Piston Diameter: 32 mm

Operating Medium: Compressed air

Max. Operating Pressure: 8 bar

Mode of Operation: Double-acting

Cushioning: Pneumatic cushioning, adjustable at both ends

Guide: Recirculating ball bearing guide

Position Sensing: For proximity sensing

Housing Material: Aluminum

Pneumatic Connection: G1/8

Ambient Temperature: -10 °C … 60 °C
