Festo DGS-40-300 PPV Round Cylinder
Used
In stock1 unitReady to ship
Round Cylinder
Festo DGS-40-300-PPV round cylinder with 300 mm stroke and 40 mm piston diameter. Double-acting design with adjustable pneumatic cushioning, built for reliable compressed air applications up to 12 bar.300mm40mmActingActuatorAdjustableCushioningCylinderDGSDGS-40-300-PPVDoubleFestoIndustrialPistonPneumaticRoundSeriesStroke
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

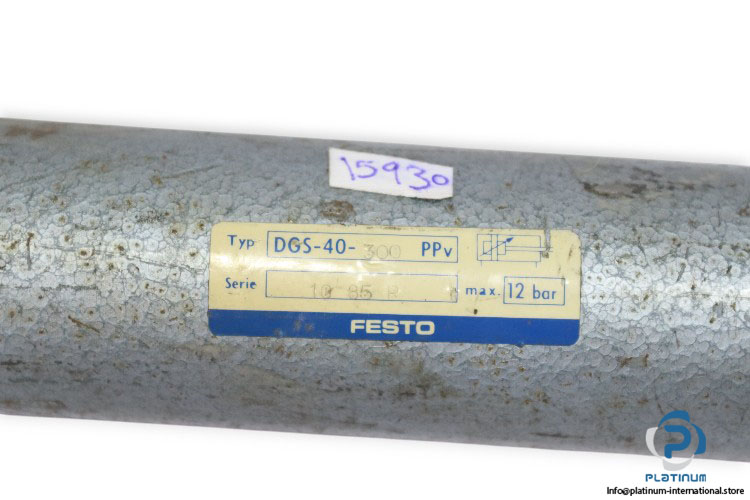

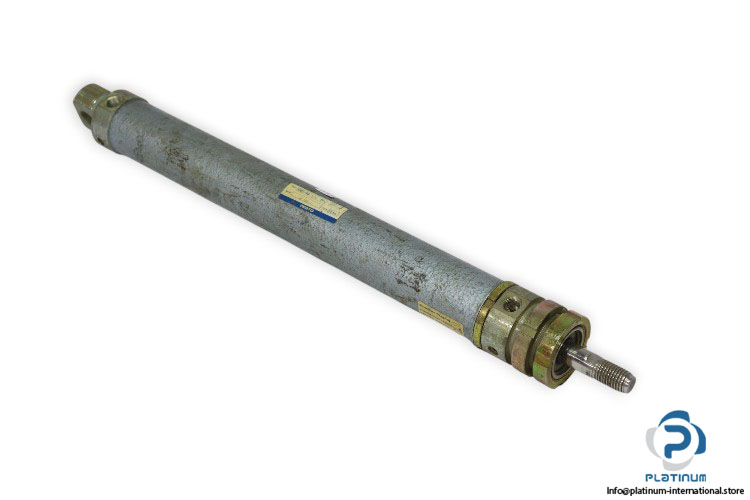

Festo DGS-40-300-PPV Round Cylinder
The Festo DGS-40-300-PPV is a high-performance round cylinder from the DGS series, engineered for precision pneumatic motion. Featuring a 300 mm stroke length and 40 mm piston diameter, it delivers reliable double-acting operation with adjustable cushioning, making it suitable for demanding industrial applications.
Manufacturer: Festo
Type: Round Cylinder
Model: DGS-40-300-PPV
Series: DGS
| Stroke Length | 300 mm |
| Piston Diameter | 40 mm |
| Piston Rod Thread | 12 mm (Male) |
| Pneumatic Connection | G1/4 |
| Operating Medium | Compressed Air |
| Variants | Single-Ended Piston Rod |
| Cushioning PPV | Pneumatic Cushioning Adjustable at Both Ends |
| Mode of Operation | Double-Acting |
| Max. Operating Pressure | 12 bar |
| Shape | Circular |
| Rod Direction | One Side |
| Ambient Temperature | -20 to 80 °C |
