Name: FESTO DN-50-300-PPV ISO CYLINDER
SKU: 1051034
Availability: LimitedAvailability

Manufacturer: FESTO
Type: ISO Cylinder
Model: DN-50-300-PPV
Part. No: 4987

Media: Compressed Air
Stroke: 300 mm
Bore diameter: 50 mm
Bore X Stroke: 50×300 mm
Rod diameter: 20 mm
Fram Dimensions: 65X435 mm
Pneumatic connection: G1/4
Max pressure: 12 bar
Mode of operation: Double
Piston rod end: Male
Shape: Circular
Rod Direction: One Sid

Specification	Value
Weight	3,1 kg
Condition	Used
Bore Diameter [mm]	50
Connection	G1/4
Stroke Size [mm]	300
Shelf No.	241230
Part No.	4987
Type of Product	ISO Cylinder

Price	On Request
Stock	2 In stock
Category	ISO Cylinder
Condition	Used
SKU	1051034

Weight	3,1 kg
Condition	Used
Bore Diameter [mm]	50
Connection	G1/4
Stroke Size [mm]	300
Shelf No.	241230
Part No.	4987
Type of Product	ISO Cylinder

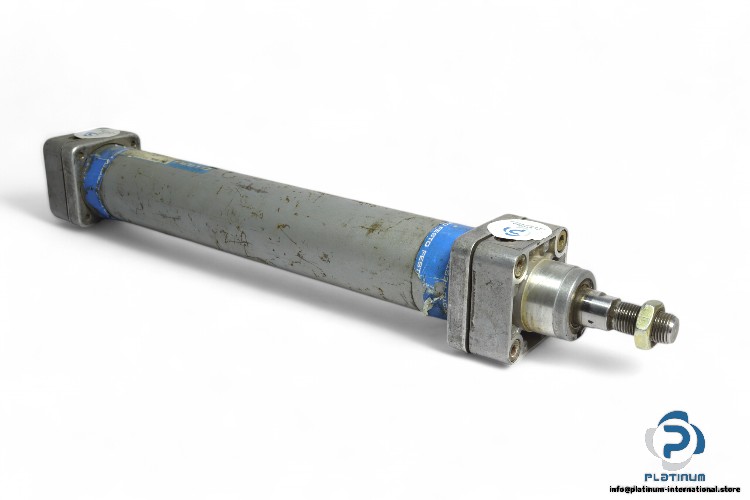

Festo DN-50-300-PPV ISO Cylinder
