Festo DN-63-300PPV ISO Cylinder
Used
In stock1 unitReady to ship
ISO Cylinder
FESTO ISO Cylinder DN-63-300PPV designed for industrial automation, features a 63 mm bore diameter, 300 mm stroke, double operation mode, and a maximum pressure of 12 bar. Pneumatic connection: G 3/8.123/830063AirAutomationbarboreCompressedconnectionCylinderdiameterDN-63-300PPVDoubleFestoGIndustrialISOmmOperationPneumaticPressureStroke
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

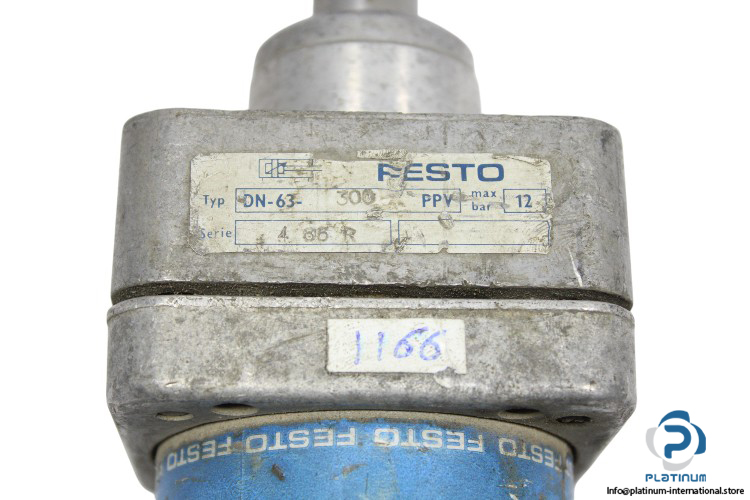

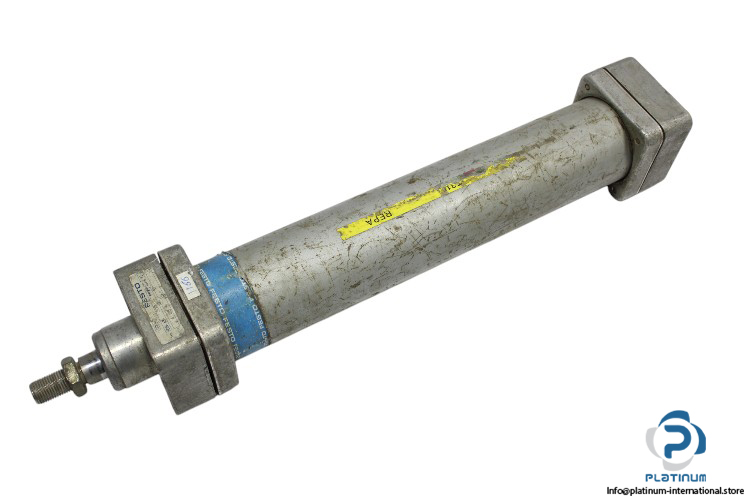

FESTO ISO Cylinder DN-63-300PPV
The FESTO ISO Cylinder DN-63-300PPV is a high-quality pneumatic cylinder designed for efficient and reliable performance in industrial automation systems. With a bore diameter of 63 mm and a stroke length of 300 mm, this cylinder offers high durability and functionality for demanding applications.
Manufacturer: FESTO
Type: ISO Cylinder
Model: DN-63-300PPV
Technical Specifications
- Media: Compressed Air
- Bore Diameter: 63 mm
- Stroke: 300 mm
- Bore x Stroke: 63 x 300 mm
- Rod Diameter: 20 mm
- Frame Dimensions: 81 x 450 mm
- Pneumatic Connection: G 3/8
- Pressure Max.: 12 bar
- Operation Mode: Double
- Piston Rod End: Male
- Shape: Circular
- Rod Direction: One Side
