Festo DN-63-500PPV Pneumatic Actuator
Used
In stock1 unitReady to ship
The FESTO DN-63-500-PPV Pneumatic Actuator offers high-performance capabilities with a 63 mm bore diameter, 500 mm stroke, and 12 bar maximum operating pressure for industrial applications.
125006380ActingActuatorbarboreCCirculardiameterDirectionDoubleEndG3/8IndustrialmaleMaxmmOneOperatingPistonPortPressureRODsideSizeStrokeTemperature
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

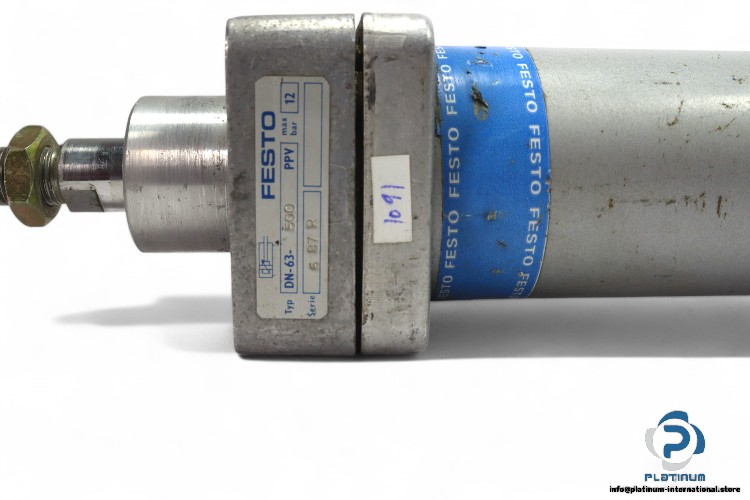

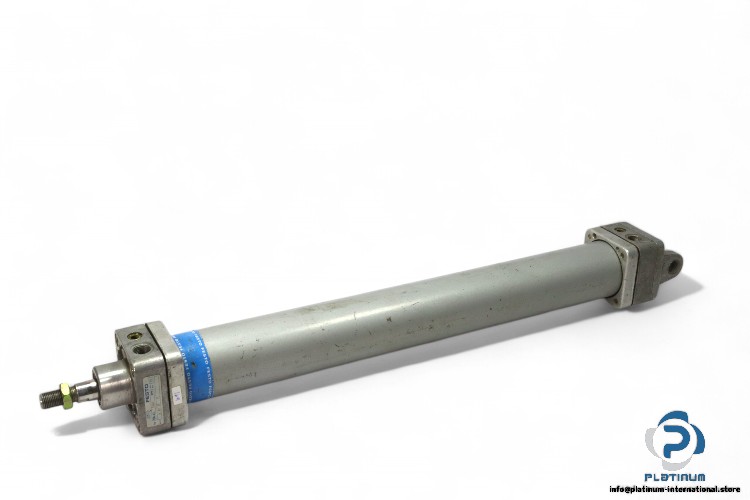

FESTO DN-63-500-PPV PNEUMATIC ACTUATOR
The FESTO DN-63-500-PPV Pneumatic Actuator is designed for efficient and reliable performance in industrial applications. With a 63 mm bore diameter and a 500 mm stroke, it offers precise control and flexibility under varying operational conditions.
Manufacturer: FESTO
Type: Pneumatic Actuator
Model: DN-63-500-PPV
Technical Specifications
- Bore Diameter: 63 mm
- Stroke: 500 mm
- Rod Diameter: 20 mm
- Mode of Operation: Double acting
- Shape: Circular
- Rod Direction: One Side
- Piston Rod End: Male
- Max Temperature: 80 °C
- Max Operating Pressure: 12 bar
- Port Size: G3/8
