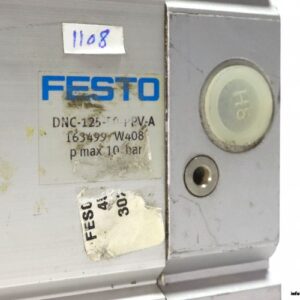

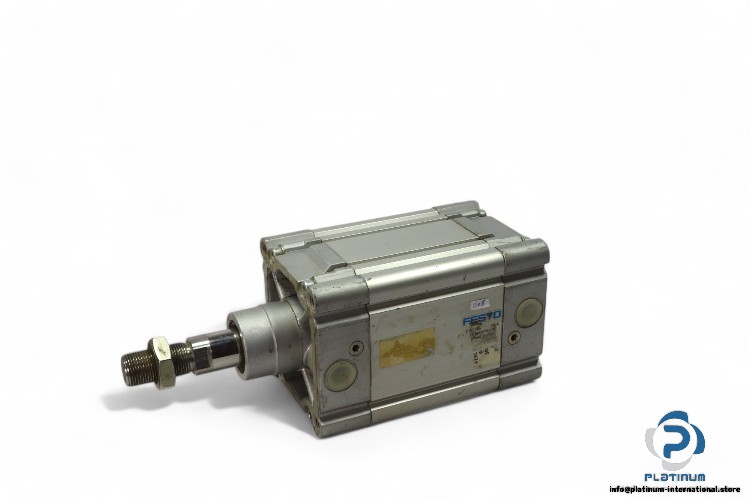

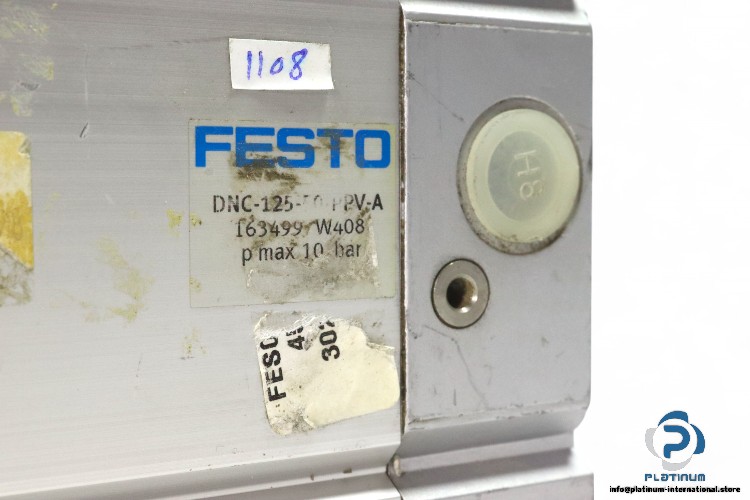

Festo DNC-125-50-PPV-A ISO Cylinder
Used
In stock1 unitReady to ship
Designed for reliability and precision, the FESTO DNC-125-50-PPV-A ISO Cylinder features a 125 mm bore, 50 mm stroke, and is ideal for industrial applications requiring double-acting cylinders.
101255080°CbarboreCylinderEndg1/2IndustrialmaleMaxmmPneumaticPortPressureRODShapeSizeSquareStrokeTemperature
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
FESTO DNC-125-50-PPV-A ISO CYLINDER
The FESTO DNC-125-50-PPV-A ISO Cylinder is designed for precise motion control and reliable performance in industrial environments. With a 125 mm bore diameter and a 50 mm stroke, it provides robust operation with a variety of mounting and application options.
Manufacturer: FESTO
Type: ISO CYLINDER
Model: DNC-125-50-PPV-A
Part No.: 163499
Technical Specifications
- Bore Diameter: 125 mm
- Stroke: 50 mm
- Rod Diameter: 32 mm
- Mode of Operation: Double Acting
- Shape: Square
- Rod Direction: One Side
- Piston Rod End: Male
- Max Temperature: 80°C
- Max Operating Pressure: 10 bar
- Port Size: G1/2
