Festo DNC-40-100-PPV ISO Cylinder
New
In stock2 unitsReady to ship
ISO Cylinder
The FESTO DNC-40-100-PPV ISO Cylinder is designed for high-performance applications with compressed air media. Featuring a 40 mm bore diameter, 100 mm stroke, and a 12 bar max pressure, it ensures reliable and efficient operation.1/410040ActionAirboreCompressedconnectionCylinderDNC-40-100-PPVDoubleEndEquipmentFestoGhigh-performanceIndustrialISOmalemmPistonPneumaticRODStroke
Used
In stock
This product is also available used
View Used Version →
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

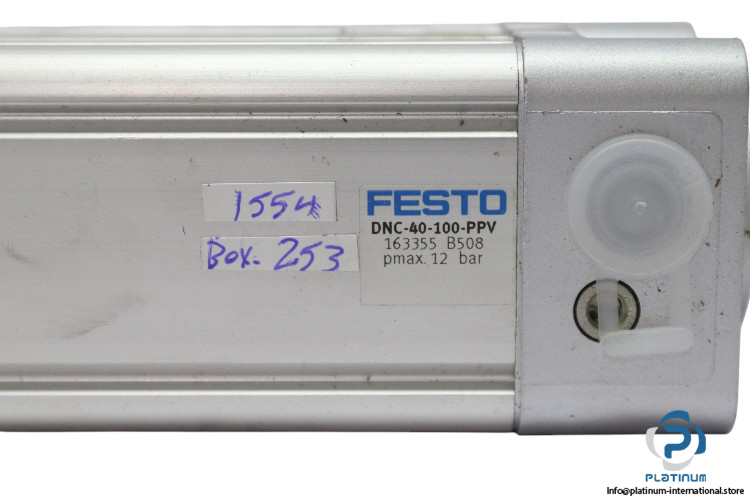

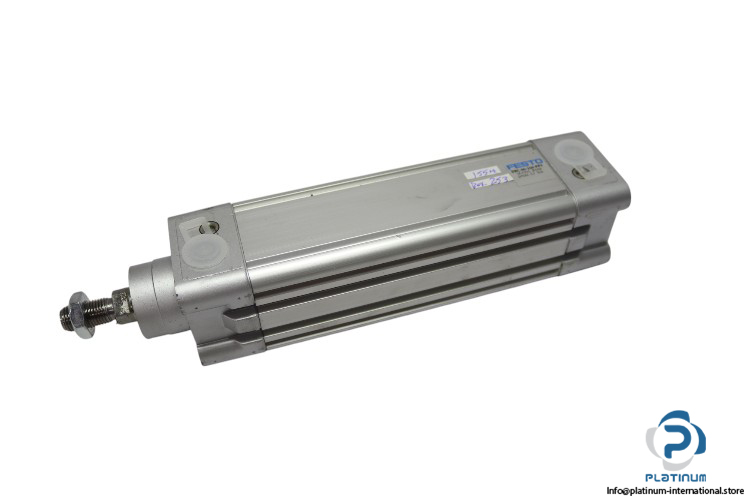

FESTO DNC-40-100-PPV ISO Cylinder
The FESTO DNC40100PPV ISO Cylinder is a high-performance pneumatic cylinder designed for efficient operation in industrial applications. It features a bore diameter of 40 mm and a stroke length of 100 mm, delivering reliable performance with compressed air media.
Manufacturer: FESTO
Type: ISO Cylinder
Model: DNC-40-100-PPV
Part No.: 163355
| Media | Compressed Air |
| Bore Diameter | 40 mm |
| Stroke | 100 mm |
| Bore x Stroke | 40 x 100 mm |
| Rod Diameter | 16 mm |
| Frame Dimensions | 54 x 210 mm |
| Pneumatic Connection | G 1/4 |
| Pressure Max | 12 bar |
| Operation Mode | Double |
| Piston Rod End | Male |
| Shape | Square |
| Rod Direction | One Side |
