Festo DNC-50-125-PPV-A-KP ISO Cylinder With Break
Used
In stock1 unitReady to ship
ISO Cylinder with Brake
The Festo DNC-50-125-PPV-A-KP is a high-performance ISO cylinder designed for industrial use, featuring 50 mm bore, 125 mm stroke, double operation, and a square body with one-sided rod direction.1/41212550ActingActuatorAirAutomationbarBodyboreBrakeCompressedconnectionCylinderDNC-50-125-PPV-A-KPDoubleFestoGIndustrialISOmalemmOnePneumaticPressureRODsideSquareStroke
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

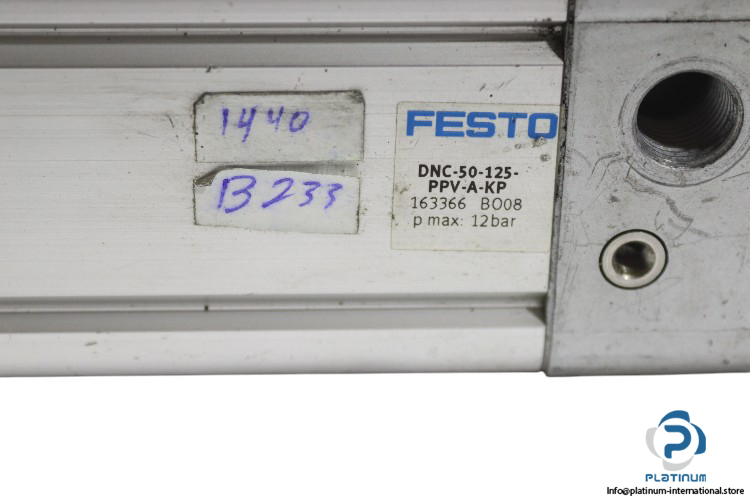

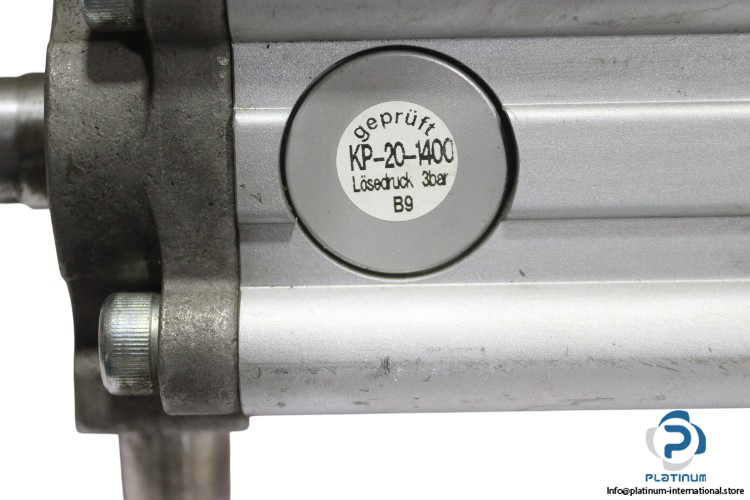

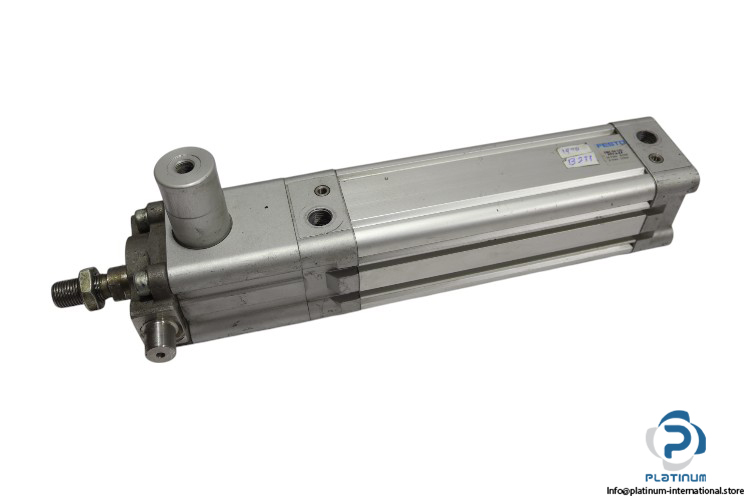

Festo DNC-50-125-PPV-A-KP ISO Cylinder with Brake
The Festo DNC50125PPVAKP ISO Cylinder with Brake is a robust pneumatic actuator designed for high-performance industrial applications. It operates with compressed air and features a double-acting mode, delivering precise control and force in a compact square-shaped design.
Manufacturer: FESTO
Type: ISO Cylinder with Brake
Model: DNC-50-125-PPV-A-KP
Part No.: 163366
| Media | Compressed Air |
| Bore Diameter | 50 mm |
| Stroke | 125 mm |
| Bore x Stroke | 50 x 125 mm |
| Rod Diameter | 20 mm |
| Frame Dimensions | 64 x 315 mm |
| Pneumatic Connection | G 1/4 |
| Pressure Max. | 12 bar |
| Operation Mode | Double |
| Piston Rod End | Male |
| Shape | Square |
| Rod Direction | One Side |
