Festo DNC-63-250-PPV-A ISO Cylinder
Used
In stock2 unitsReady to ship
The FESTO DNC-63-250-PPV-A ISO Cylinder features a 63 mm bore, 250 mm stroke, and 12 bar max pressure, ideal for reliable and efficient pneumatic applications.
63AirboreCompressedconnectionCylinderdiameterdouble-actingG3/8high-pressureIndustrialmmPneumaticPneumaticsShapeSquare
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

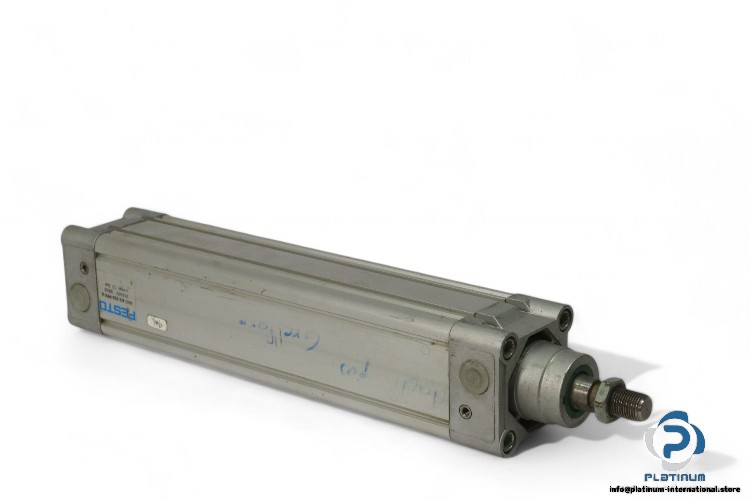

FESTO DNC-63-250-PPV-A ISO CYLINDER
The FESTO DNC-63-250-PPV-A ISO Cylinder is a robust and efficient solution for industrial applications requiring precise pneumatic performance. With a 63 mm bore, 250 mm stroke, and double-acting operation, it provides optimal reliability and performance in demanding conditions.
Manufacturer: FESTO
Type: ISO CYLINDER

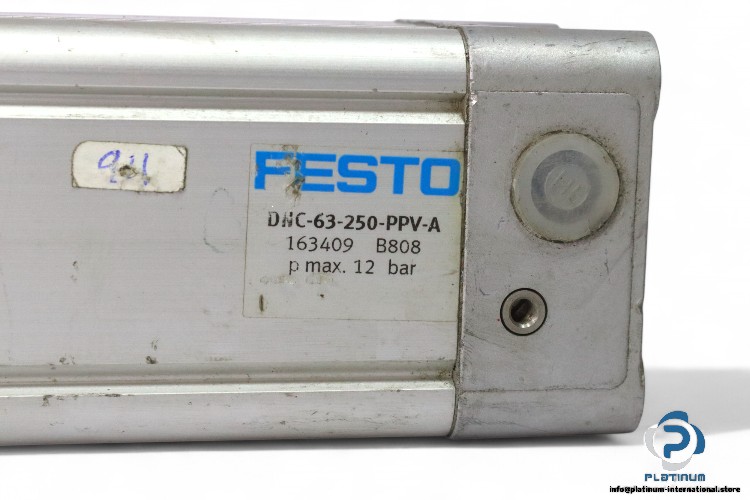

Model: DNC-63-250-PPV-A
Part No.: 163409
Technical Specifications
- Media: Compressed Air
- Bore Diameter: 63 mm
- Stroke: 250 mm
- Bore X Stroke: 63×250 mm
- Rod Diameter: 20 mm
- Frame Dimensions: 75×400 mm
- Pneumatic Connection: G3/8
- Max Pressure: 12 bar
- Mode of Operation: Double
- Piston Rod End: Male
- Shape: Square
- Rod Direction: One Side
