Festo DNC-63-360-PPV-A ISO Cylinder
Used
In stock1 unitReady to ship
ISO Cylinder
FESTO DNC-63-360-PPV-A ISO Cylinder is designed for industrial automation with a 63 mm bore and 360 mm stroke. Featuring a double-acting operation, G 3/8 pneumatic connection, and a male piston rod end, this cylinder ensures efficiency and precision in pneumatic motion control.3/8360mm63mmActuatorAutomationboreconnectionControlCylinderDNC-63-360-PPV-Adouble-actingFestoGHigh-SpeedIndustrialISOmaleMotionPistonpneuPneumaticPrecisionRODShapeSquareStroke
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

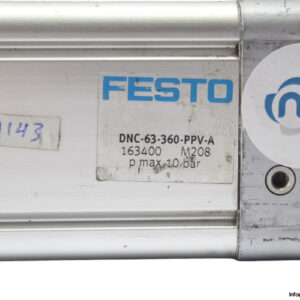

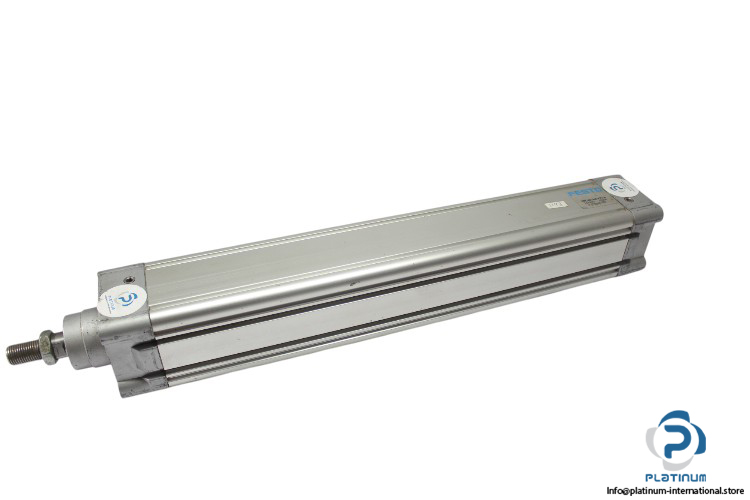

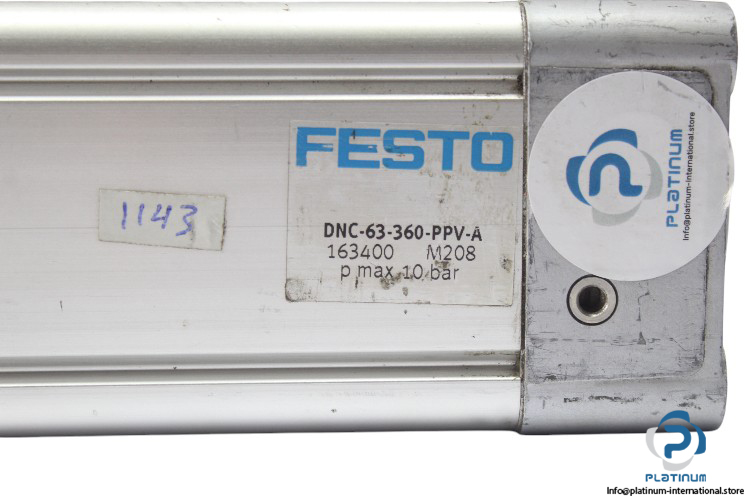

FESTO DNC-63-360-PPV-A ISO Cylinder
The FESTO DNC-63-360-PPV-A ISO Cylinder is a high-performance pneumatic actuator designed for industrial automation applications requiring precise motion control and durability. Built according to ISO standards, this cylinder ensures reliable operation with optimal force transmission and efficiency.
Manufacturer: FESTO
Type: ISO Cylinder
Model: DNC-63-360-PPV-A
Part No.: 163400
| Media | Compressed Air |
| Bore Diameter | 63 mm |
| Stroke | 360 mm |
| Bore x Stroke | 63 x 360 mm |
| Rod Diameter | 20 mm |
| Frame Dimensions | 76 x 515 mm |
| Pneumatic Connection | G 3/8 |
| Pressure Max. | 10 bar |
| Operation Mode | Double |
| Piston Rod End | Male |
| Shape | Square |
| Rod Direction | One Side |
