Festo DNC-63-830-PPV-A ISO Cylinder
Used
In stock1 unitReady to ship
ISO Cylinder
FESTO ISO Cylinder DNC-63-830-PPV-A features a 63 mm bore diameter and 830 mm stroke. It operates with compressed air, offers a 12 bar max pressure, and includes a square shape and male piston rod end for versatile pneumatic applications.63830AirboreComponentsCompressedCylinderDNC-63-830-PPV-Adouble-actingEndFestoIndustrialISOmalemmPneumaticRODStrokeSystemWith
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

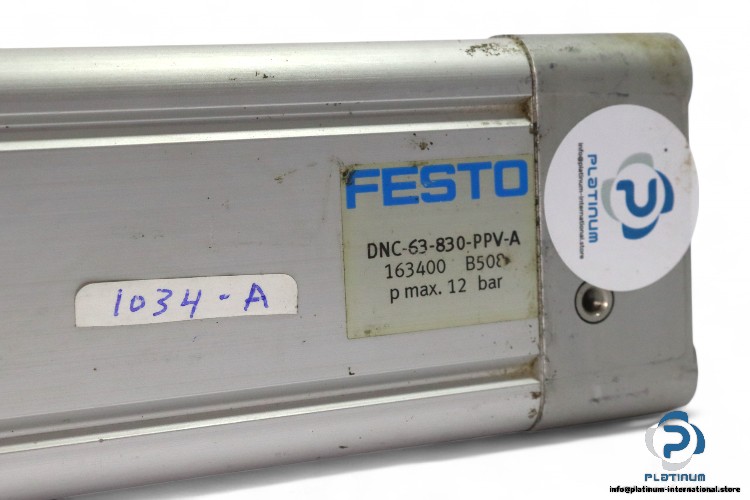

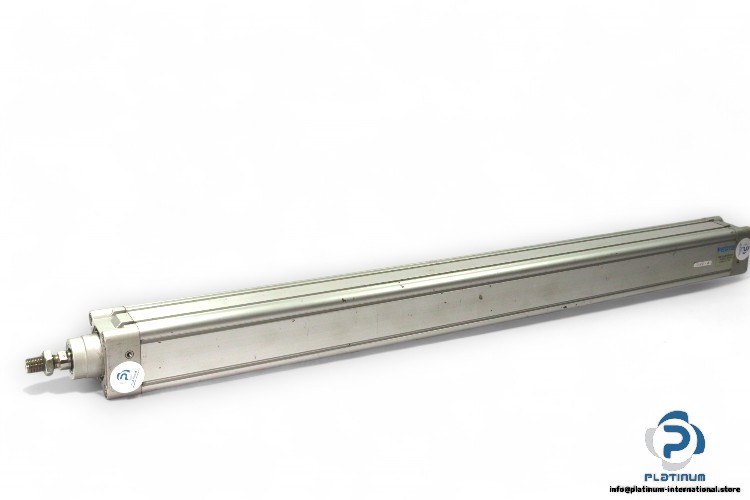

FESTO ISO Cylinder DNC-63-830-PPV-A
The FESTO ISO Cylinder DNC-63-830-PPV-A is designed for high-performance pneumatic applications, offering reliable operation with a double-acting mode. It features a bore diameter of 63 mm and a stroke length of 830 mm, making it ideal for various industrial applications requiring precise control and high pressure resistance.
Manufacturer: FESTO
Model: DNC63830PPVA
Part No.: 163400
Technical Specifications
- Media: Compressed Air
- Bore Diameter: 63 mm
- Stroke: 830 mm
- Bore x Stroke: 63 x 830 mm
- Rod Diameter: 20 mm
- Frame Dimensions: 75 x 985 mm
- Pneumatic Connection: G 3/8
- Pressure Max.: 12 bar
- Operation Mode: Double
- Piston Rod End: Male
- Shape: Square
- Rod Direction: One Side
