Festo DNCB-100-50-PPV-A Pneumatic Cylinder
Used
In stock1 unitReady to ship
The FESTO DNCB-100-50-PPV-A Pneumatic Cylinder features a 100 mm bore diameter, 50 mm stroke, and 12 bar max pressure, making it ideal for industrial pneumatic operations.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

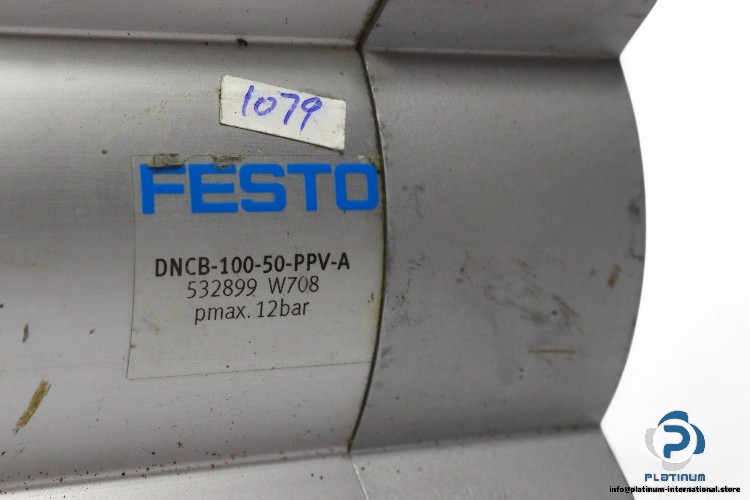

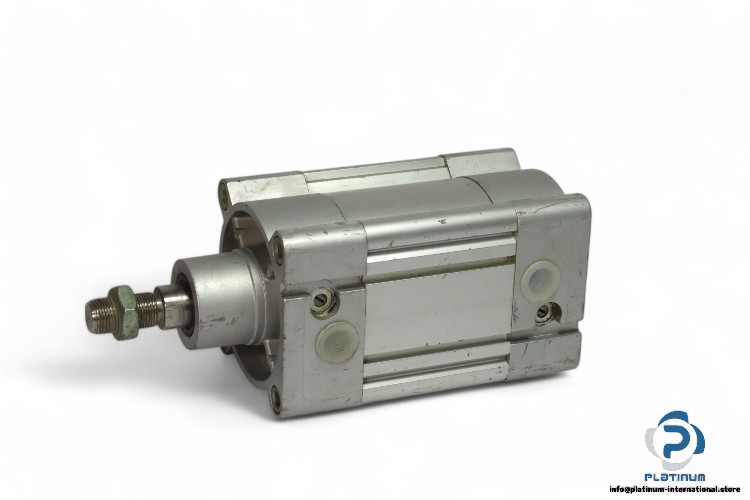

FESTO DNCB-100-50-PPV-A PNEUMATIC CYLINDER
The FESTO DNCB-100-50-PPV-A Pneumatic Cylinder is a high-performance solution designed for industrial pneumatic applications. With a 100 mm bore diameter and 50 mm stroke, it delivers reliable and efficient operation under high-pressure conditions.
Manufacturer: FESTO
Type: Pneumatic Cylinder
Model: DNCB-100-50-PPV-A
Part No.: 532899
Technical Specifications
- Media: Compressed Air
- Bore Diameter: 100 mm
- Stroke: 50 mm
- Bore X Stroke: 100×50 mm
- Rod Diameter: 25 mm
- Frame Dimensions: 112×230 mm
- Pneumatic Connection: G1/2
- Max Pressure: 12 bar
- Mode of Operation: Double
- Piston Rod End: Male
- Shape: Square
- Rod Direction: One Side
