Festo 532732 ISO Cylinder
Used
Available on request
ISO Cylinder
FESTO DNCB-32-250-PPV-A ISO Cylinder is a precision-engineered pneumatic actuator with a 32 mm bore diameter, 250 mm stroke, and double-acting operation. Designed for industrial automation, it features a male piston rod end, square shape, and G 1/8 pneumatic connection.1/8250mm32mmActuatorAirAutomationboreCompressedconnectionCylinderDNCB-32-250-PPV-Adouble-actingFestoGhigh-performanceIndustrialISOmalepistPneumaticStroke
New
In stock
This product is also available brand new
View New Version →
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

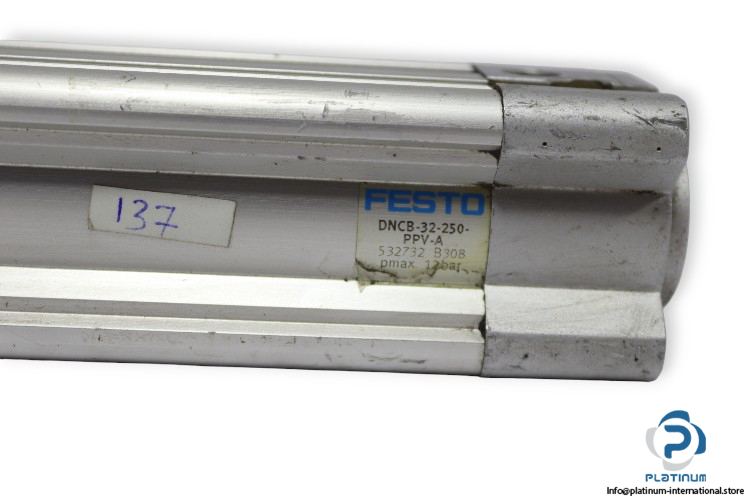

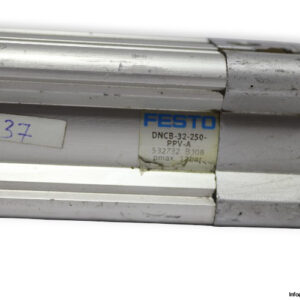

FESTO DNCB-32-250-PPV-A ISO Cylinder
The FESTO DNCB-32-250-PPV-A ISO Cylinder is a high-performance pneumatic actuator designed for industrial applications requiring precision, reliability, and efficiency. Built to ISO standards, this double-acting cylinder provides optimal force transmission and smooth operation, making it ideal for automation and control systems.
Manufacturer: FESTO
Type: ISO Cylinder
Model: DNCB-32-250-PPV-A
Part No.: 532732
| Media | Compressed Air |
| Bore Diameter | 32 mm |
| Stroke | 250 mm |
| Bore x Stroke | 32 x 250 mm |
| Rod Diameter | 12 mm |
| Frame Dimensions | 45 x 360 mm |
| Pneumatic Connection | G 1/8 |
| Maximum Pressure | 12 bar |
| Operation Mode | Double-Acting |
| Piston Rod End | Male |
| Shape | Square |
| Rod Direction | One Side |
