Festo DNCB-40-160-PPV-A ISO Cylinder
Used
In stock3 unitsReady to ship
ISO Cylinder
FESTO DNCB-40-160-PPV-A ISO Cylinder is engineered for precision and efficiency in industrial automation. Featuring a 40 mm bore diameter, 160 mm stroke, and double-acting operation, it provides smooth motion control with a robust square design and a male piston rod end.1/4160mm40mmActuatorAirAutomationboreCompressedconnectionCylinderDNCB-40-160-PPV-Adouble-actingFestoGhigh-performanceIndustrialISOPneumaticStroke
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

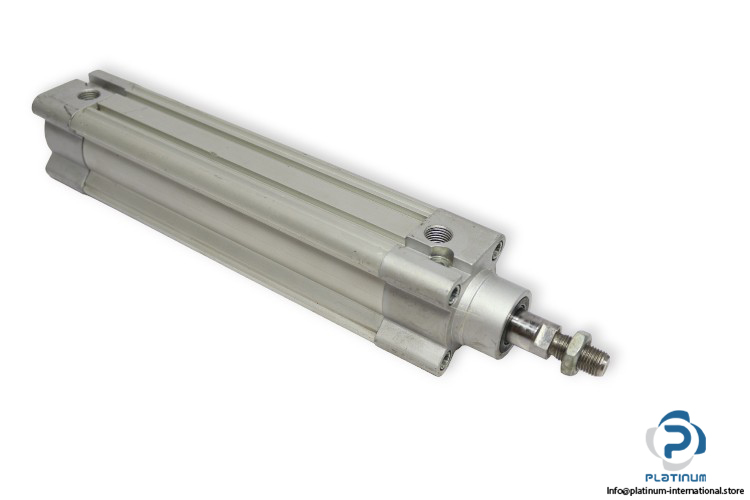

FESTO DNCB-40-160-PPV-A ISO Cylinder
The FESTO DNCB-40-160-PPV-A ISO Cylinder is a high-performance pneumatic actuator designed for precision motion control in industrial automation. Built for durability and efficiency, it ensures reliable operation in demanding environments.
Manufacturer: FESTO
Type: ISO Cylinder
Model: DNCB-40-160-PPV-A
Part No.: 532743
| Media | Compressed Air |
| Bore Diameter | 40 mm |
| Stroke | 160 mm |
| Bore x Stroke | 40 x 160 mm |
| Rod Diameter | 15 mm |
| Frame Dimensions | 55 x 290 mm |
| Pneumatic Connection | G 1/4 |
| Pressure Max. | 12 bar |
| Operation Mode | Double |
| Piston Rod End | Male |
| Shape | Square |
| Rod Direction | One Side |
