Festo DNCB-50-25-PPV-A ISO Cylinder
Used
In stock2 unitsReady to ship
ISO Cylinder
FESTO DNCB-50-25-PPV-A ISO Cylinder is engineered for high-precision pneumatic applications. With a 50 mm bore diameter, 25 mm stroke, and double-acting operation, it ensures optimal motion control and efficiency. Featuring a male piston rod end and G 1/4 pneumatic connection, it is ideal for industrial automation.25mm50mmActuatorAirAutomationboreCompressedCylinderDNCB-50-25-PPV-Adouble-actingFestohigh-precisionIndustrialISOPneumaticsquStroke
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

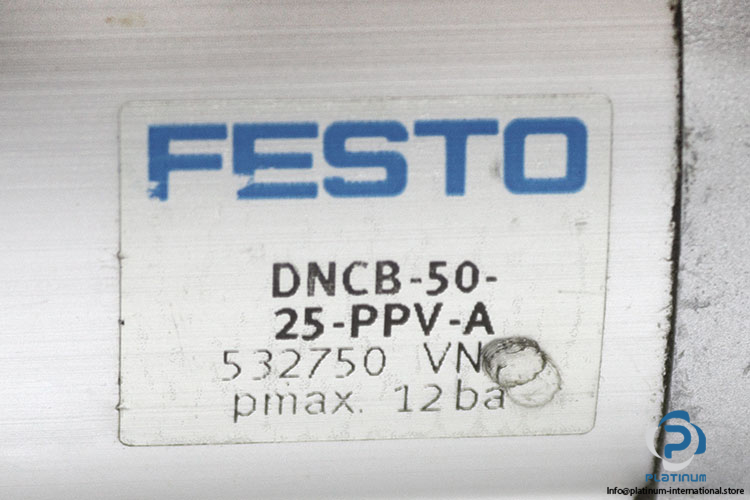

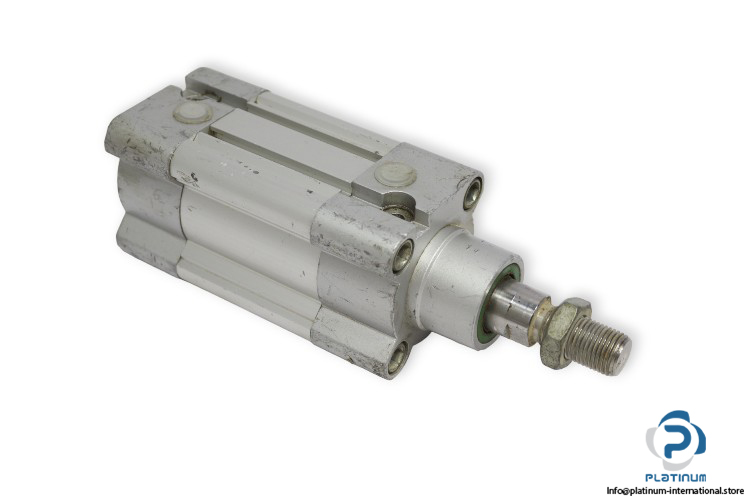

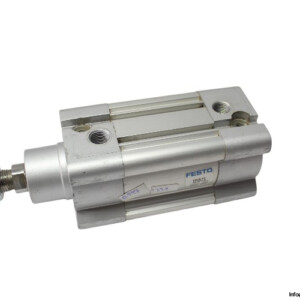

FESTO DNCB-50-25-PPV-A ISO Cylinder
The FESTO DNCB-50-25-PPV-A ISO Cylinder is a high-performance pneumatic actuator designed for precision motion control in industrial automation. With a robust construction and compliance with ISO standards, it delivers reliable and efficient operation in various pneumatic systems.
Manufacturer: FESTO
Type: ISO Cylinder
Model: DNCB-50-25-PPV-A
Part No.: 532750
| Media | Compressed Air |
| Bore Diameter | 50 mm |
| Stroke | 25 mm |
| Bore x Stroke | 50 x 25 mm |
| Rod Diameter | 20 mm |
| Frame Dimensions | 65 x 160 mm |
| Pneumatic Connection | G 1/4 |
| Pressure Max. | 12 bar |
| Operation Mode | Double |
| Piston Rod End | Male |
| Shape | Square |
| Rod Direction | One Side |
