Festo DNCB-63-160-PPV-A ISO Cylinder
Used
In stock1 unitReady to ship
ISO Cylinder
FESTO ISO Cylinder DNCB-63-160-PPV-A features a 63 mm bore diameter and 160 mm stroke, designed for double-acting pneumatic operations. With a maximum pressure of 12 bar, it ensures reliable performance in demanding industrial applications.1603/863AirboreCompressedconnectionCylinderdiameterDNCB-63-160-PPV-Adouble-actingFestoGIndustrialISOmmPneumaticSolutionsStroke
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

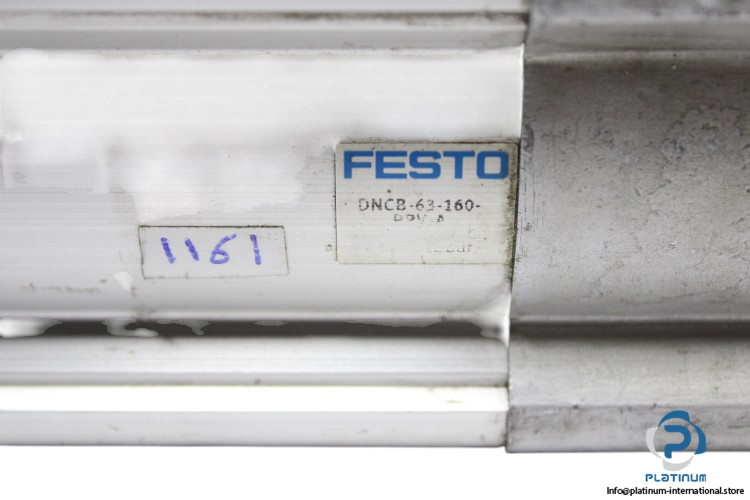

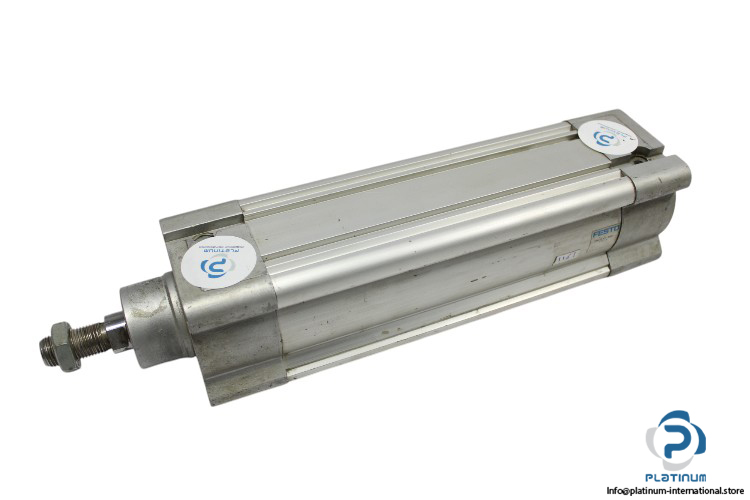

FESTO ISO Cylinder DNCB-63-160-PPV-A
The FESTO ISO Cylinder DNCB-63-160-PPV-A is designed for precise and efficient pneumatic operations. With its robust construction and reliable performance, this cylinder is ideal for applications requiring a double-acting operation and high-pressure endurance. It features a 63 mm bore diameter and a 160 mm stroke, making it suitable for a wide range of industrial applications.
Manufacturer: FESTO
Type: ISO Cylinder
Model: DNCB-63-160-PPV-A
Technical Specifications
- Media: Compressed Air
- Bore Diameter: 63 mm
- Stroke: 160 mm
- Bore x Stroke: 63 x 160 mm
- Rod Diameter: 20 mm
- Frame Dimensions: 75 x 315 mm
- Pneumatic Connection: G 3/8
- Pressure Max.: 12 bar
- Operation Mode: Double
- Piston Rod End: Male
- Shape: Square
- Rod Direction: One Side
