Festo DNN-80-40-PPV-A ISO Cylinder
Used
In stock1 unitReady to ship
ISO Cylinder
FESTO ISO Cylinder DNN-80-40-PPV-A is designed for compressed air systems with a bore diameter of 80 mm and stroke of 40 mm. With a max pressure of 12 bar, this double-acting square-shaped cylinder ensures reliable performance in industrial applications.80ActingAirboreCompressedCylinderDNN-80-40-PPV-ADoubleFestoHighIndustrialISOmalemmPistonPneumaticPressureRODSquareSystem
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

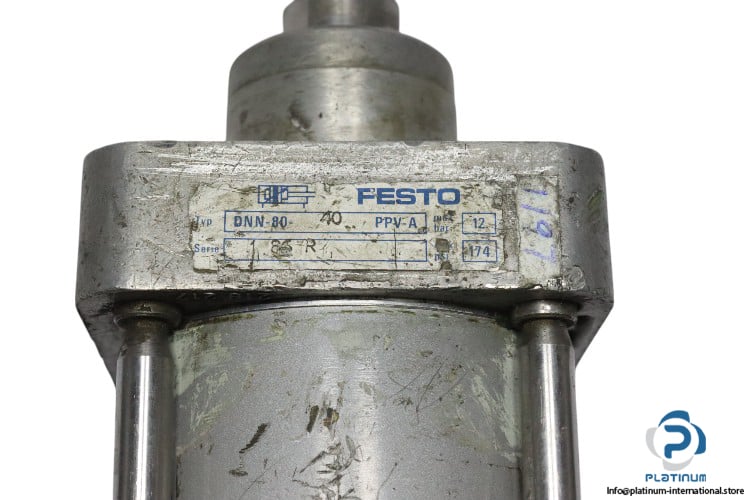

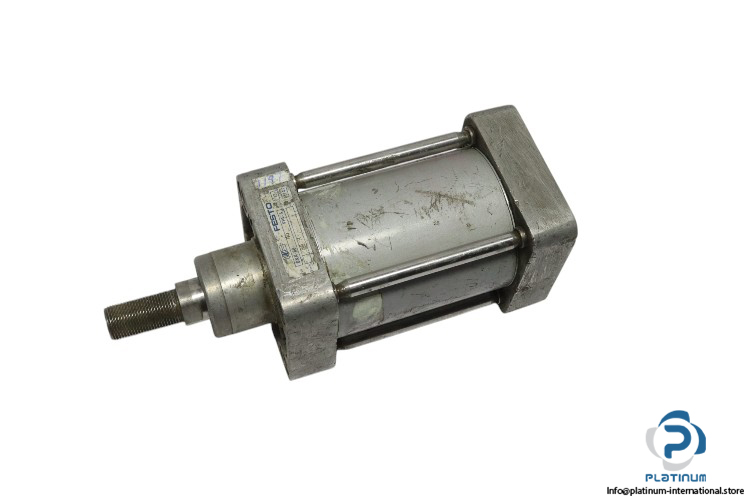

FESTO ISO Cylinder DNN-80-40-PPV-A
The FESTO ISO Cylinder DNN8040PPVA is a high-performance pneumatic cylinder designed for a wide range of industrial applications. This double-acting cylinder is built for durability and precision, providing reliable operation with compressed air. With its square shape and male piston rod end, it’s ideal for systems requiring high pressure and precise control.
Manufacturer: FESTO
Model: DNN-80-40-PPV-A
Technical Specifications
- Media: Compressed Air
- Bore Diameter: 80 mm
- Stroke: 40 mm
- Bore x Stroke: 80 x 40 mm
- Rod Diameter: 25 mm
- Frame Dimensions: 96 x 210 mm
- Pneumatic Connection: G 3/8
- Pressure Max.: 12 bar
- Operation Mode: Double
- Piston Rod End: Male
- Shape: Square
- Rod Direction: One Side
