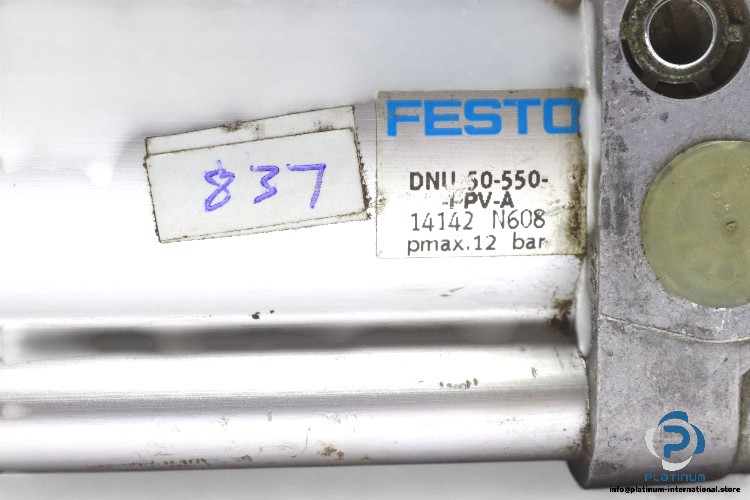

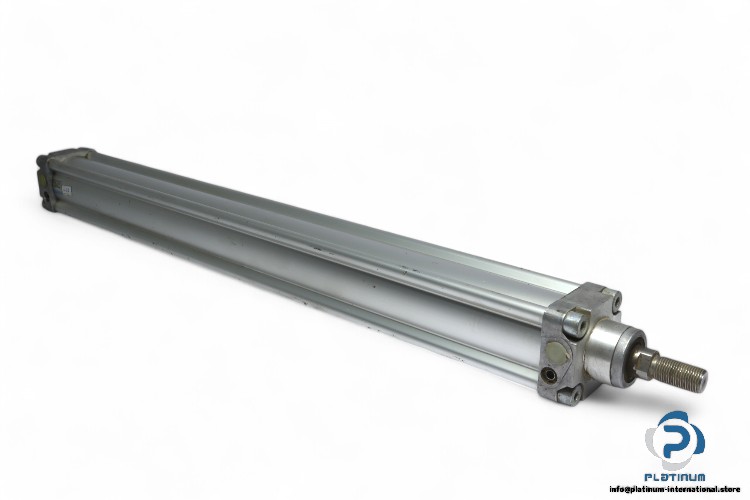

Festo DNU-50-550-PPV-A ISO Cylinder

Manufacturer: FESTO
Type: ISO Cylinder
Model: DNU-50-550-PPV-A
Part No.: 14142

Media: Compressed Air
Stroke: 550 mm
Bore diameter: 50 mm
Bore X Stroke: 50×550 mm
Rod diameter: 20 mm
Fram Dimensions: 65X685 mm
Pneumatic connection: G1/4
Max pressure: 12 bar
Mode of operation: Double
Piston rod end: Male
Shape: Square
Rod Direction: One Sid
