Festo DSBC-125-100-PPVA-N3T1 ISO Cylinder
Used
Available on request
ISO Cylinder
FESTO ISO Cylinder DSBC-125-100-PPVA-N3T1 is designed for compressed air applications, featuring a 125 mm bore diameter, 100 mm stroke, and 10 bar max pressure. With a square shape and male piston rod end, it offers durable and reliable operation in industrial systems.10125AirbarComponentsCompressedCylinderDoubleDSBC-125-100-PPVA-N3T1EndFestoIndustrialISOmalemmOperationPistonPneumaticPressureRODShapeSquareSyste
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

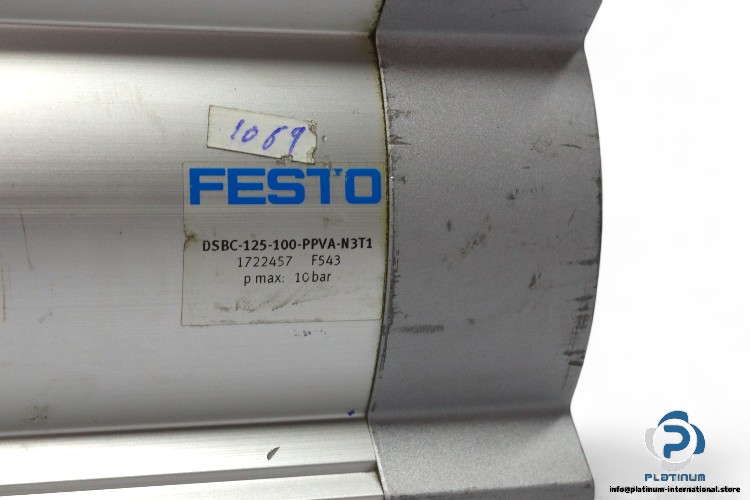

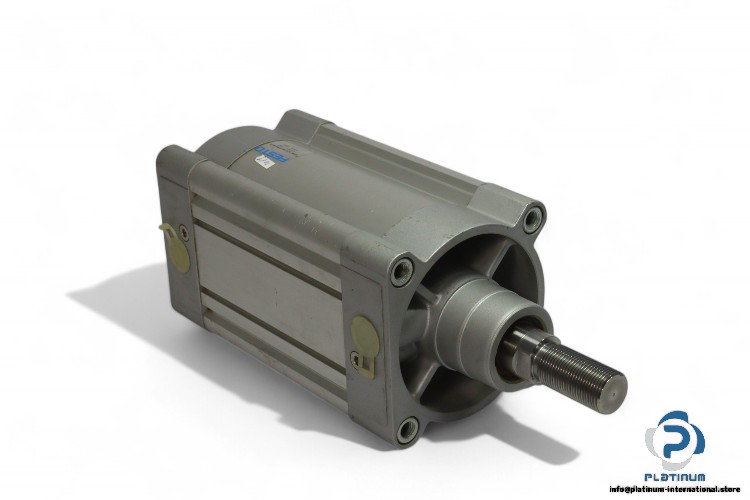

FESTO ISO Cylinder DSBC-125-100-PPVA-N3T1
The FESTO ISO Cylinder DSBC-125-100-PPVA-N3T1 is designed for efficient pneumatic applications, featuring a robust design and reliable performance in industrial environments. With a bore diameter of 125 mm and stroke of 100 mm, this cylinder offers powerful operation in a variety of systems.
Manufacturer: FESTO
Model: DSBC125100PPVAN3T1
Part No.: 1722457
Technical Specifications
- Media: Compressed Air
- Bore Diameter: 125 mm
- Stroke: 100 mm
- Bore x Stroke: 125 x 100 mm
- Rod Diameter: 32 mm
- Frame Dimensions: 137 x 305 mm
- Pneumatic Connection: G 1/2
- Pressure Max.: 10 bar
- Operation Mode: Double
- Piston Rod End: Male
- Shape: Square
- Rod Direction: One Side
