Festo DSBC-63-200-C-PPVA ISO Cylinder With Break
Used
In stock1 unitReady to ship
ISO Cylinder with Brake
The Festo DSBC-63-200-C-PPVA is an ISO-standard pneumatic cylinder with brake, featuring 63 x 200 mm bore and stroke, a G 3/8 connection, and integrated with the KP-20-2000 clamping cartridge delivering 2000 N holding force.1784592003/863ActingAirAutomationboreBrakecartridgeClampingCompressedCylinderDoubleDSBC-63-200-C-PPVAFestoGHoIndustrialISOKP-20-2000malemmPistonPneumaticPortRODShapeSquareStrokeWith
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

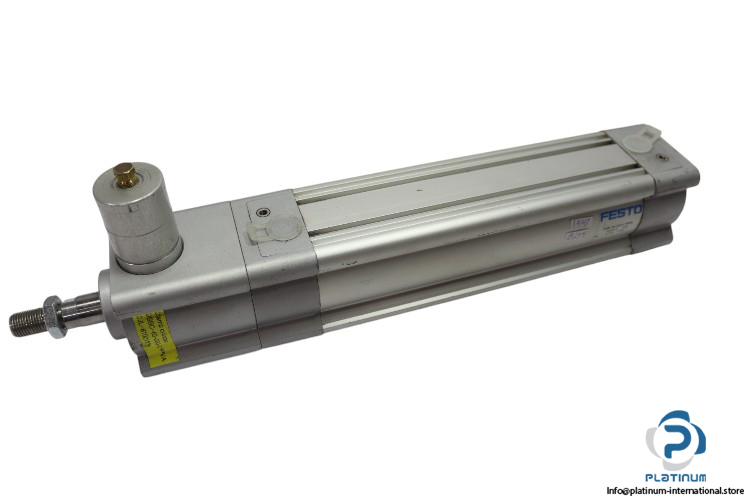

Festo DSBC-63-200-C-PPVA ISO Cylinder with Brake
The Festo DSBC-63-200-C-PPVA is a robust ISO-standard pneumatic cylinder equipped with a brake function for enhanced precision and safety in industrial applications. Designed for high performance and durability, it is paired with the FESTO KP-20-2000 clamping cartridge to provide additional holding force and control.
Manufacturer: FESTO
Type: ISO Cylinder with Brake

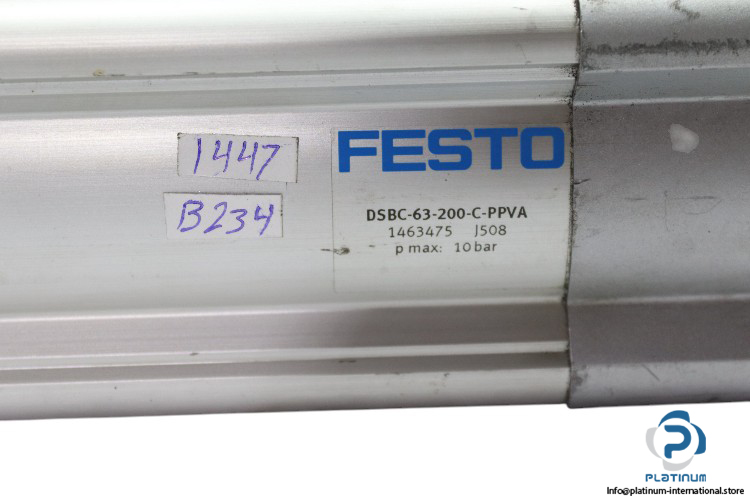

Model: DSBC-63-200-C-PPVA
Part No.: 1463475
Attachment:

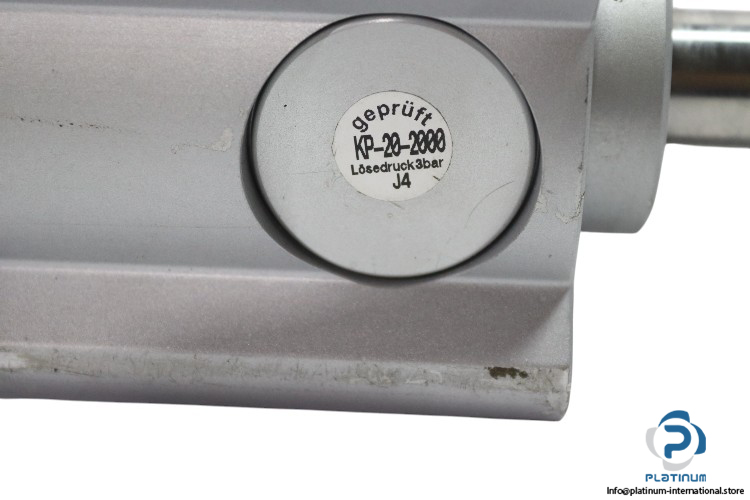

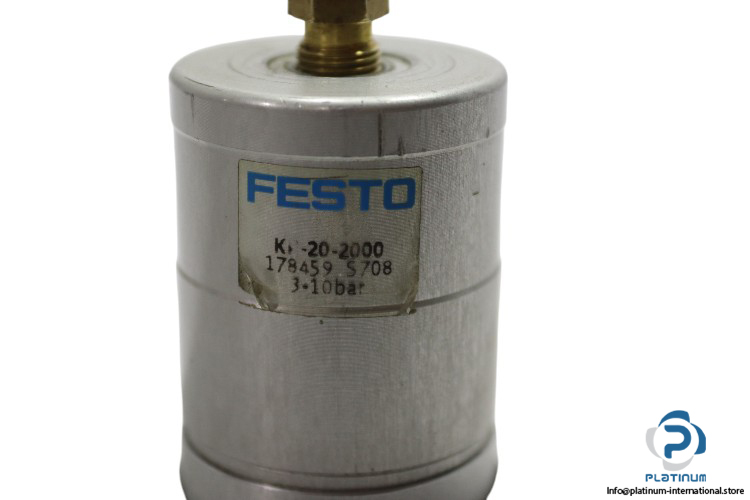

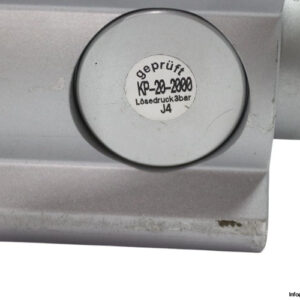

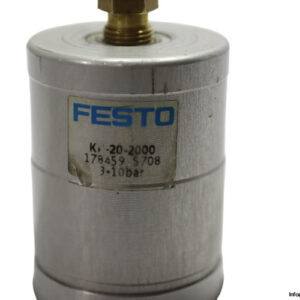

FESTO 178459 Clamping Cartridge
| Media | Compressed Air |
| Bore Diameter | 63 mm |
| Stroke | 200 mm |
| Bore x Stroke | 63 x 200 mm |
| Rod Diameter | 20 mm |
| Frame Dimensions | 75 x 415 mm |
| Pneumatic Connection | G 3/8 |
| Pressure Max. | 10 bar |
| Operation Mode | Double |
| Piston Rod End | Male |
| Shape | Square |
| Rod Direction | One Side |
| Part No. | 178459 |
| Medium | Compressed Air |
| Pressure | 3 / 10 bar |
| Holding Force | 2000 N |
| Action Direction | On Both Sides |
