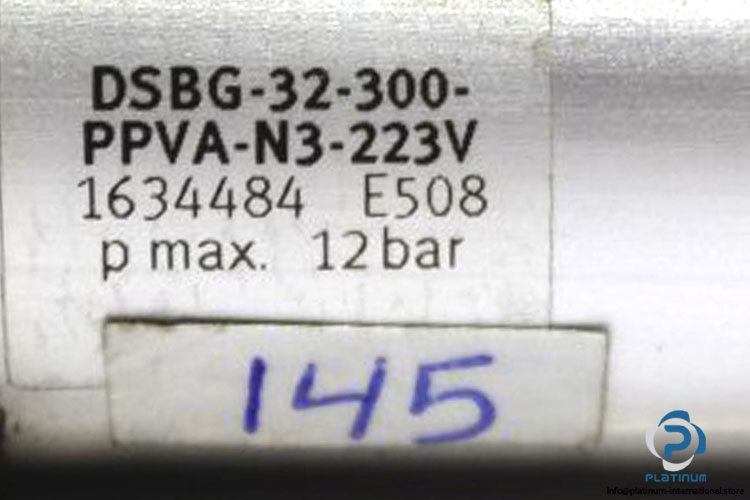

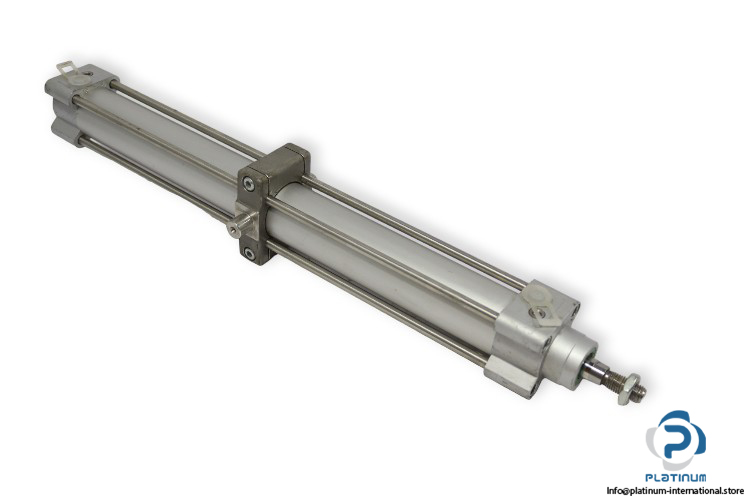

Festo DSBG-32-300-PPVA-N3-223V ISO Cylinder

Manufacturer: Festo
Type: ISO Cylinder
Model: DSBG32300PPVAN3223V
Part. No: 1634484


Media: Compressed Air
Stroke (mm): 300
Bore diameter (mm): 32
BorexStroke (mm): 32×300
Rod diameter (mm): 12
Fram Dimensions (mm): 45×415
Maximum pressure (bar): 12
Pneumatic connection: G1/8
Mode of operation: Double
Piston rod end: Male
Shape: Square
Rod Direction: One Side
