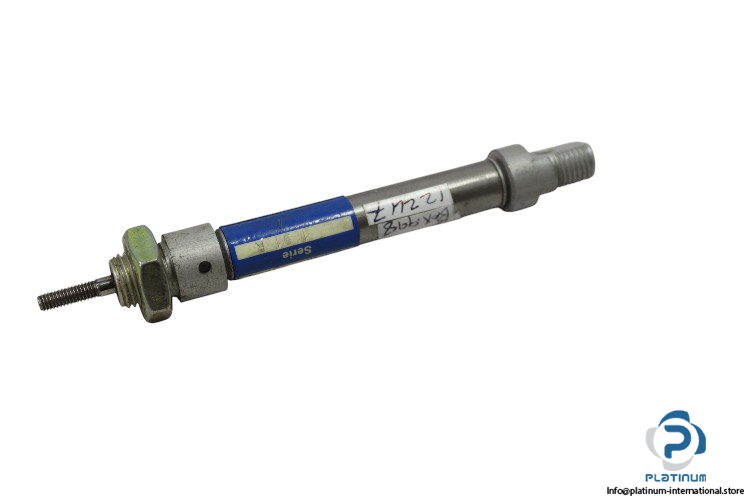

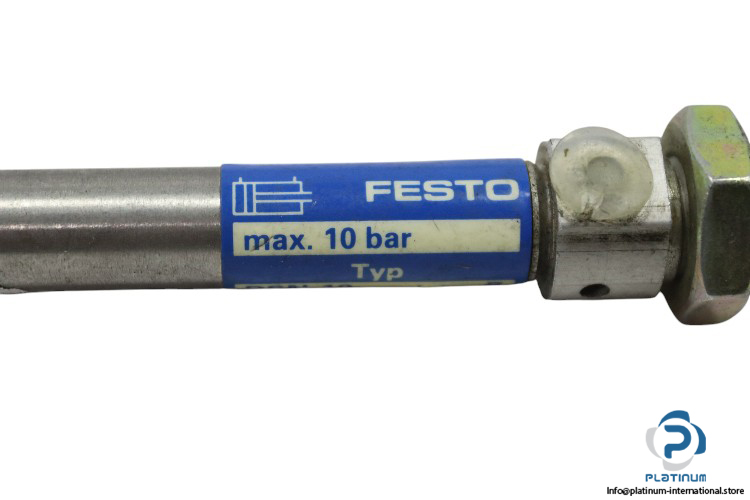

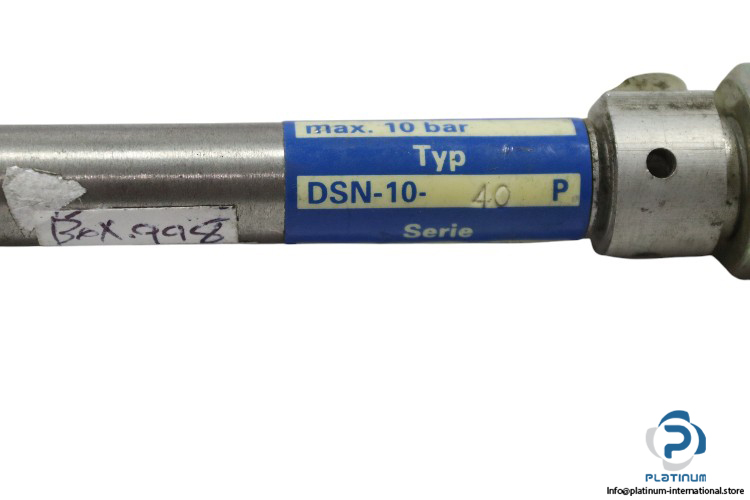

Festo DSN-10-40-P ISO Cylinder
Used
In stock1 unitReady to ship
Festo DSN-10-40 P ISO Cylinder “ Compact pneumatic actuator with 10 mm piston, 40 mm stroke, double acting operation, and flexible cushioning for industrial use.
1040ActingActuatorAirAutomationCompactCompressedCushioningCylinderDoubleDSN-10-40FestoFlexibleHigh-AlloyIndustrialISOmmpPistonPneumaticPneumaticsRODSteelStroke
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
Festo DSN-10-40 P ISO Cylinder
The Festo DSN-10-40 P is a compact ISO-standard pneumatic cylinder built for precise actuation in automated systems. With flexible cushioning rings and a durable construction, it ensures reliable performance across a wide temperature and pressure range.
Manufacturer: Festo
Type: ISO Cylinder
Model: DSN-10-40 P
| Stroke | 40 mm |
| Piston Diameter | 10 mm |
| Cushioning | Flexible Cushioning Rings/Plates at Both Ends |
| Port Size | 5 mm |
| Piston-Rod End | Male Thread |
| Mode of Operation | Double Acting |
| Operating Medium | Compressed Air |
| Pressure | Max. 10 bar |
| Ambient Temperature | -20 to 80 °C |
| Cover Material | Wrought Aluminum Alloy |
| Material Seals | NBR |
| Material Piston Rod | High-Alloy Steel |
| Material Cylinder Barrel | High-Alloy Steel |
