Festo DSRL-25-180P-FW Semi-Rotary Drive
Used
In stock1 unitReady to ship
Semi-Rotary Drive
FESTO DSRL-25-180P-FW Semi-Rotary Drive is designed for precise rotational motion control in pneumatic automation systems. With a 0-180° adjustable rotation angle, 1.8° cushioning angle, and double-acting operation, it ensures smooth and reliable performance. Compatible with a 5 mm pneumatic connection and operating at pressures from 1.5 to 8 bar.180-degreeActuatorAirAutomationCompressedControldouble-actingDriveDSRL-25-180P-FWFestoIndustrialMotionPneumaticPrecisionRRotaryrotationSemi-RotarySystem
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

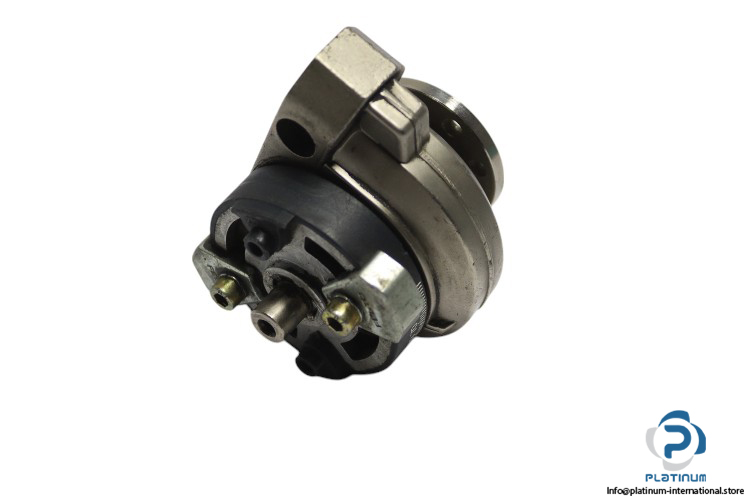

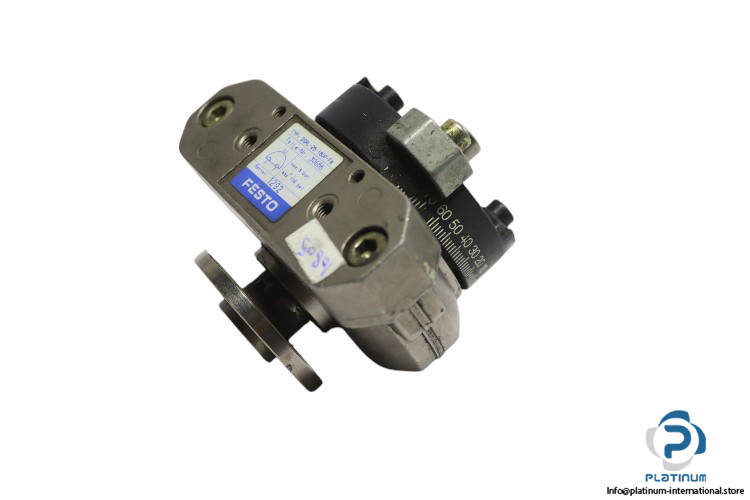

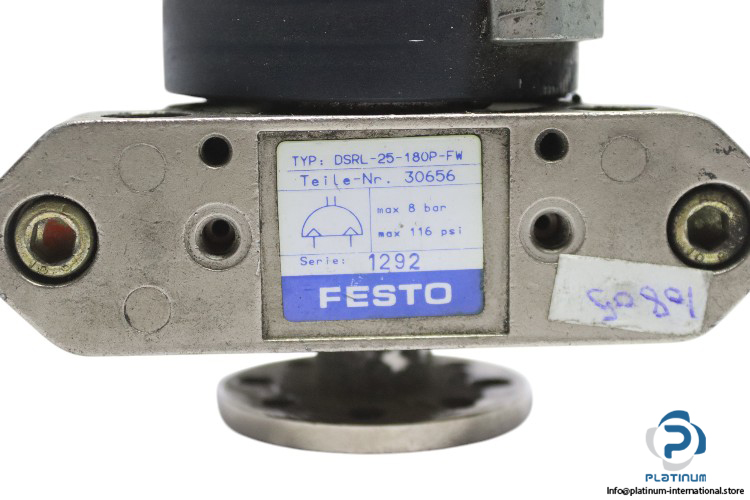

FESTO DSRL-25-180P-FW Semi-Rotary Drive
The FESTO DSRL-25-180P-FW Semi-Rotary Drive is a high-precision pneumatic actuator designed for applications requiring controlled rotational motion. With a compact and efficient design, it provides smooth and precise angular positioning for industrial automation and motion control systems.
Manufacturer: FESTO
Type: Semi-Rotary Drive
Model: DSRL-25-180P-FW
Part No.: 30656
| Size | 25 |
| Fluid | Compressed Air |
| Rotation Angle Adjustment Range | 0 ... 180° |
| Cushioning Angle | 1.8° |
| Operating Pressure | 1.5 ... 8 bar |
| Operation Mode | Double-Acting |
| Pneumatic Connection | 5 mm |
| Temperature Range | -10 / 60 °C |
