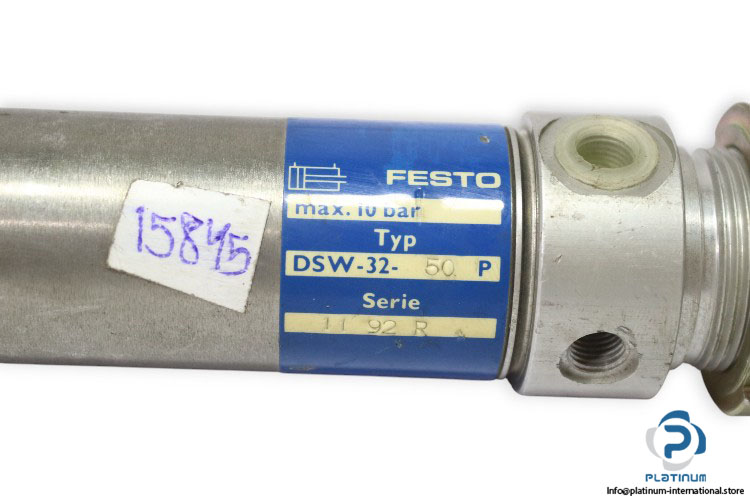

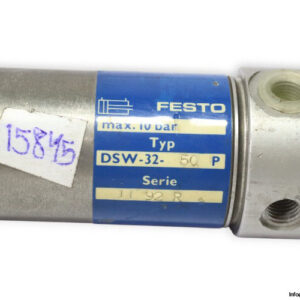

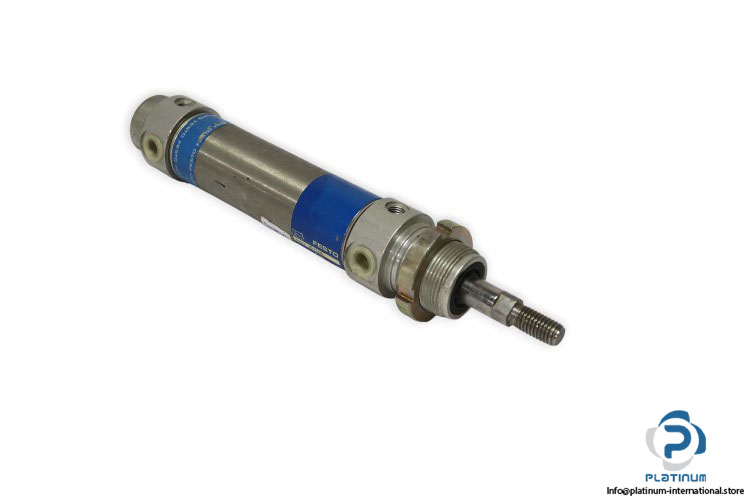

Festo DSW-32-50-P 32X50 Round Cylinder
Used
Available on request
Round Cylinder
Festo DSW3250P pneumatic round cylinder with 50 mm stroke, 32 mm piston diameter, and G1/8 connection. Double-acting with single-ended piston rod, built for reliable industrial performance.1:132mm50mm92ActingAirCylinderDoubleDSW3250PEndedFestoG1/8IndustrialPistonPneumaticRRODRoundSeriesSingleStroke
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
Festo DSW3250P Round Cylinder
The Festo DSW3250P Round Cylinder from series 11 92 R is a reliable pneumatic actuator designed for precise and durable motion in industrial applications. With a robust circular shape, double-acting piston action, and single-ended piston rod, it ensures efficiency and performance under demanding conditions.
Manufacturer: Festo
Type: Round Cylinder
Model: DSW3250P
Series: 11 92 R
| Stroke Length | 50 mm |
| Piston Diameter | 32 mm |
| Rod Diameter | 12 mm |
| Pneumatic Connection | G1/8 |
| Operating Medium | Compressed Air |
| Max. Operating Pressure | 10 bar |
| Shape | Circular |
| Piston Action | Double-acting |
| Variants | Single-ended piston rod |
| Temperature Range | -20 to 80 °C |
