Festo ESNU-12-10P-A ISO Cylinder
Used
In stock1 unitReady to ship
Festo ESNU-12-10-P-A ISO Cylinder “ Compact single-acting pneumatic cylinder with 12 mm piston, 10 mm stroke, and male-threaded rod. Built from corrosion-resistant stainless steel with elastic cushioning.
1012ActingAutomationCompactCushioningCylinderElasticESNU-12-10-P-AFestoIndustrialISOmalemmPistonPneumaticPneumaticsRODSinglestainlessSteelStrokeThread
New
In stock
This product is also available brand new
View New Version →
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

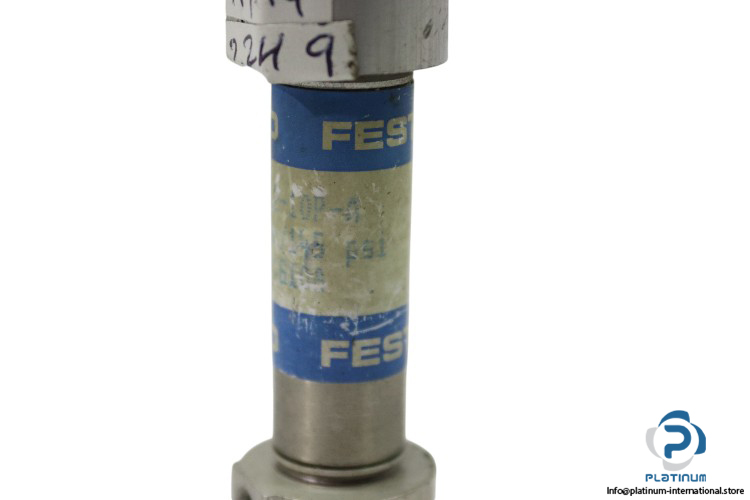

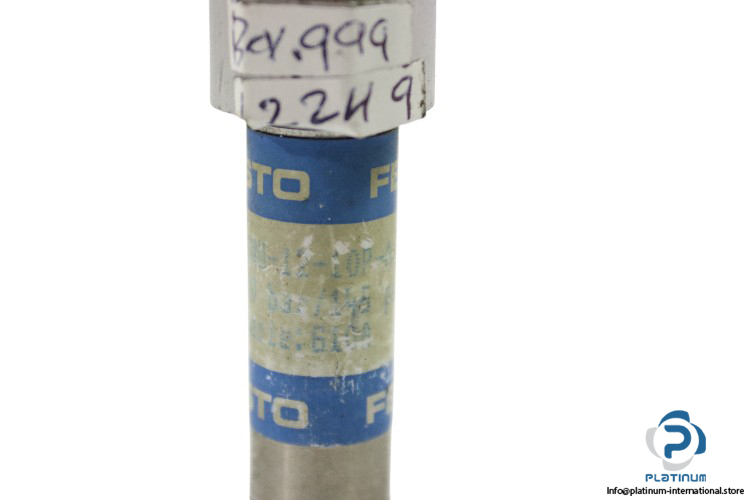

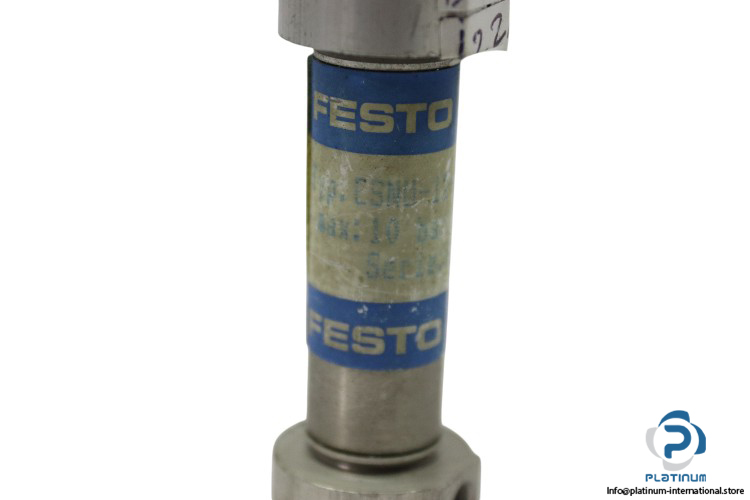

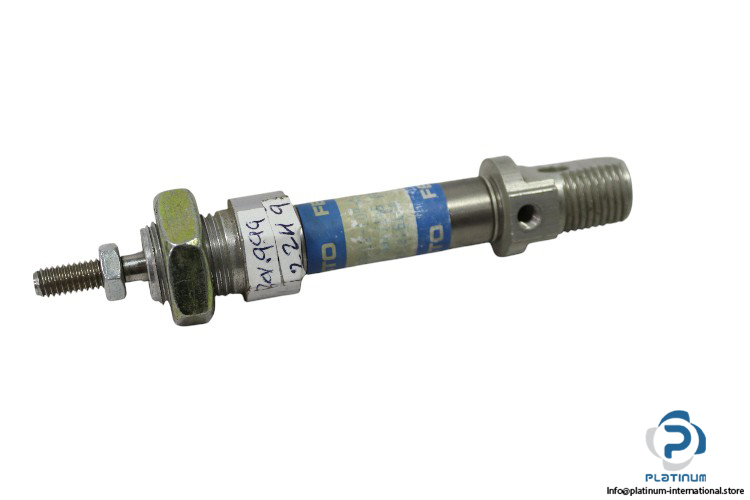

Festo ESNU-12-10-P-A ISO Cylinder
The Festo ESNU-12-10-P-A is a compact ISO-standard cylinder designed for efficient single-acting pneumatic applications. Built with corrosion-resistant materials, it features elastic cushioning at both ends and a male-threaded piston rod for reliable and controlled actuation in confined spaces.
Manufacturer: Festo
Type: ISO Cylinder
Model: ESNU-12-10-P-A
| Stroke | 10 mm |
| Piston Diameter | 12 mm |
| Cushioning | Elastic Cushioning Rings/Plates at Both Ends |
| Port Size | 5 mm |
| Piston-Rod End | Male Thread |
| Mode of Operation | Pushing, Single-Acting |
| Operating Medium | Compressed Air |
| Maximum Pressure | 10 bar |
| Ambient Temperature | -20 to 80 °C |
| Cover Material | Wrought Aluminum Alloy |
| Material “ Seals | NBR |
| Material “ Piston Rod | High-Alloy Stainless Steel |
| Material “ Cylinder Barrel | High-Alloy Stainless Steel |
