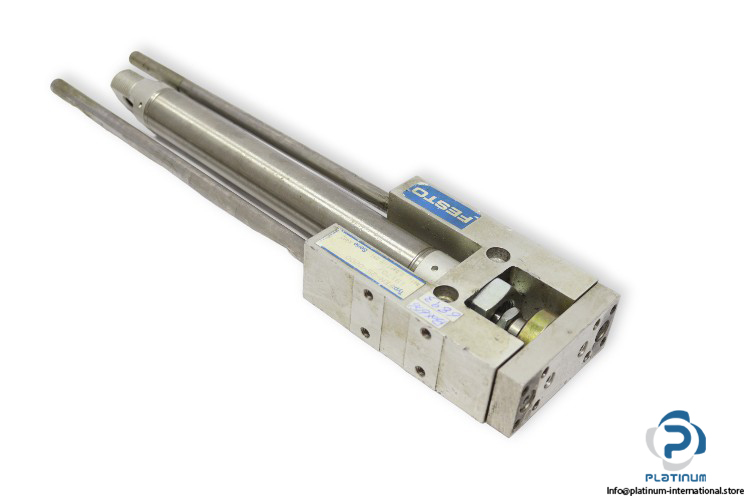

Festo FEN-25-0200 Compact Cylinder

Manufacturer: FESTO
Type: Compact Cylinder

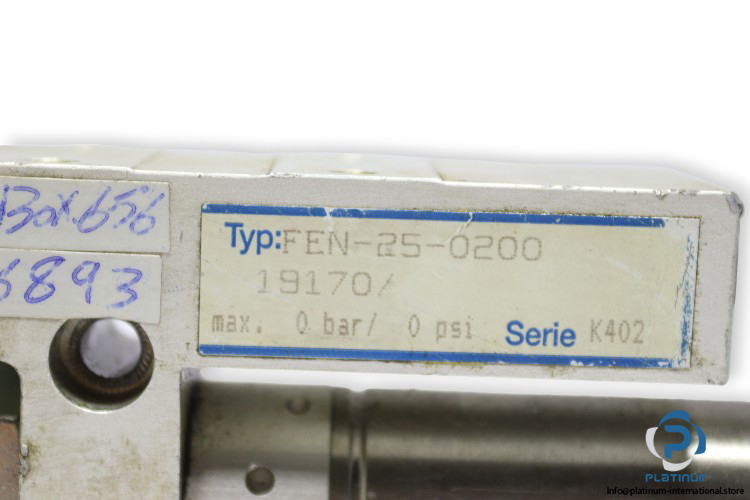

Model: FEN-25-0200
Part No.: 19170

Stroke Length: 200 mm
Piston Diameter: 25 mm
Guide: Sliding guide
Structural design: Guide
Displacement force: 15 N
Additional moving mass per 10 mm stroke: 12 g
Center of gravity of moving mass with 10 mm stroke: 4.7 mm
Type of mounting: With internal thread
Material of guide component: High-alloy steel
Housing material: Wrought aluminum alloy, anodized
Port size: 1/8″
Temperature: -20 … 80 °C
