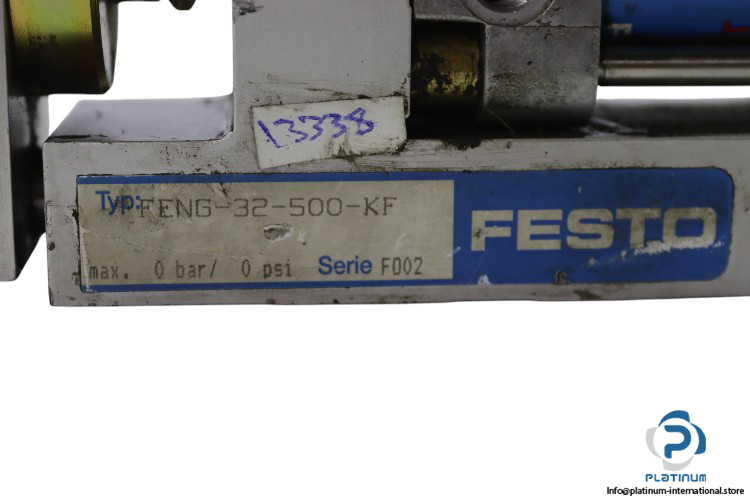

Festo FENG-32-500-KF Guide Unit
Used
In stock1 unitReady to ship
444,44$

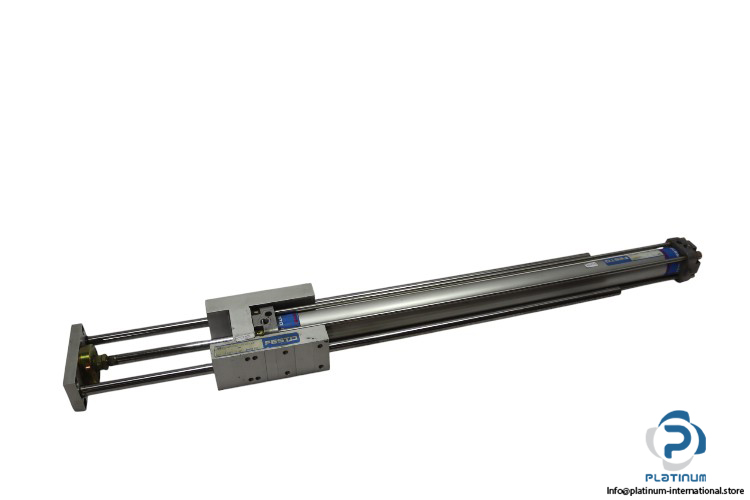

Guide Unit FESTO FENG-32-500-KF pneumatic guide unit with recirculating ball bearing guide, 32 mm bore, 500 mm stroke, and attached DNG-32-500-PRVA standard cylinder for precise linear motion and industrial automation applications.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
| Part No. | 34498 |
| Fluid | Compressed Air |
| Cylinder Diameter | 32 mm |
| Stroke | 500 mm |
| Guide | Recirculating ball bearing guide |
| Design | Guidance |
| Max. force Fy | 750 N |
| Max. force Fy static | 1020 N |
| Max. force Fz | 750 N |
| Max. force Fz static | 1020 N |
| Type of mounting With | female thread |
| Max Working Pressure | 10 bar |
| Pneumatic Connection | G1/8 |
| Material housing | Anodised wrought aluminium alloy |
| Ambient Temperature Range | -20… 80°C |

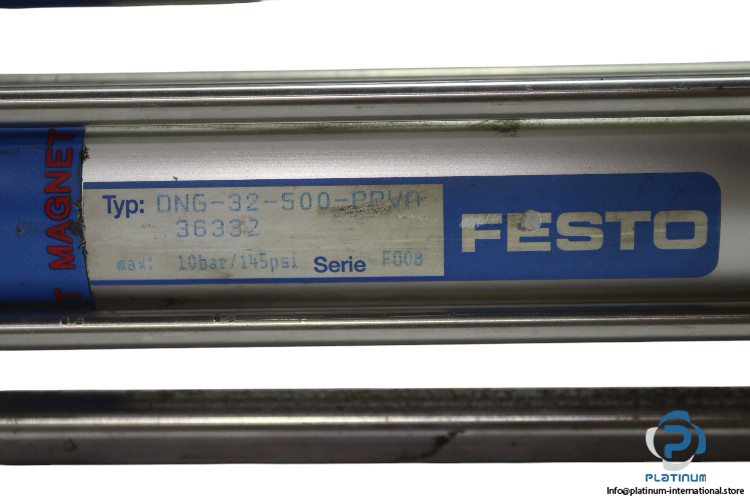

| Attached with | FESTO DNG-32-500-PRVA Standard cylinder |
| Part No. cylinder | 36332 |
| Cylinder Diameter, cylinder | 32 mm |
| Stroke, cylinder | 500 mm |
| Max Working Pressure , cylinder | 10 bar |
| Pneumatic Connection, cylinder | G1/8 |
| Material housing, cylinder | Anodised wrought aluminium alloy |
| Ambient Temperature ,cylinder | -20… 80°C |
| Condition | Used |
| SKU | 1096760 |
| Weight | 4 |
