Festo HEM-M3-G1/2-10… Pressure Build-UP Valve
Used
In stock1 unitReady to ship
PRESSURE BUILD-UP VALVE
FESTO HEM-M3-G1/2-10 pressure build-up valve with 24V DC cable and solenoid coil, delivering 3800 l/min flow rate and IP65 protection in industrial pneumatic systems.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

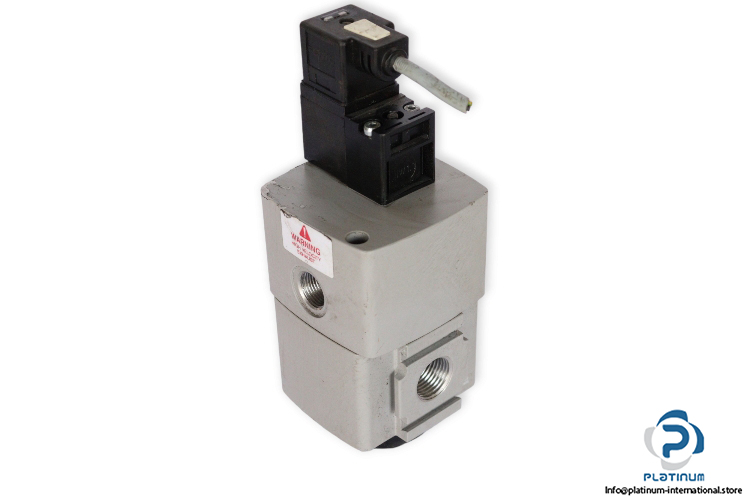

FESTO HEM-M3-G1/2-10 PRESSURE BUILD UP VALVE WITH CABLE AND SOLENOID COIL
The FESTO HEM-M3-G1/2-10 is a high-performance pressure build-up valve designed for industrial pneumatic applications. Featuring a poppet seat design and throttleable exhaust-air function, this valve offers efficient air control and reliable operation across a wide pressure and temperature range.
Manufacturer: FESTO
Type: Pressure Build-Up Valve

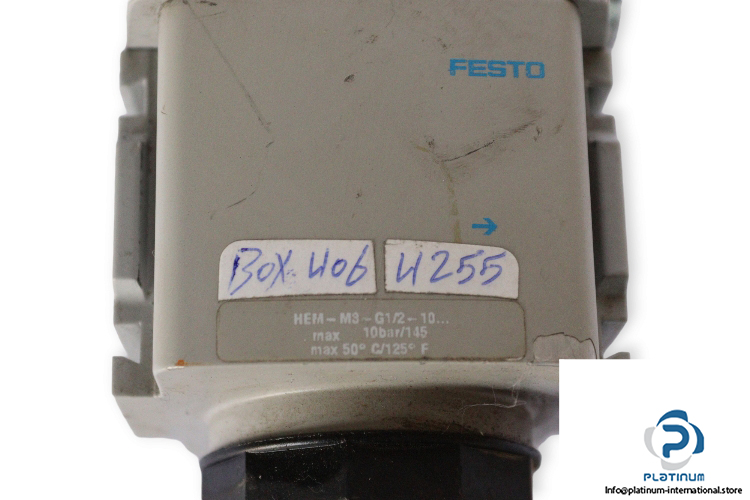

Model: HEM-M3-G1/2-10
| Fluid | Air |
| Design Structure | Poppet seat |
| Exhaust-Air Function | Throttleable |
| Type of Actuation | Electrically |
| Operating Pressure | 2 ... 10 bar |
| Nominal Flow Rate | 3800 l/min |
| Protection Class | IP65 |
| Ambient Temperature | -10 ... 50 °C |
| Port Size | G1/2 |

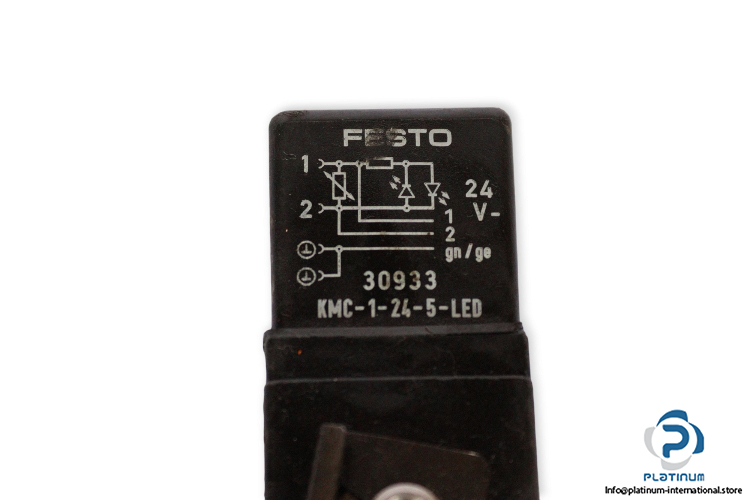

| Attachment | FESTO 30933 PRESSURE CONNECTING CABLE |
| Part No. | 30933 |
| Nominal Operating Voltage | 24 V DC |
| Electrical Connection | Socket |

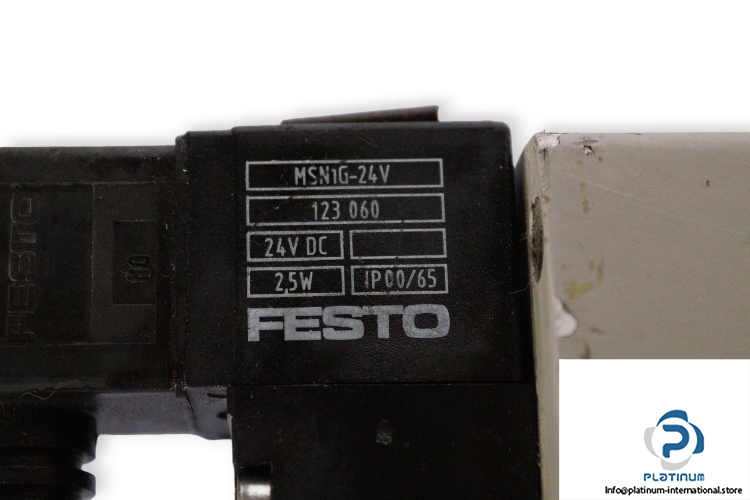

| Attachment | FESTO 123060 SOLENOID COIL |
| Part No. | 123060 |
| Supply Voltage | 24 V DC |
| Power Consumption | 2.5 W |
| Electrical Connection | 3-pin |
