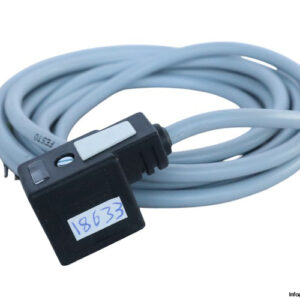

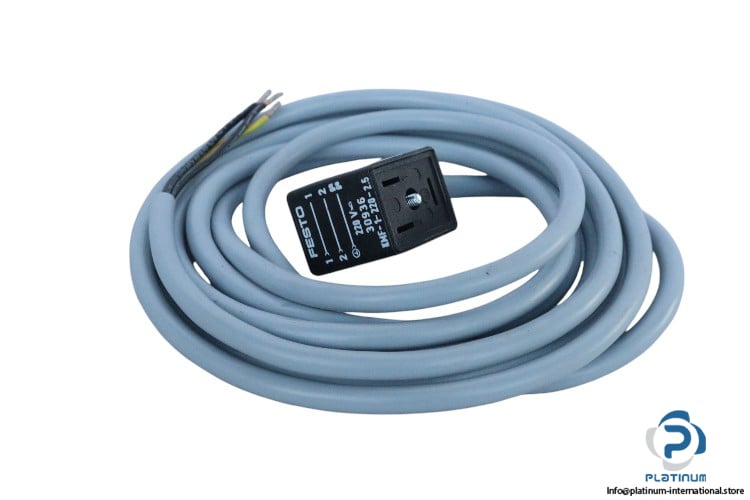

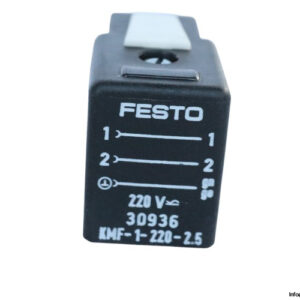

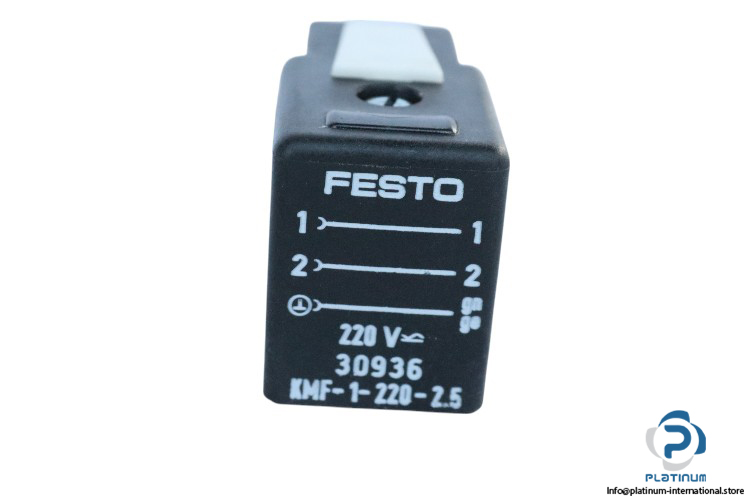

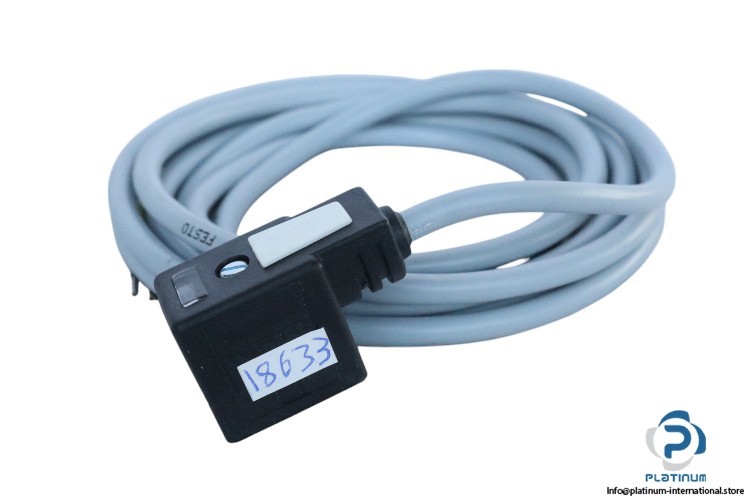

Festo KMF-1-220-2.5 Sockets With Cable
The Festo KMF-1-220-2.5 Socket with Cable features a central mounting screw (M3), a permissible voltage range of 0 to 240 V, and cable sizes of 3 x 18 gauge (0.75 mm²). It offers IP67 protection and operates in temperatures from -25°C to 80°C.
Product Overview
Manufacturer: Festo
Type: Sockets with Cable
Model: KMF-1-220-2.5
Part No.: 30936
The Festo KMF-1-220-2.5 Socket with Cable offers robust electrical connectivity with a central mounting screw (M3) for secure installation. The permissible voltage range for this socket is 0 to 240 V. It features a cable size of 3 x 18 gauge (0.75 mm²), with two available cable lengths: 8.2 ft (2.5 m) and 16.4 ft (5 m). The materials used for the housing are polymer, with PVC cables and Cu Sn contacts for high durability. With an IP67 protection rating, this socket is designed for use in demanding environments, offering reliable performance across a wide operating temperature range of -25 to 80°C.
Key Specifications:
- Mounting: Central mounting screw, M3
- Permissible Voltage: 0 to 240 V
- Cable Wire Size: 3 x 18 gauge / 0.75 mm²
- Cable Lengths: 8.2 ft (2.5 m) and 16.4 ft (5 m)
- Materials: Housing: Polymer, Cable: PVC, Contacts: Cu Sn
- Degree of Protection: IP 67
- Operating Temperature: -25 to 80°C
This socket is ideal for a wide range of industrial applications, ensuring high-quality and secure connections under challenging conditions.
