Festo LFR-D-Maxi Filter Regulator
FESTO Filter Regulator LFR-D-MAXI “ Durable compressed air filter regulator with a 16 bar max input, 12 bar max output, and flow rates up to 9,500 l/min. Ideal for industrial pneumatic systems.
FESTO Filter Regulator LFRDMAXI
Manufacturer: FESTO
Type: Filter Regulator
Model: LFR-D-MAXI
Part No.: 186489

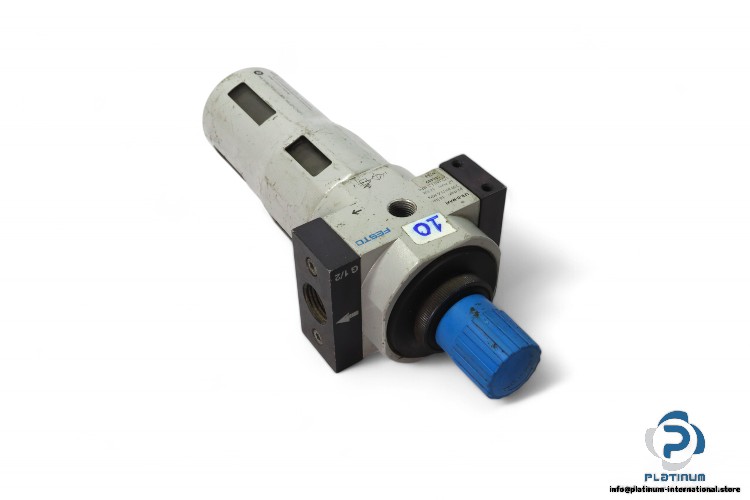

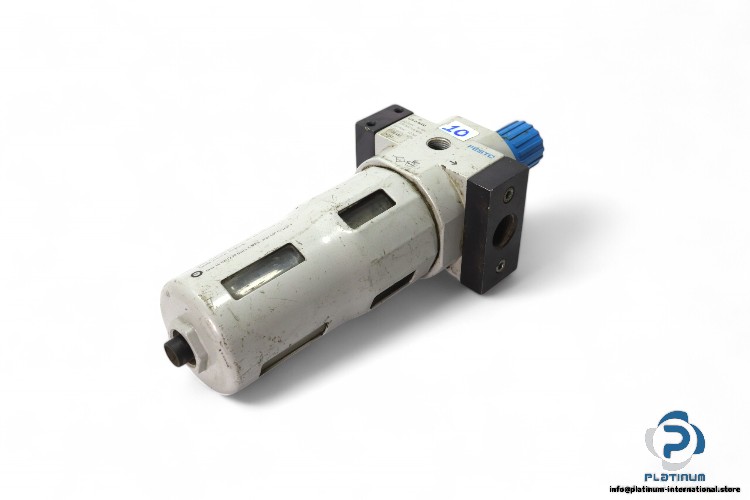

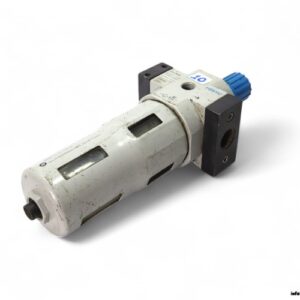

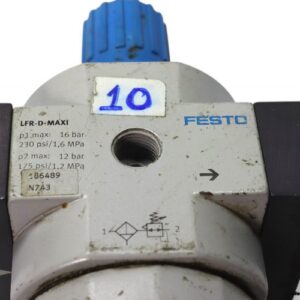

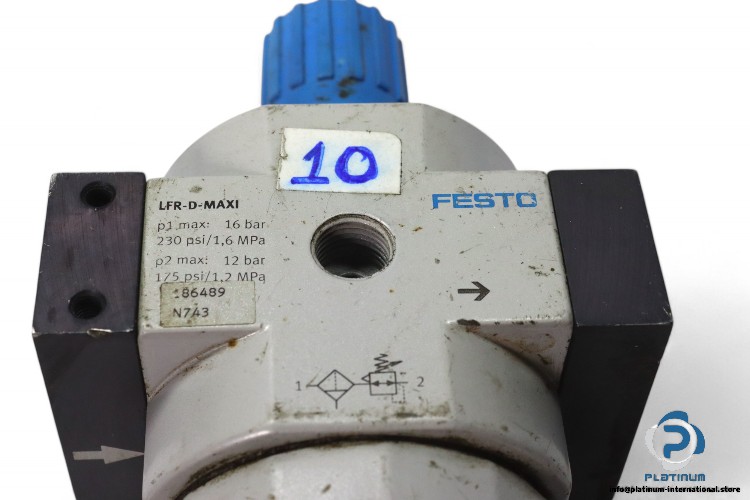

The FESTO Filter Regulator LFR-D-MAXI is a high-performance compressed air regulator designed for precise and reliable air filtration and pressure control. Built with durable die-cast zinc, this regulator is suited for demanding industrial environments and ensures optimal performance across a range of applications.
Technical Specifications:
- Series: D
- Size: MAXI
- Fluid: Compressed Air
- P1 Max.: 16 bar / 230 PSI / 1.6 MPa
- P2 Max.: 12 bar / 175 PSI / 1.2 MPa
- Nominal Flow Rate: 2,600 … 9,500 l/min
- Pressure Regulation Range: 0.5 … 12 bar
- Ambient and Fluid Temperature: 5 / 60 °C
- Port Size: G 1/2 & G 1/4
- Material: Die-Cast Zinc
This filter regulator ensures precise pressure regulation and effective filtration of compressed air, enhancing the performance and longevity of connected pneumatic systems. With its robust construction and adaptable design, it is ideal for a wide range of industrial applications.
