Festo LR-D-Mini Pressure Regulator
Used
In stock1 unitReady to ship
Pressure Regulator
FESTO LR-D-MINI Pressure Regulator ensures precise air pressure control with a 0.5 … 12 bar regulation range and 1500 l/min nominal flow rate. It features a G 1/8 & G 1/4 connection and durable die-cast zinc construction. Comes with the FESTO LOE-D-MINI Air Line Lubricator for improved air quality.1/41/812159625192575AirbarCompressedFestoGLineLOE-D-MiniLR-D-MiniLubricatorpneuPneumaticPressureregulator
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

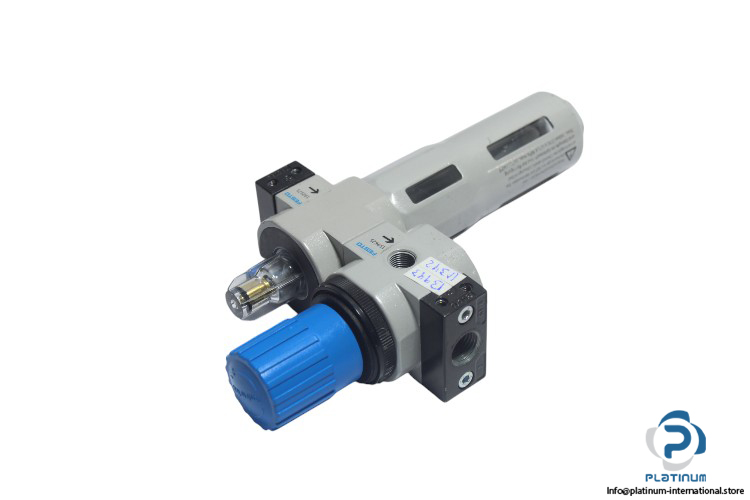

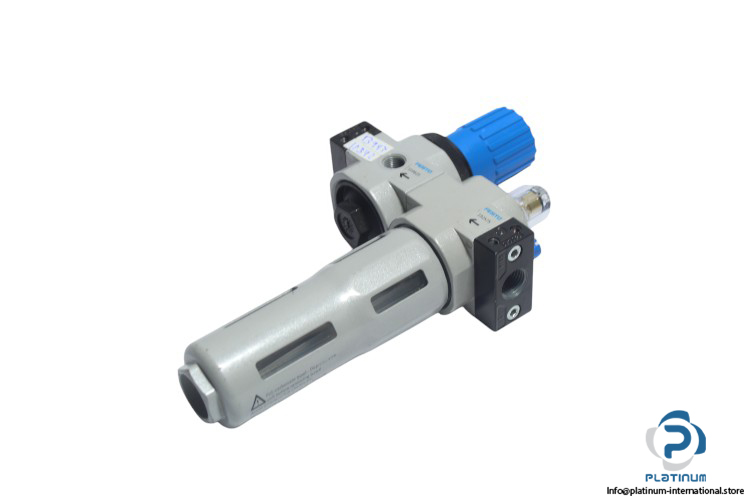

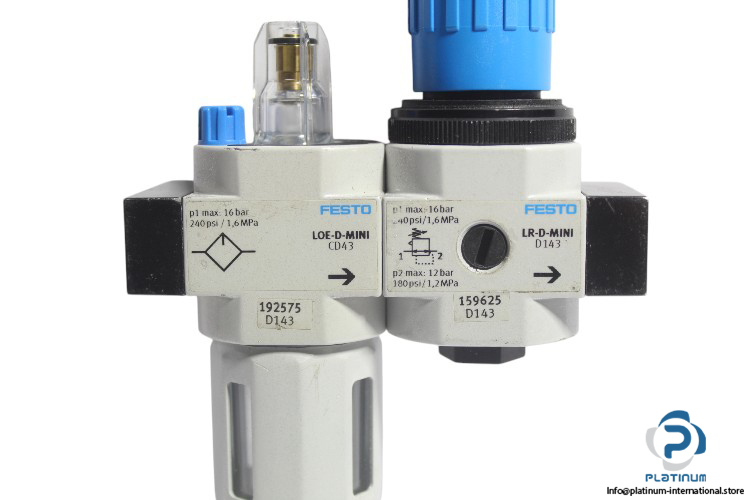

FESTO LR-D-MINI Pressure Regulator with LOE-D-MINI Air Line Lubricator
The FESTO LR-D-MINI Pressure Regulator is a high-performance air pressure control device designed for precise regulation in pneumatic systems. Paired with the FESTO LOE-D-MINI Air Line Lubricator, this combination ensures efficient pressure management and optimized air quality for enhanced system longevity.
Manufacturer: FESTO
Type: Pressure Regulator
Model: LR-D-MINI
Part No.: 159625
| Size | MINI |
| Fluid | Compressed Air / Inert Gas |
| Pressure Regulation Range | 0.5 ... 12 bar |
| Operating Pressure Max. | 16 bar |
| P1 Max. | 16 bar / 240 PSI / 1.6 MPa |
| P2 Max. | 12 bar / 180 PSI / 1.2 MPa |
| Nominal Flow Rate | 1500 l/min |
| Pneumatic Connection | G 1/8 & G 1/4 |
| Material | Die-Cast Zinc |
| Ambient Temperature | -10 ... 60 °C |
| Attachment | FESTO LOE-D-MINI Air Line Lubricator |
| Part No. | 192575 |
| Size | MINI |
| Fluid | Compressed Air / Inert Gas |
| Operating Pressure Max. | 16 bar |
| P1 Max. | 16 bar / 240 PSI / 1.6 MPa |
| Nominal Flow Rate | 3 l/min |
| Oil Capacity Max. | 45 cm³ |
| Material | Die-Cast Zinc |
| Ambient Temperature | -10 ... 60 °C |
