Festo NEBU-M12G5-K-0.5-M12G5 Connecting Cable
New
In stock10 unitsReady to ship
Connecting Cable
Festo NEBU-M12G5-K-0.5-M12G5 industrial connecting cable with 5-pin M12 connectors, 0.5 m length, oil-resistant construction, and voltage range up to 250 V AC/DC.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

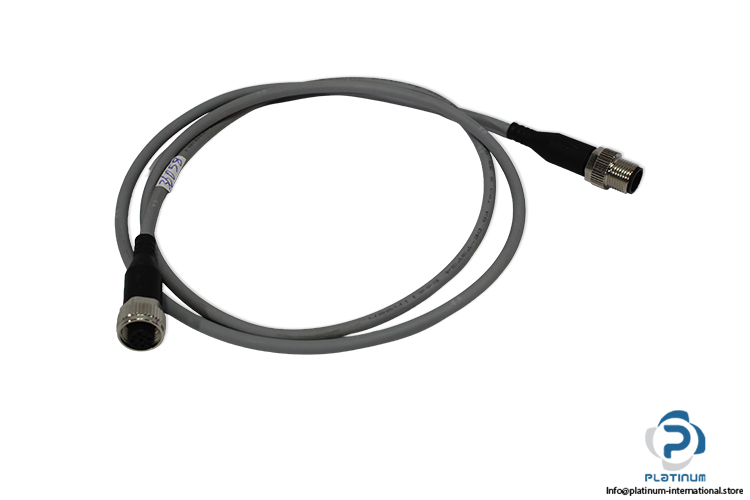

Festo NEBU-M12G5-K-0.5-M12G5 Connecting Cable
The Festo NEBU-M12G5-K-0.5-M12G5 is a high-quality industrial connecting cable designed for reliable signal and power transmission between field devices and controllers. With robust construction and oil-resistant materials, this cable ensures stable performance in demanding industrial environments.
Manufacturer: Festo
Type: Connecting Cable

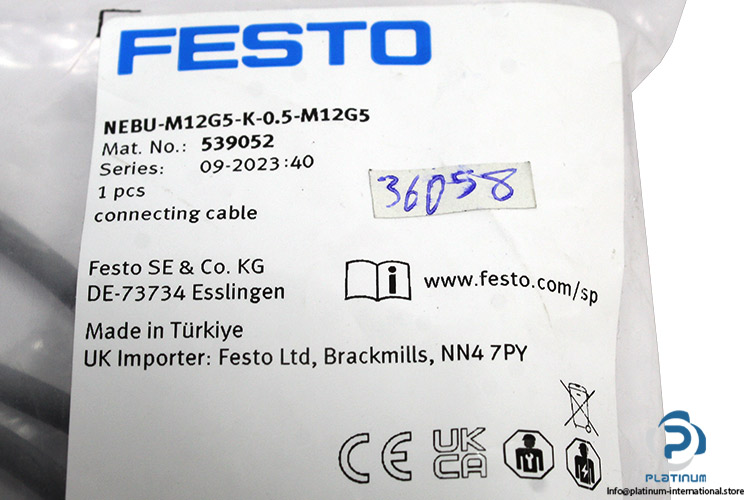

Model: NEBU-M12G5-K-0.5-M12G5
Part No.: 539052
Electrical Connection 1:
Electrical Connection 2:
| Cable Length | 0.5 m |

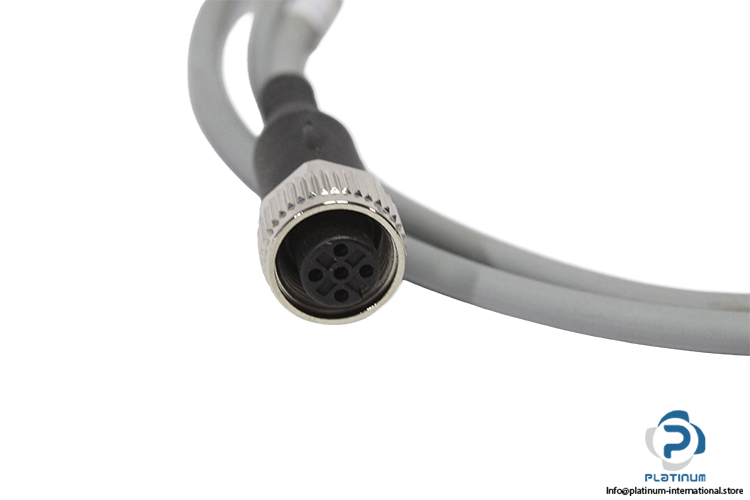

| Connector 1 | 5-pins | Female |

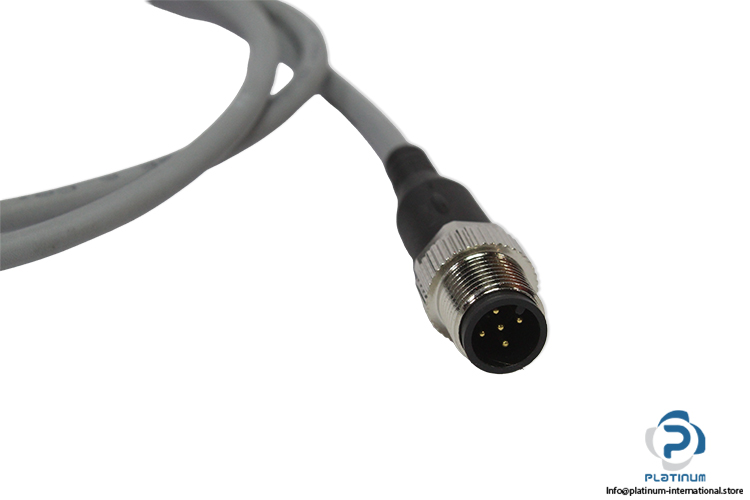

| Connector 2 | 5-pins | Male |
| Function | Field Device Side |
| Design | Round |
| Connection Type | Socket Cable |
| Cable Outlet | Straight, Angled, Angled (Adjustable In Increments Of 15°) |
| Connector System | M12x1, A-Coded To EN 61076-2-101 | M8x1, A-Coded To EN 61076-2-104 | Open End |
| Number Of Connections/Cores | 3 ... 8 |
| Used Connections/Cores | 2 ... 5 |
| Type Of Mounting | Screw-Type Lock |
| Function | Controller Side |
| Design | Round |
| Connection Type | Cable Plugs |
| Operational Voltage Range DC | 0 V ... 250 V |
| Operational Voltage Range AC | 0 V ... 250 V |
| Current Rating At 40°C | 3 A ... 4 A |
| Immunity To Surge | 0.8 kV ... 2.5 kV |
| Special Characteristics | Oil Resistant |
| Ambient Temperature | -25 °C ... 80 °C |
| Material Cable Sheath | PVC | TPE-U (PUR) |
| Cable Sheath Colour | Grey |
| Material Housing | TPE-U (PUR) |
